49740 - Gravely 32" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

32" Deck for Pro-Walk Mower

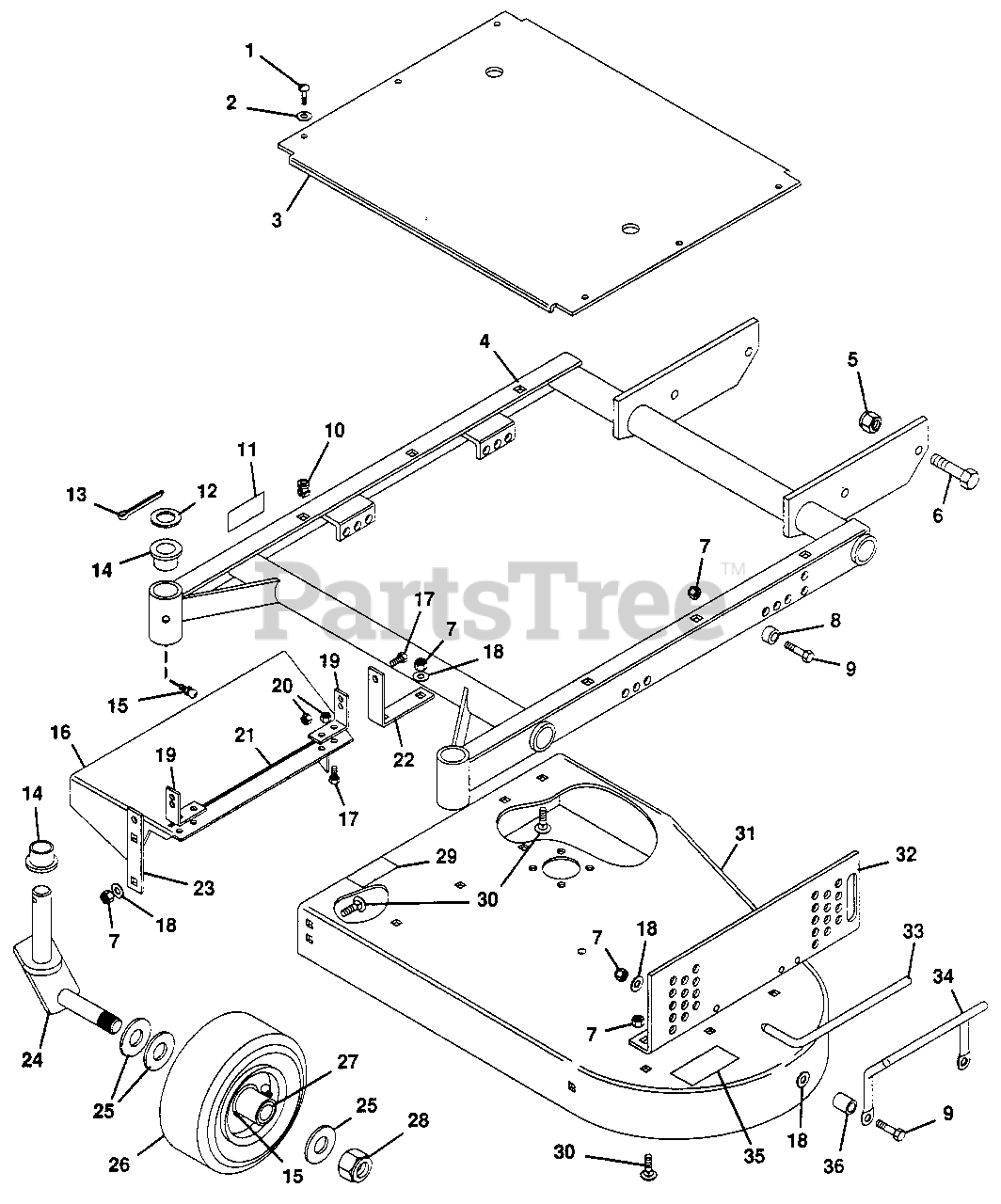

MOWER FRAME Parts Diagram

  • Title

1

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 044428

CVR,BELT 32"PRO MWR
(Superseded to 08826300)

$

$

Not available

4

Gravely 049743

WLDMT,MOWER FRAME
(Superseded to 08837300)

$

$

Not available

5

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

7

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

10

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$

$

Not available

12

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

13

Gravely 103409

PIN-CTR .18X1.50 EXTPRSQCT YZ
(Superseded to 06712800)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

16

Gravely 038952

CHUTE,DISCHARGE-PRO 150- RED
(Superseded to 04908453)

$79.99

$

Usually ships in 4-12 days

0

17

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 038951

BRKT
(Superseded to 08809800)

$

$

Not available

20

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

21

Gravely 049720

WIDTH OF CUT DECAL
(Superseded to 07852100)

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 044434

BRKT
(Superseded to 08825500)

$

$

Not available

23

Gravely 038949

BRKT
(Superseded to 08809600)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 044680

WLDMT, CASTER FORK
(Superseded to 08954653)

$230.99

$

Usually ships in 4-12 days

0

25

Gravely 131017

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06426000)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 045205

WHL 9X3.50
(Superseded to 07130100)

$119.99

$

Usually ships in 4-12 days

0

27

Gravely 037823

BRG-BALL .752X1.50X.50
(Superseded to 05408900)

$20.99

$

In Stock, only 3 left!

0

28

Gravely 456007

NUT-LK-NYL .75-10 YWZC
(Superseded to 06540800)

$6.99

$

Usually ships in 4-12 days

0

29

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$33.99

$

Usually ships in 4-12 days

0

30

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 044430

WLDMT,32" PRO DECK
(Superseded to 08825400)

$176.99

$

Usually ships in 4-12 days

0

32

Gravely 049342

BRKT,MWR SIDE SPRT R.H.
(Superseded to 08836100)

$125.99

$

Usually ships in 4-12 days

0

32

Gravely 049343

BRKT,MWR SIDE SPRT L.H.
(Superseded to 08836200)

$126.99

$

Usually ships in 4-12 days

0

33

Gravely 038514

PIN,MOWER LOCKING
(Superseded to 08875900)

$19.99

$

In Stock, only 1 left!

0

34

Gravely 044507

HANDLE
(Superseded to 08878000)

$61.99

$

Usually ships in 4-12 days

0

35

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

$6.49

$

In Stock, Qty 20+

0

NS

Gravely 043003

DECAL,GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available

NS

Gravely 044529

DECAL,PRO-32
(Superseded to 05212200)

$

$

Not available
