4989 - Troy-Bilt Brush Cutter (SN: H007507 & Below) DRIVE SHAFT AND LOWER HEAD ASSEMBLY Parts Diagram

Brush Cutter

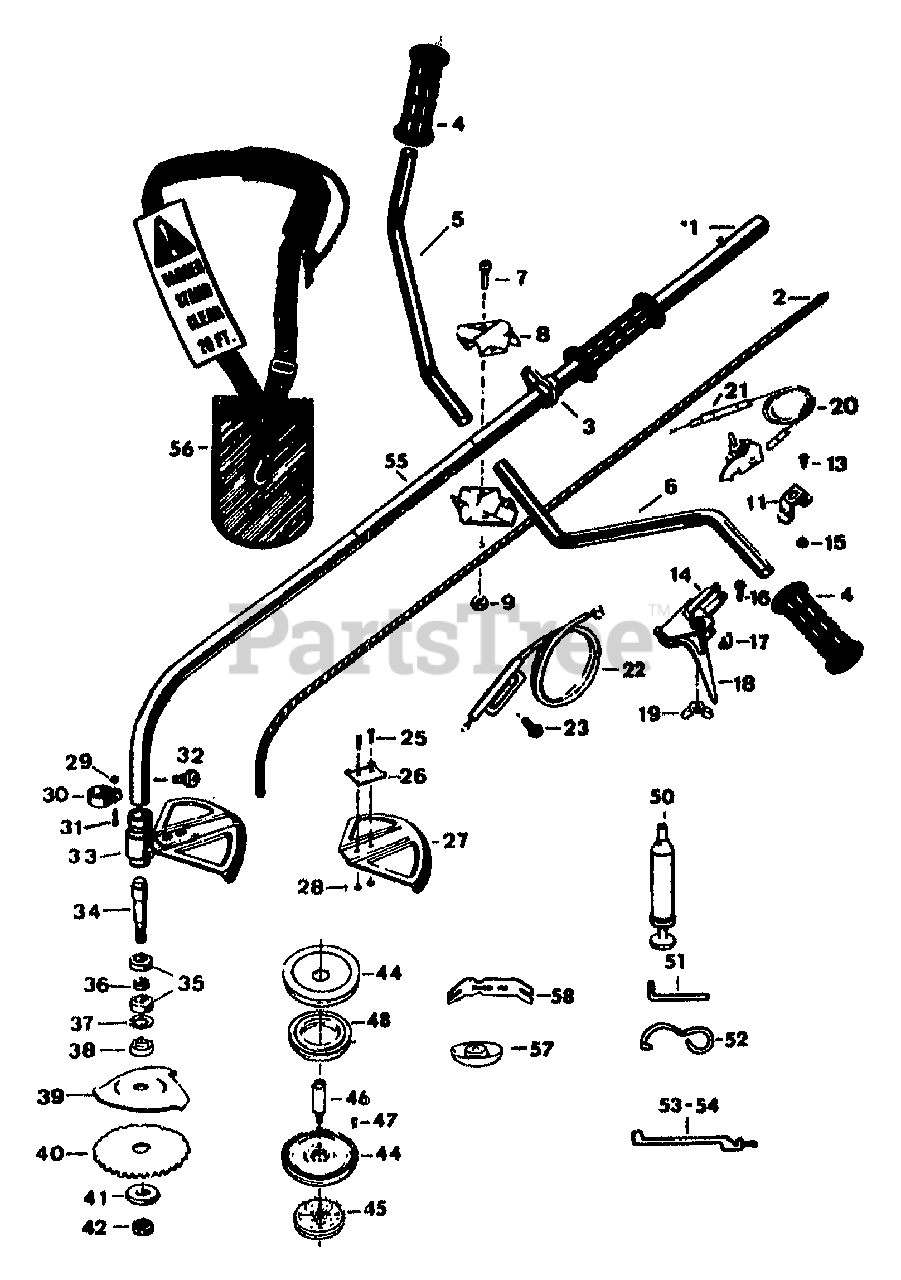

DRIVE SHAFT AND LOWER HEAD ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt H205947

HSG-DRIVESHAFT W/GRIP (INCL. GREASE FITTING)

$

$

Currently unavailable

2

Troy-Bilt H205573

SHAFT-DRIVE 5/16X57"

$

$

Currently unavailable

3

Troy-Bilt H205574

ASSM-SWIVEL

$

$

Currently unavailable

4

Troy-Bilt H204824

GRIP-HANDLEBAR

$

$

Currently unavailable

5

Troy-Bilt H205948

H/BAR-RH W/GRIPS

$

$

Currently unavailable

6

Troy-Bilt H207651

HANDLEBAR-LH W/GRIP

$

$

Currently unavailable

7

0

SCREW, SOCKET HD., 10-32, HANDLEBAR CLAMP

$

$

Not available

8

Troy-Bilt H212094

ASSM-CLAMP (INCL. 7 AND 9)

$

$

Currently unavailable

9

0

NUT, HEX, HANDLEBAR CLAMP

$

$

Not available

?10

Troy-Bilt H209370

CONTROL-ON/OFF SWITCH (INCL. 10-19)

$

$

Currently unavailable

11

Troy-Bilt H209372

SWITCH-ON/OFF (INCL. BRACKET)

$

$

Currently unavailable

?12

Troy-Bilt H209373

ASSM-CLAMP (INCL. 13-15)

$

$

Currently unavailable

13

Troy-Bilt H205594

SCR-PHP M10-32X.75 ZP

$

$

Currently unavailable

14

Troy-Bilt H205596

KIT-CLAMP TRG. H205596

$

$

Currently unavailable

15

Troy-Bilt H205595

NUT-HH M10-32X.125

$

$

Currently unavailable

16

0

SCREW, HEX HD., 10-32X1, THROTTLE CONTROL

$

$

Not available

17

0

SPRING, THROTTLE CONTROL

$

$

Not available

18

Troy-Bilt H205532

ASSM-TRIGG H205532 (INCL. 16,17,19)

$

$

Currently unavailable

19

0

NUT, WING, 10-32, THROTTLE CONTROL

$

$

Not available

20

Troy-Bilt H209278

HARNESS

$

$

Currently unavailable

21

Troy-Bilt H209371

WIRE CONNECTOR & COVER

$

$

Currently unavailable

22

Troy-Bilt H211293

CABLE-THROTTLE

$

$

Currently unavailable

23

Troy-Bilt H211291

SCR W/SERRATED WASHER

$

$

Currently unavailable

?24

Troy-Bilt H207655

ASSM-GRASS/DUST SHIELD (INCL. 25-28)

$

$

Currently unavailable

25

Troy-Bilt H204855

SCR 1/4-20X1/2

$

$

Currently unavailable

26

Troy-Bilt H205985

CLAMP-GRASS/DUST SHIELD

$

$

Currently unavailable

27

Troy-Bilt H207656

ASSM-GRASS/DUST SHIELD

$

$

Currently unavailable

28

Troy-Bilt H205997

NUT-HF/LK 1/4-20 ZP

$

$

Currently unavailable

29

Troy-Bilt H206438

NUT-HF/LK 1/4-20 ZP

$

$

Currently unavailable

30

Troy-Bilt H206408

CLAMP-LOWER HEAD

$

$

Currently unavailable

30

Troy-Bilt H212972

KIT (INCL. 29-31)

$

$

Currently unavailable

31

Troy-Bilt H200734

SCR-HXSKT 1/4-20X.75

$

$

Currently unavailable

32

Troy-Bilt H200725

SCR #10-32X5/16

$

$

Currently unavailable

32

Troy-Bilt H205534

SCR-PHP M10-32X.375 STH ZP

$

$

Currently unavailable

33

Troy-Bilt H206191

ASSM-LWR HEAD W/KICK ST

$

$

Currently unavailable

34

Troy-Bilt H205959

ARBOR-LOWER (SQUARED)

$

$

Currently unavailable

35

Troy-Bilt H205941

BEARING

$

$

Currently unavailable

36

Troy-Bilt H205962

SPACER

$

$

Currently unavailable

37

Troy-Bilt H205417

RING-RETAINING

$

$

Currently unavailable

38

Troy-Bilt H209060

WASHER-CUP

$

$

Currently unavailable

39

Troy-Bilt H212090

BLADE-8" TRIKUT HOFFCO

$

$

Currently unavailable

40

Troy-Bilt H212091

BLADE-8" BRUSHCUTTER

$

$

Currently unavailable

41

Troy-Bilt H209301

WASHER-ARBOR 3/8

$

$

Currently unavailable

42

Troy-Bilt H205961

NUT W/NYLON INSERT 3/8-24

$

$

Currently unavailable

?43

Troy-Bilt H212093

MONOFILAMENT HEAD-2 LINE (INCL. 44-48)

$

$

Currently unavailable

44

Troy-Bilt H211514

HOUSING-MONOFILAMENT HEAD

$

$

Currently unavailable

45

Troy-Bilt H211518

KNOB-RH MONOFILAMENT HEAD

$

$

Currently unavailable

46

Troy-Bilt H211507

ARBOR-MONOFILAMENT HEAD

$

$

Currently unavailable

47

Troy-Bilt H211509

LINE SAVER-MONOFIL HEAD

$

$

Currently unavailable

48

Troy-Bilt H212095

SPOOL-15'H2 #H211524

$

$

Currently unavailable

?49

Troy-Bilt H211510

SPOOL-15'H2 #H211524

$

$

Currently unavailable

50

Troy-Bilt H205600

GUN-GREASE

$

$

Currently unavailable

51

Troy-Bilt H205636

WRENCH-ALLEN 3/16

$

$

Currently unavailable

52

Troy-Bilt H205528

LOWER HEAD TOOL

$

$

Currently unavailable

53

Troy-Bilt H206364

STRAP-TIE 7/8

$

$

Currently unavailable

54

Troy-Bilt H209367

STRAP-TIE 1"

$

$

Currently unavailable

55

Troy-Bilt H207392

DECAL-INST

$

$

Currently unavailable

56

Troy-Bilt H207429

HARNESS W/HIP PAD

$

$

Currently unavailable

57

Troy-Bilt H10745

KIT-GLIDE BALL

$

$

Currently unavailable

58

Troy-Bilt H208984

TEMPLATE-GAUGE(FILING)

$

$

Currently unavailable

?59

Troy-Bilt H212064

DECAL-GW BRUSH CUTTER

$

$

Currently unavailable

?60

Troy-Bilt H211911

DECAL-MADE IN AMERICA

$

$

Currently unavailable
