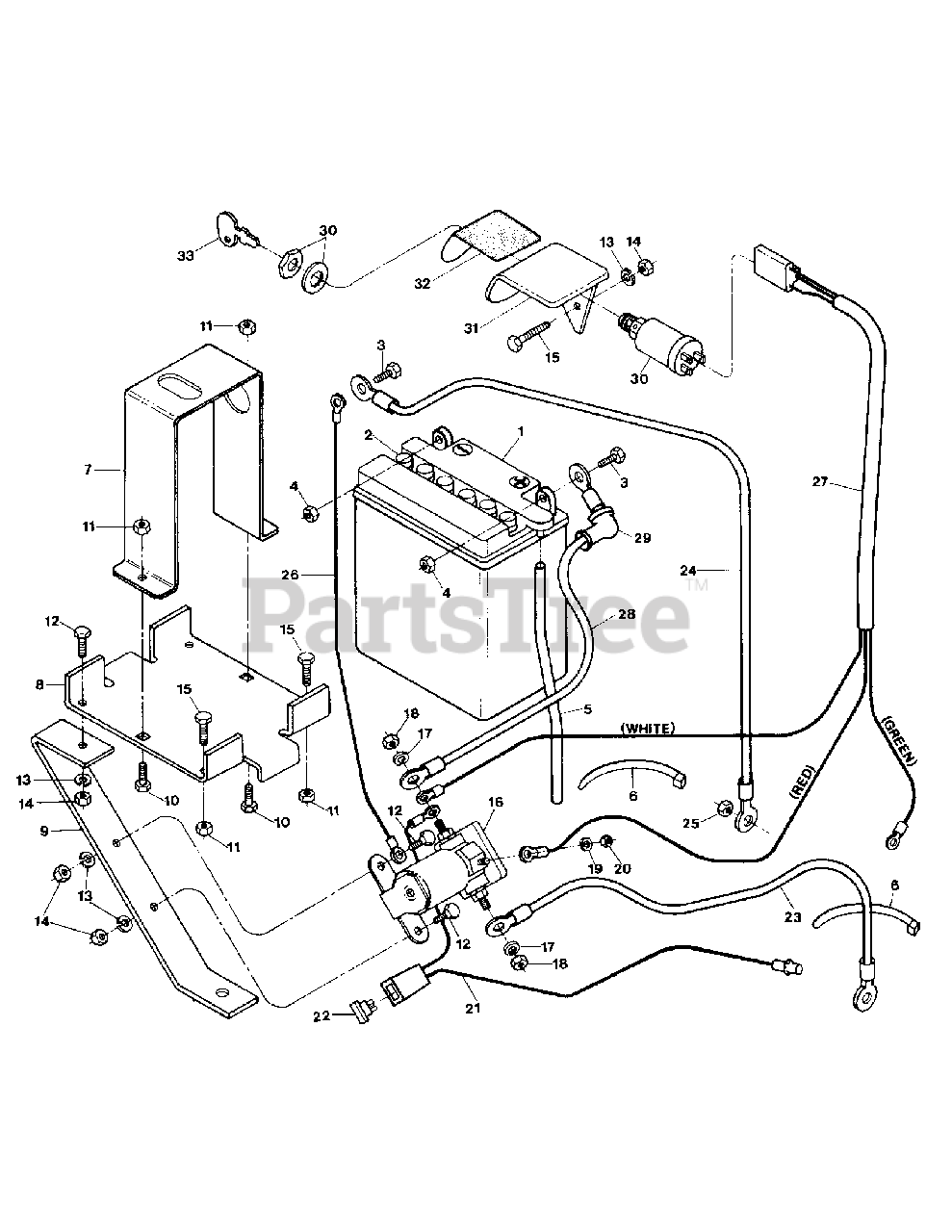

4994 - Troy-Bilt Tuff-Cut I 22" Walk-Behind Mower, 5hp ELECTRIC START Parts Diagram

Tuff-Cut I 22" Walk-Behind Mower, 5hp

ELECTRIC START Parts Diagram

  • Title

1

MTD GW-9234

BATTERY

$

$

Not available

2

MTD GW-9462

CAP-YELLOW

$

$

Not available

3

MTD GW-9775

SCREW HHS 1/4-20 X .

$

$

Not available

4

Troy-Bilt GW-9800

NUT, HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

5

MTD GW-9247

TUBE-VENT BATTERY/HSE

$

$

Not available

6

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

7

MTD GW-20758

CLAMP-BATTERY PNT

$

$

Not available

8

MTD GW-T239720

BRKT-BATT BASE PNT

$

$

Not available

9

MTD GW-T239721

SUPT-BATT BRKT PNT

$

$

Not available

10

Troy-Bilt GW-T71174

SCR-HHCS 1/4-20X1 GR5
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

11

Troy-Bilt GW-T70628

NUT-H/LK 1/4-20
(Superseded to 1110106)

$

$

Not available

12

MTD GW-T70093

SCR-HHCS 1/4-20X5/8 GR5

$

$

Not available

13

Troy-Bilt GW-T70643

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

14

Troy-Bilt GW-T70545

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

15

MTD GW-T70106

SCR-HHCS 1/4-20X1.250 GR 5

$

$

Not available

16

Troy-Bilt GW-1959

KIT-SOL W/HDW (INCL. 17-20)

$109.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-T70646

WASHER-LK .312
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-T70551

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

19

Troy-Bilt GW-T70641

WASHER-LK M10
(Superseded to 1100240)

$

$

Not available

20

MTD GW-T70542

NUT-HEX 3/16-32

$

$

Not available

21

MTD GW-T239748

ASSM-WIRE (INCL. 22)

$

$

Not available

22

MTD GW-T241748

FUSE-5AMP ELEC START

$

$

Not available

23

MTD GW-T239871

CABLE-STARTER MOTOR TO SOLENOID

$

$

Not available

24

MTD GW-T239872

CABLE (-) BATTERY POST TO ENGINE

$

$

Not available

25

Troy-Bilt GW-T70549

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD GW-T239749

WIRE ASSEMBLY, NEGATIVE BATTERY POST TO SUPPORT BRACKET

$

$

Not available

27

MTD GW-T239747

WIRE HARNESS, INCL. RECEPTACLE & THREE WIRES

$

$

Not available

28

MTD GW-T239870

CABLE-POSITIVE BATTERY POST TO SOLENOID ( USE WITH REF. NO. 29)

$

$

Not available

29

Troy-Bilt GW-9255

BOOT

$

$

Not available

30

MTD GW-9230

KEYSWITCH W/KEYS

$

$

Not available

31

MTD GW-T239733

BRKT-KEYSWITCH W/DECAL (INCL. 32)

$

$

Not available

32

MTD GW-T240161

DECAL-IGNITION

$

$

Not available

33

Troy-Bilt GW-9243

KEYS(1 PAIR) FOR SWITCH
(Superseded to GW-9243099)

$

$

Not available
