4995 - Troy-Bilt Tuff-Cut I 22" Walk-Behind Mower, 5hp MAIN ASSEMBLY Parts Diagram

Tuff-Cut I 22" Walk-Behind Mower, 5hp

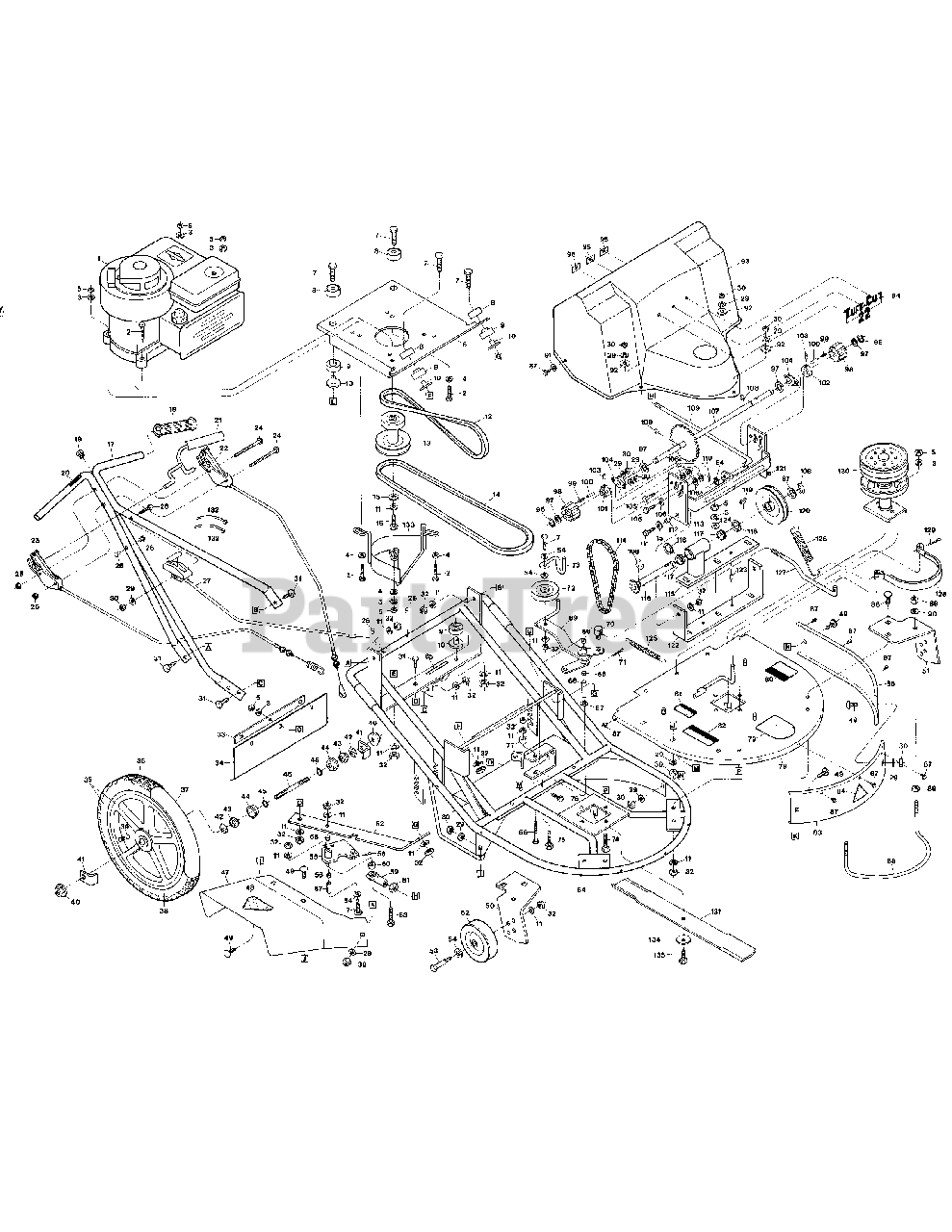

MAIN ASSEMBLY Parts Diagram

  • Title

1

ENGINE, 5HP BRIGGS & STRATTON, STD. RECOIL START, MODEL 130902, TYPE 1221

$

$

Not available

1

ENGINE, 5HP BRIGGS & STRATTON, ELECTRIC START, MODEL 130907, TYPE 1220

$

$

Not available

2

Troy-Bilt GW-T70170

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-T70646

WASHER-LK .312
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

MTD GW-T70701

WASHER-.88X312X.08

$

$

Not available

5

Troy-Bilt GW-T70549

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-T239688

BASE-ENGINE

$

$

Currently unavailable

7

Troy-Bilt GW-T70258

SCR-HH 3/8-16X2.0 G5
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

8

MTD GW-T200234

REBOUND MOUNT-24"

$

$

Not available

9

MTD GW-T200236

LOAD CARRYING MOUNT-24"

$

$

Not available

10

Troy-Bilt GW-T200237

TUB-SPACER 24"

$

$

Currently unavailable

11

Troy-Bilt GW-T70649

WASHER-LK .375
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

12

MTD GW-T239661

TRACTION-V BELT

$

$

Not available

13

Troy-Bilt GW-T239670

PULLEY-ENGINE

$

$

Currently unavailable

14

MTD GW-T236321

BLADE-V BELT

$

$

Not available

15

Troy-Bilt GW-T70703

WASHER-1.0X.438X.104
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

16

MTD GW-T70292

SCR-HH 3/8-24X1.25 GR5

$

$

Not available

17

MTD GW-T1000005

ASSM-HANDLEBAR 22" PUSH (INCL. 18 & 20)

$

$

Not available

18

Troy-Bilt GW-T239797

GRIP-HANDLEBAR

$

$

Not available

19

MTD GW-T7505

PLUG-METAL CAP

$

$

Not available

20

Troy-Bilt GW-T240263

DECAL-STARTING INST

$

$

Currently unavailable

21

Troy-Bilt GW-T239739

BAIL WELDMENT-SELF PROP

$

$

Currently unavailable

22

Troy-Bilt GW-T239737

CABLE-WHEEL DRIVE (CABLE & LATCH)

$

$

Currently unavailable

23

Troy-Bilt GW-T239738

CABLE-BLADE DRIVE (CABLE & LATCH)
(Superseded to GW-T239738P)

$144.99

$

Usually ships in 3-6 days

0

24

MTD GW-T239743

SCR-PHP M10-24X4.0

$

$

Not available

25

MTD GW-T70599

NUT-HEX LOCK #10-24 PL
(Superseded to GW-92001)

$

$

Not available

26

MTD GW-T240175

PLUG-HOLE (RECOIL START ENGINES ONLY)

$

$

Not available

27

Troy-Bilt GW-T239735

SPEED CONTROL-ENGINE (CABLE & CONTROL)

$

$

Currently unavailable

28

MTD GW-T70111

SCR 1/4-20X1.5 PL CSHH

$

$

Not available

29

Troy-Bilt GW-T70643

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

Troy-Bilt GW-T70545

NUT-HEX 1/4-20
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt GW-T70226

SCR-HH 3/8-16X.75 G5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

32

Troy-Bilt GW-T70553

NUT-HEX 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

33

MTD GW-T239687

BRKT-PROT TRAILER PNT

$

$

Not available

34

MTD GW-T239677

TRAILER-MOWER

$

$

Not available

35

MTD GW-T239691

ASSM-TIRE & WHEEL (INCL. 36-40, 42-46)
(Superseded to GW-T242397)

$

$

Not available

36

MTD GW-T239806

TIRE-16 X 2.125

$

$

Not available

37

MTD GW-T239808

TUBE-16"

$

$

Not available

38

MTD GW-T239804

ASSM-16" RIM

$

$

Not available

39

MTD GW-T3823

CAP-VALVE

$

$

Not available

40

MTD GW-T239937

NUT-HF/LK 3/8-24 WHIZ

$

$

Not available

41

MTD GW-T239697

TAB-WHEEL LOCK 22"

$

$

Not available

42

MTD GW-T239801

NUT-LOCK 3/8-24 PL

$

$

Not available

43

Troy-Bilt GW-T239798

NUT-ACORN 3/8-24

$

$

Currently unavailable

44

Troy-Bilt GW-T239800

CUP-WHEEL

$

$

Currently unavailable

45

Troy-Bilt GW-T239803

BEARING-WHEEL

$

$

Currently unavailable

46

MTD GW-T239802

AXLE-WHEEL

$

$

Not available

47

MTD GW-T239712

CHUTE-DISCHARGE W/DECAL

$

$

Not available

48

MTD GW-T214744

DECAL-BLADE WARNING

$

$

Not available

49

MTD GW-T70433

SCR-CARR 1/4-20X.375

$

$

Not available

50

Troy-Bilt GW-T239621

HANGER-RT WHL PNT

$

$

Currently unavailable

51

MTD GW-T239622

HANGER-LT WHL PNT

$

$

Not available

52

Troy-Bilt GW-T239686

ASSM-TIRE&WHEEL 6X1.50
(Superseded to GW-80163)

$31.99

$

In Stock, only 1 left!

0

53

Troy-Bilt GW-T25068

SCR-SHLDR 3/8-16X1.406

$

$

Currently unavailable

54

Troy-Bilt GW-T70687

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt GW-T239727

ASSM-BELLCRANK W/BUSHING (INCL. TWO BEARINGS REF. NO. 56)

$

$

Currently unavailable

56

MTD GW-T27503

BEARING-SLEEVE

$

$

Not available

57

Troy-Bilt GW-T239725

TUBE-BELL CRANK

$

$

Currently unavailable

58

MTD GW-T70741

PIN-COTTER .09X.75

$

$

Not available

59

Troy-Bilt GW-T24542

JOINT-BALL

$

$

Currently unavailable

60

Troy-Bilt GW-T231318

SPACER

$

$

Currently unavailable

61

Troy-Bilt GW-T70576

NUT-HEX/JAM 3/8-24
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

62

Troy-Bilt GW-T239728

STRAP-BELLCRANK

$

$

Currently unavailable

63

Troy-Bilt GW-T70254

SCR-HH 3/8-16X1.75 GR5

$

$

Currently unavailable

64

Troy-Bilt GW-T239680

WELDMENT-FRAME 22" (INCL. REF. NO. 65)

$

$

Currently unavailable

65

MTD GW-T228886

DECAL-CPSC COMPLIANCE

$

$

Not available

66

Troy-Bilt GW-T71238

SCR-HH 3/8-16X4.5 G5
(Superseded to 710-0693)

$13.99

$

In Stock, only 2 left!

0

67

MTD GW-T13235

SHIM-WASHER

$

$

Not available

68

MTD GW-T239706

TUBE-PIVOT

$

$

Not available

69

MTD GW-T239700

ARM-IDLER W/BUSHINGS (INCL. TWO BEARINGS REF. NO. 56)

$

$

Not available

70

MTD GW-T213158

TRUNNION

$

$

Not available

71

Troy-Bilt GW-T70742

PIN-COTTER .094X1.0

$

$

Currently unavailable

72

MTD GW-T230178

PULLEY-IDLER

$

$

Not available

73

MTD GW-T241651

GUIDE-BLADE BELT

$

$

Not available

74

Troy-Bilt GW-T70151

SCR-HH 5/16-18X1.0 G5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

75

Troy-Bilt GW-T70175

BOLT-HH 5/16-18 X 2 G5
(Superseded to 710-3013)

$4.49

$

In Stock, only 2 left!

0

76

Troy-Bilt GW-T70143

SCR-HHC 5/16-18X.75 GR 5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

77

MTD GW-T241439

SPACER-.625X.387X1.0

$

$

Not available

78

Troy-Bilt GW-T239689

ASSM-DECK TOP 22" (INCL. 79-82)

$

$

Currently unavailable

79

MTD GW-T240149

DECAL-TUFFCUT LOGO

$

$

Not available

80

MTD GW-T234513

DECAL-WARNING PROCEDURES

$

$

Not available

81

MTD GW-T240226

DECAL-CAUTION BELT COVER

$

$

Not available

82

MTD GW-T233160

DECAL-DANGER GUARD

$

$

Not available

83

Troy-Bilt GW-T239629

WRAP-FRONT 22" PNT (INCL. 84)

$

$

Currently unavailable

84

Troy-Bilt GW-T240148

DECAL-OPEI

$

$

Currently unavailable

85

Troy-Bilt GW-T239628

WRAP-LH PNT

$

$

Currently unavailable

86

Troy-Bilt GW-T70451

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

87

MTD GW-T239890

SCR-HW M10-16X.75 SELT DR

$

$

Not available

88

MTD GW-T239625

BUMPER-22" PNT

$

$

Not available

89

Troy-Bilt GW-T70563

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

90

Troy-Bilt GW-T70655

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

91

Troy-Bilt GW-T70697

WASHER-#10 TYPE B PLN
(Superseded to 736-0931)

$4.49

$

In Stock, only 1 left!

0

92

Troy-Bilt GW-T70699

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

93

Troy-Bilt GW-T240088

KIT-SVC 22" BELT COVER

$

$

Currently unavailable

94

MTD GW-T240119

PLATE-NAME 22"

$

$

Not available

95

Troy-Bilt GW-T240206

CLIP, NAMEPLATE MOUNTING

$

$

Currently unavailable

96

Troy-Bilt GW-T24546

RING-HEAVY EXT .575 ID
(Superseded to 916-0171)

$5.49

$

Usually ships in 3-6 days

0

97

MTD GW-T11412

WASHER-1.0X.632X.03

$

$

Not available

98

MTD GW-T239761

ROLLER-DRIVE

$

$

Not available

99

Troy-Bilt GW-T239841

SPRING-DOWEL RETURN

$

$

Not available

100

MTD GW-T239840

PIN-DOWEL 1/4"

$

$

Not available

101

Troy-Bilt GW-T239633

RATCHET-RH MACH

$

$

Not available

102

Troy-Bilt GW-T239634

RATCHET-LH MACH

$

$

Currently unavailable

103

Troy-Bilt GW-T70762

PIN-ROLL 3/16 X 1.5
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

104

Troy-Bilt GW-T239659

BEARING

$

$

Currently unavailable

105

Troy-Bilt GW-T70097

SCR-HH 1/4-20X.75 G5
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

106

Troy-Bilt GW-T70683

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

106A

Troy-Bilt GW-T70683

WASHER-FLAT 1/4 SAE (SAME AS REF. NO.106 USED FOR SHIMMING, AS REQUIRED)
(Superseded to 936-3020)

$

$

Not available

107

Troy-Bilt GW-T239664

WELD-AXLE 22" DRIVE SHAFT

$

$

Currently unavailable

108

Troy-Bilt GW-T212726

RING-RETAINING "E"
(Superseded to 716-0106)

$3.99

$

In Stock, only 3 left!

0

109

MTD GW-T239731

ROD-WHEEL DR LINK 22"

$

$

Not available

110

MTD GW-T9678

CLIP-HITCH PIN #13 PL

$

$

Not available

111

Troy-Bilt GW-T70235

SCR-HH 3/8-16X1.0 G5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

112

Troy-Bilt GW-T236141

SPACER-.390X.630X.281
(Superseded to GW-94006)

$

$

Not available

113

Troy-Bilt GW-T239698

ASSM-TRACTION BRKT

$

$

Currently unavailable

114

MTD GW-T238343

CHAIN #35-46 PITCHES

$

$

Not available

115

Troy-Bilt GW-T239658

BRKT-JACKSFT MTG PNT

$

$

Currently unavailable

116

Troy-Bilt GW-T239668

JACKSFT-WELD HEAT TREAT

$

$

Currently unavailable

117

Troy-Bilt GW-T17320

BEARING
(Superseded to 741-0145)

$39.99

$

In Stock, only 2 left!

0

118

Troy-Bilt GW-T1764

RING-RETAINING EXTERNAL
(Superseded to GW-97016)

$

$

Not available

119

Troy-Bilt GW-T71413

KEY-HI PRO 1/8X1/2

$

$

Currently unavailable

120

Troy-Bilt GW-T240086

PULLEY-WHEEL DRIVE

$

$

Currently unavailable

121

MTD GW-T70048

SCR-SET 1/4-20X1/4

$

$

Not available

122

MTD GW-T239654

BRKT-U CHANNEL PNT

$

$

Not available

123

MTD GW-T71412

PIN-ROLL 1/4X1/2

$

$

Not available

124

MTD GW-T2679

WASHER

$

$

Not available

125

MTD GW-T239734

SPRING-WHEEL OR RETURN

$

$

Not available

126

MTD GW-T239750

SPRING-SPINDLE BRAKE

$

$

Not available

127

MTD GW-T239708

ROD-BRAKE ENGAGEMENT

$

$

Not available

128

MTD GW-T229589

BRAKE BAND & LINING

$

$

Not available

129

Troy-Bilt GW-T70721

PIN-COTTER .125X.750

$

$

Currently unavailable

130

MTD GW-T239693

KIT-SPINDLE TUFFCUT I&II
(Superseded to GW-80137)

$

$

Not available

131

Troy-Bilt GW-T239632

BLADE-22" TUFFCUT NLA ETION

$

$

Currently unavailable

132

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

133

MTD GW-T239715

GUIDE-BELT PNT

$

$

Not available

134

Troy-Bilt GW-T241589

WASHER-BELLEVILLE 3/8

$

$

Currently unavailable

135

Troy-Bilt GW-T241326

SCR-HH 3/8-24 X 1.5" G8

$

$

Currently unavailable
