4998 - Troy-Bilt Tuff-Cut I 22" Walk-Behind Mower, 5hp MAIN ASSEMBLY Parts Diagram

Tuff-Cut I 22" Walk-Behind Mower, 5hp

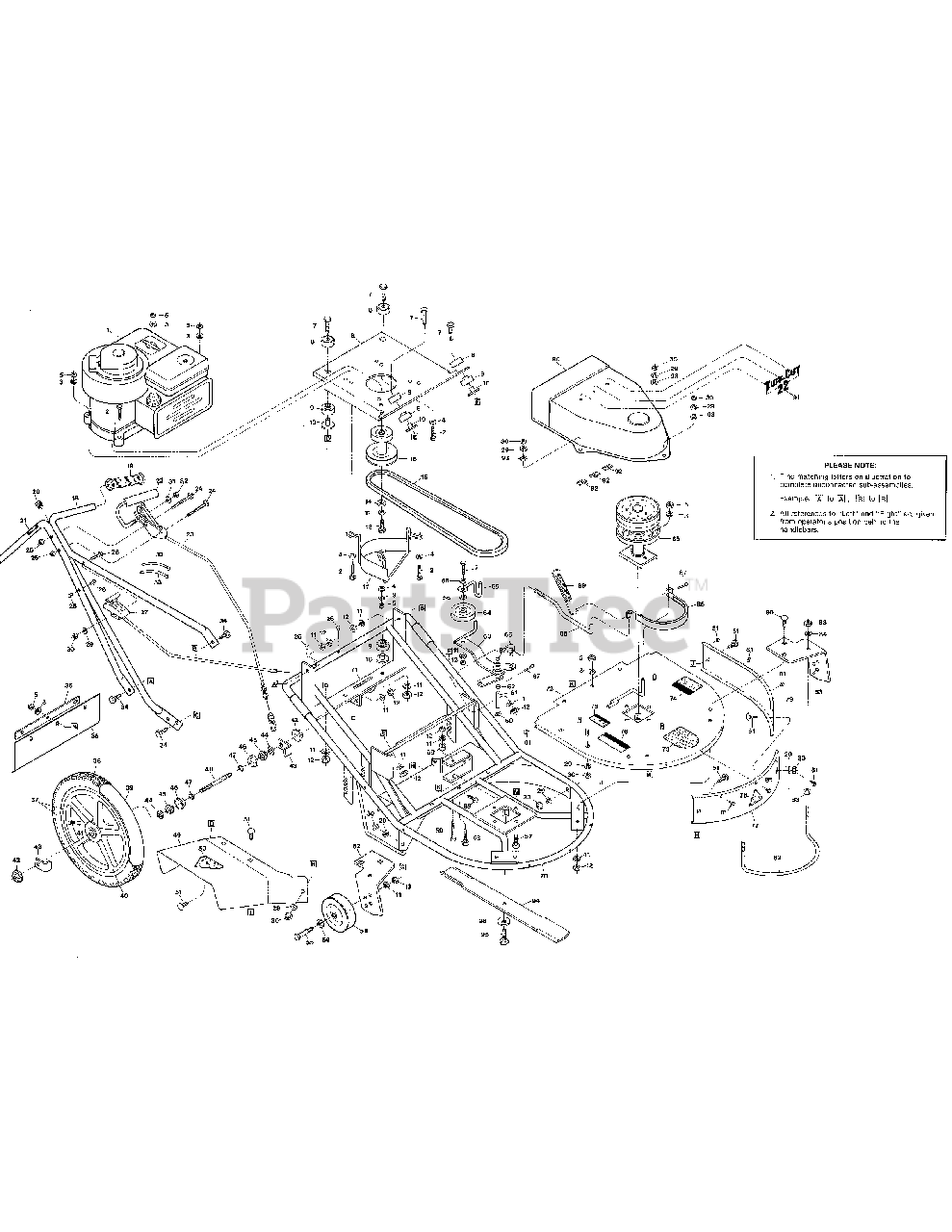

MAIN ASSEMBLY Parts Diagram

  • Title

1

ENGINE, 5HP BRIGGS & STRATTON, STD RECOIL START,MODEL 130902, TYPE 1221

$

$

Not available

2

Troy-Bilt GW-T70170

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-T70646

WASHER-LK .312
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

MTD GW-T70701

WASHER-.88X312X.08

$

$

Not available

5

Troy-Bilt GW-T70549

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-T239688

BASE-ENGINE

$

$

Currently unavailable

7

Troy-Bilt GW-T70258

SCR-HH 3/8-16X2.0 G5
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

8

MTD GW-T200234

REBOUND MOUNT-24"

$

$

Not available

9

MTD GW-T200236

LOAD CARRYING MOUNT-24"

$

$

Not available

10

Troy-Bilt GW-T200237

TUB-SPACER 24"

$

$

Currently unavailable

11

Troy-Bilt GW-T70649

WASHER-LK .375
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-T70553

NUT-HEX 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

13

MTD GW-T70292

SCR-HH 3/8-24X1.25 GR5

$

$

Not available

14

Troy-Bilt GW-T70703

WASHER-1.0X.438X.104
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

15

MTD GW-T236321

BLADE-V BELT

$

$

Not available

16

Troy-Bilt GW-T239670

PULLEY-ENGINE

$

$

Currently unavailable

17

MTD GW-T239715

GUIDE-BELT PNT

$

$

Not available

18

MTD GW-T1000005

ASSM-HANDLEBAR 22" PUSH (INCL. 19 & 21)

$

$

Not available

19

Troy-Bilt GW-T239797

GRIP-HANDLEBAR

$

$

Not available

20

MTD GW-T7505

PLUG-METAL CAP

$

$

Not available

21

Troy-Bilt GW-T240263

DECAL-STARTING INST

$

$

Currently unavailable

22

Troy-Bilt GW-T239795

BAIL WELDMENT-PUSH MOWER

$

$

Currently unavailable

23

Troy-Bilt GW-T239738

CABLE-BLADE DRIVE (CABLE & LATCH)
(Superseded to GW-T239738P)

$144.99

$

Usually ships in 3-6 days

0

24

MTD GW-T239794

SCR-PHP M10-24X3.0

$

$

Not available

25

MTD GW-T70599

NUT-HEX LOCK #10-24 PL
(Superseded to GW-92001)

$

$

Not available

26

MTD GW-T240175

PLUG-HOLE

$

$

Not available

27

Troy-Bilt GW-T239735

SPEED CONTROL-ENGINE (CABLE & CONTROL)

$

$

Currently unavailable

28

MTD GW-T70111

SCR 1/4-20X1.5 PL CSHH

$

$

Not available

29

Troy-Bilt GW-T70643

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

Troy-Bilt GW-T70545

NUT-HEX 1/4-20
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt GW-T70685

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt GW-T70629

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

34

Troy-Bilt GW-T70226

SCR-HH 3/8-16X.75 G5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

35

MTD GW-T239687

BRKT-PROT TRAILER PNT

$

$

Not available

36

MTD GW-T239677

TRAILER-MOWER

$

$

Not available

37

MTD GW-T239691

ASSM-TIRE & WHEEL (INCL. 38-42,44-48)
(Superseded to GW-T242397)

$

$

Not available

38

MTD GW-T239806

TIRE-16 X 2.125

$

$

Not available

39

MTD GW-T239808

TUBE-16"

$

$

Not available

40

MTD GW-T239804

ASSM-16" RIM

$

$

Not available

41

MTD GW-T3823

CAP-VALVE

$

$

Not available

42

MTD GW-T239937

NUT-HF/LK 3/8-24 WHIZ

$

$

Not available

43

MTD GW-T239697

TAB-WHEEL LOCK 22"

$

$

Not available

44

MTD GW-T239801

NUT-LOCK 3/8-24 PL

$

$

Not available

45

Troy-Bilt GW-T239798

NUT-ACORN 3/8-24

$

$

Currently unavailable

46

Troy-Bilt GW-T239800

CUP-WHEEL

$

$

Currently unavailable

47

Troy-Bilt GW-T239803

BEARING-WHEEL

$

$

Currently unavailable

48

MTD GW-T239802

AXLE-WHEEL

$

$

Not available

49

MTD GW-T239712

CHUTE-DISCHARGE W/DECAL (INCL. 50)

$

$

Not available

50

MTD GW-T214744

DECAL-BLADE WARNING

$

$

Not available

51

MTD GW-T70433

SCR-CARR 1/4-20X.375

$

$

Not available

52

Troy-Bilt GW-T239621

HANGER-RT WHL PNT

$

$

Currently unavailable

53

MTD GW-T239622

HANGER-LT WHL PNT

$

$

Not available

54

Troy-Bilt GW-T239686

ASSM-TIRE&WHEEL 6X1.50
(Superseded to GW-80163)

$31.99

$

In Stock, only 1 left!

0

55

Troy-Bilt GW-T25068

SCR-SHLDR 3/8-16X1.406

$

$

Currently unavailable

56

Troy-Bilt GW-T70687

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt GW-T70151

SCR-HH 5/16-18X1.0 G5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

58

MTD GW-T70166

SCR-HH 5/16-18X1.625 G5

$

$

Not available

59

Troy-Bilt GW-T71238

SCR-HH 3/8-16X4.5 G5
(Superseded to 710-0693)

$13.99

$

In Stock, only 2 left!

0

60

MTD GW-T13235

SHIM-WASHER

$

$

Not available

61

MTD GW-T239706

TUBE-PIVOT

$

$

Not available

62

MTD GW-T27503

BEARING-SLEEVE

$

$

Not available

63

MTD GW-T239700

ARM-IDLER W/BUSHINGS (INCL. TWO BEARINGS, #62)

$

$

Not available

64

MTD GW-T230178

PULLEY-IDLER

$

$

Not available

65

MTD GW-T241651

GUIDE-BLADE BELT

$

$

Not available

66

MTD GW-T213158

TRUNNION

$

$

Not available

67

Troy-Bilt GW-T70742

PIN-COTTER .094X1.0

$

$

Currently unavailable

68

MTD GW-T241439

SPACER-.625X.387X1.0

$

$

Not available

69

Troy-Bilt GW-T70143

SCR-HHC 5/16-18X.75 GR 5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt GW-T239680

WELDMENT-FRAME 22" (INCL. 71)

$

$

Currently unavailable

71

MTD GW-T228886

DECAL-CPSC COMPLIANCE

$

$

Not available

72

Troy-Bilt GW-T239689

ASSM-DECK TOP 22" (INCL. 73-76)

$

$

Currently unavailable

73

MTD GW-T240149

DECAL-TUFFCUT LOGO

$

$

Not available

74

MTD GW-T234513

DECAL-WARNING PROCEDURES

$

$

Not available

75

MTD GW-T240226

DECAL-CAUTION BELT COVER

$

$

Not available

76

MTD GW-T233160

DECAL-DANGER GUARD

$

$

Not available

77

Troy-Bilt GW-T239629

WRAP-FRONT 22" PNT (INCL. 78)

$

$

Currently unavailable

78

Troy-Bilt GW-T240148

DECAL-OPEI

$

$

Currently unavailable

79

Troy-Bilt GW-T239628

WRAP-LH PNT

$

$

Currently unavailable

80

Troy-Bilt GW-T70451

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

81

MTD GW-T239890

SCR-HW M10-16X.75 SELT DR

$

$

Not available

82

MTD GW-T239625

BUMPER-22" PNT

$

$

Not available

83

Troy-Bilt GW-T70563

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

84

Troy-Bilt GW-T70655

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

85

MTD GW-T239693

KIT-SPINDLE TUFFCUT I&II
(Superseded to GW-80137)

$

$

Not available

86

MTD GW-T229589

BRAKE BAND & LINING (W/LINING)

$

$

Not available

87

Troy-Bilt GW-T70721

PIN-COTTER .125X.750

$

$

Currently unavailable

88

MTD GW-T239708

ROD-BRAKE ENGAGEMENT

$

$

Not available

89

MTD GW-T239750

SPRING-SPINDLE BRAKE

$

$

Not available

90

Troy-Bilt GW-T239684

COVER-BELT 22"PUSH MOWER

$

$

Currently unavailable

91

MTD GW-T240119

PLATE-NAME 22"

$

$

Not available

92

Troy-Bilt GW-T240208

RING-PUSH ON

$

$

Currently unavailable

93

Troy-Bilt GW-T70699

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

94

Troy-Bilt GW-T239632

BLADE-22" TUFFCUT NLA ETION

$

$

Currently unavailable

95

Troy-Bilt GW-T241326

SCR-HH 3/8-24 X 1.5" G8

$

$

Currently unavailable

96

Troy-Bilt GW-T241589

WASHER-BELLEVILLE 3/8

$

$

Currently unavailable
