49C877-0001-G1 - Briggs & Stratton Vertical Engine Wire Harness, Electronic Control Module Parts Diagram

Vertical Engine

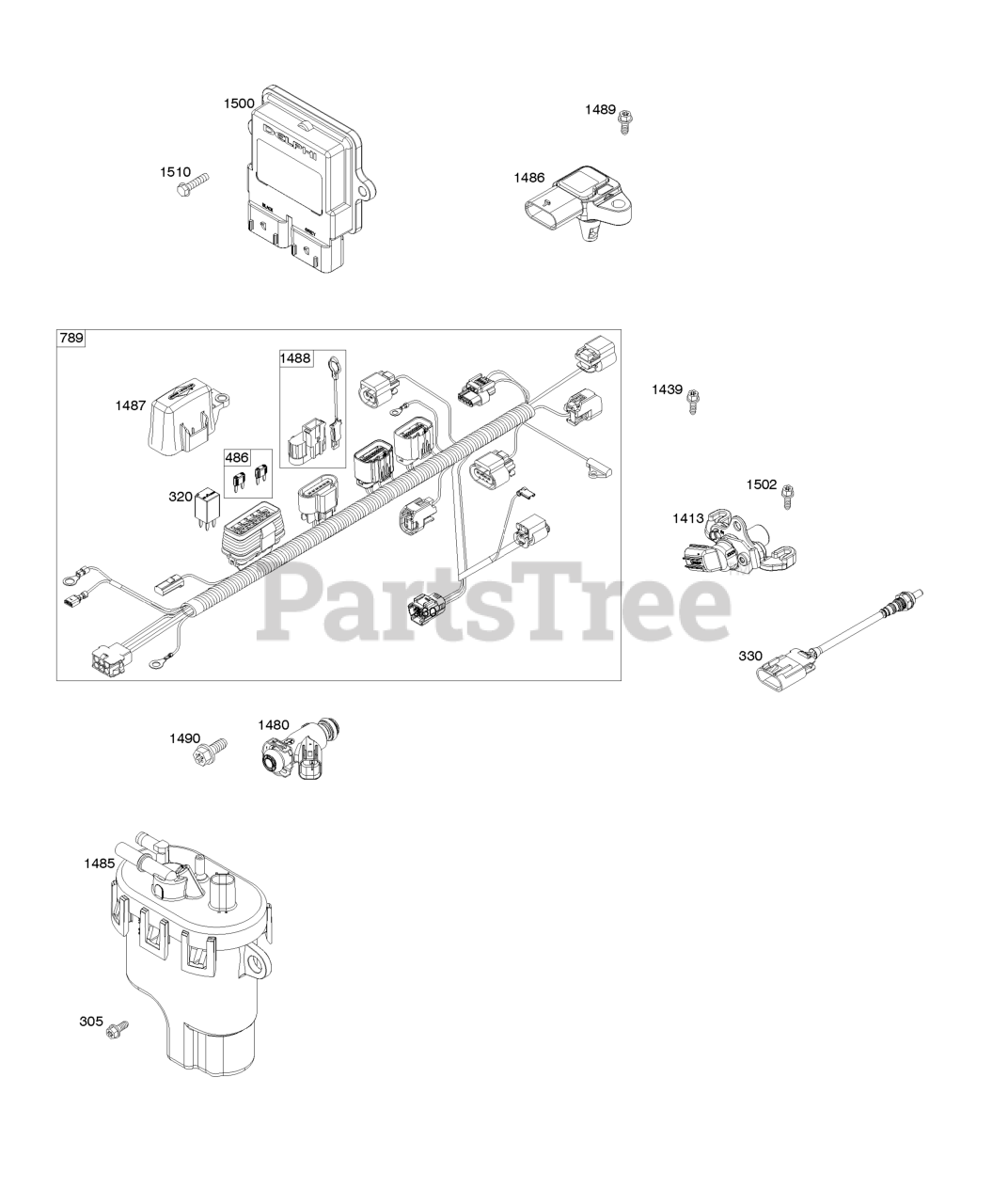

Wire Harness, Electronic Control Module Parts Diagram

  • Title

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 9

0

320

Briggs & Stratton 593902

RELAY(S)

$48.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 593870

SENSOR, Oxygen

$149.99

$

Usually ships in 2-12 days

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 596381

Harness-Wiring

$295.99

$

Usually ships in 2-12 days

0

1413

Briggs & Stratton 593889

SENSOR, Speed
(Superseded to 84006538)

$45.99

$

Usually ships in 2-12 days

0

1439

Briggs & Stratton 592577

SCREW

Note: (Thermistor Wire Assembly)

$3.99

$

In Stock, only 1 left!

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

Note: (Temperature/Manifold Air Pressure)

$141.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 593900

COVER, Fuse

$13.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$13.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 691127

SCREW

Note: (TEMP/MAP Sensor)

$4.49

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 691127

SCREW

Note: (Fuel Injector)

$4.49

$

In Stock, only 2 left!

0

1500

Briggs & Stratton 593878

MODULE, Electronic Control
(Superseded to 846484)

Note: (Not Programmed)

$288.99

$

Usually ships in 2-12 days

0

1502

Briggs & Stratton 594363

SCREW

Note: (Speed Sensor)

$3.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 593848

SCREW

Note: (Electronic Control Module)

$4.49

$

Usually ships in 2-12 days

0
