49C877-0004-G1 - Briggs & Stratton Vertical Engine Blower Housing and Air Cleaner Group Parts Diagram

Vertical Engine

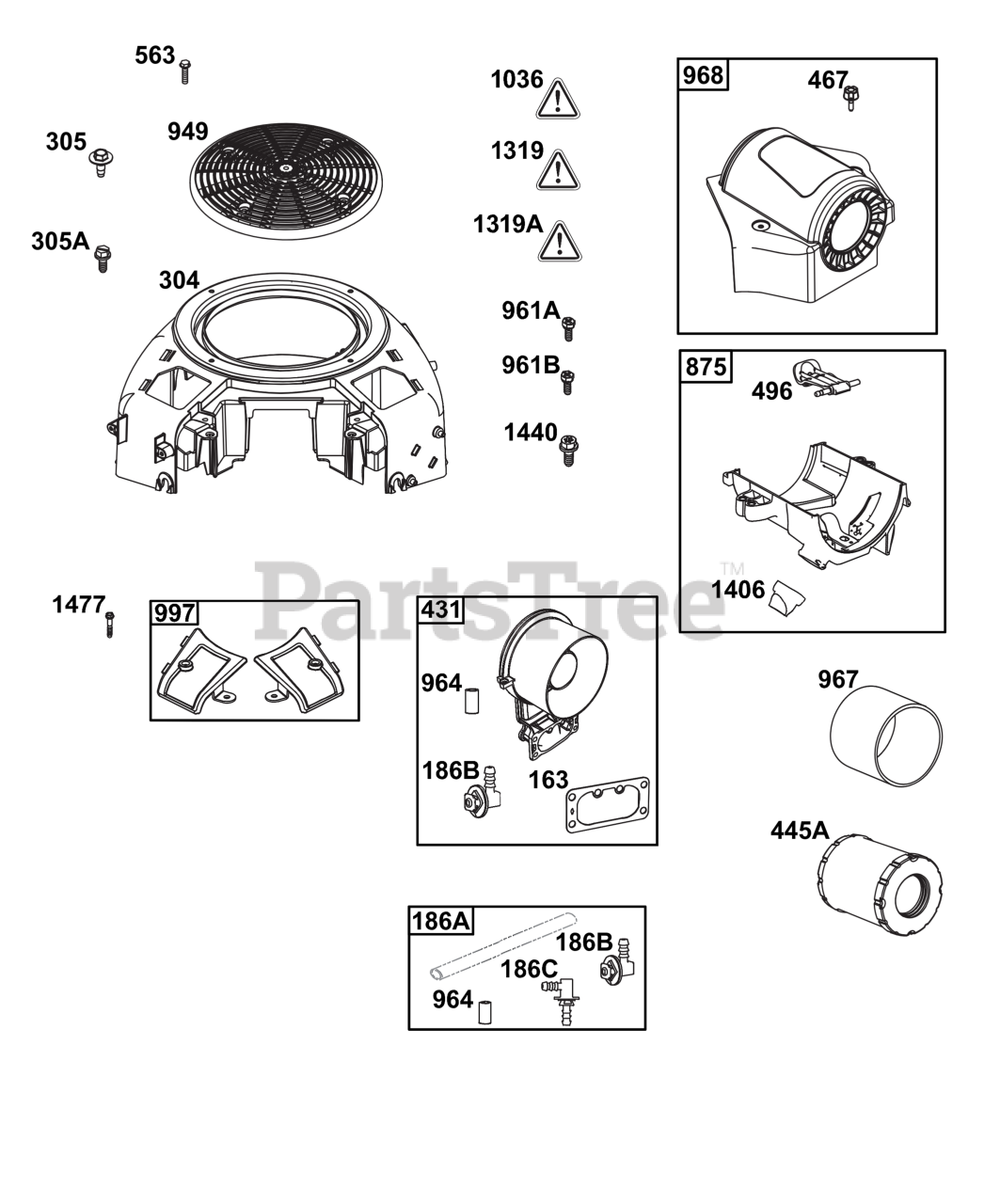

Blower Housing and Air Cleaner Group Parts Diagram

  • Title

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

186A

Briggs & Stratton 799158

CONNECTOR, Hose

$10.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

186C

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 595600

HOUSING, Blower

$149.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 15

0

305A

Briggs & Stratton 557049

SCREW

Note: (Blower Housing)

$3.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 799097

ELBOW, Intake

$48.99

$

In Stock, only 1 left!

0

445A

Briggs & Stratton 595536

FILTER, A/C Cartridge

$48.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 790697

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 12

0

496

Briggs & Stratton 799095

LEVER, Air Cleaner Filter

$28.99

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 698425

SCREW

Note: (Debris Screen Guard)

$3.49

$

In Stock, Qty 17

0

875

Briggs & Stratton 799094

BASE, Air Cleaner

$64.99

$

In Stock, only 1 left!

0

949

Briggs & Stratton 594977

GUARD, Debris Screen

$47.99

$

In Stock, only 1 left!

0

961A

Briggs & Stratton 593616

SCREW

Note: (Air Cleaner Bracket)

$4.99

$

Usually ships in 2-12 days

0

961B

Briggs & Stratton 593617

SCREW

Note: (Air Cleaner Bracket)

$7.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 597560

CAP, Connector

$3.49

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 593217

FILTER, Pre Cleaner

$6.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 799102

COVER, Air Cleaner

$39.99

$

In Stock, only 2 left!

0

997

Briggs & Stratton 592782

COVER, Blower Housing

$38.99

$

Usually ships in 2-12 days

0

997

Briggs & Stratton 592782

COVER, Blower Housing

$38.99

$

Usually ships in 2-12 days

0

1036

LABEL, Emissions

Note: (Available From A Briggs & Stratton Authorized Service Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (Required When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (Required When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 799096

VALVE, Debris

$17.99

$

Usually ships in 2-12 days

0

1440

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Base To Intake Elbow)

$3.49

$

Usually ships in 2-12 days

0

1477

Briggs & Stratton 799093

SCREW

Note: (Debris Shield)

$4.49

$

Usually ships in 2-12 days

0
