49E777-0003-B5 - Briggs & Stratton Vertical Engine Flywheel/Ignition/Starter Group Parts Diagram

Vertical Engine

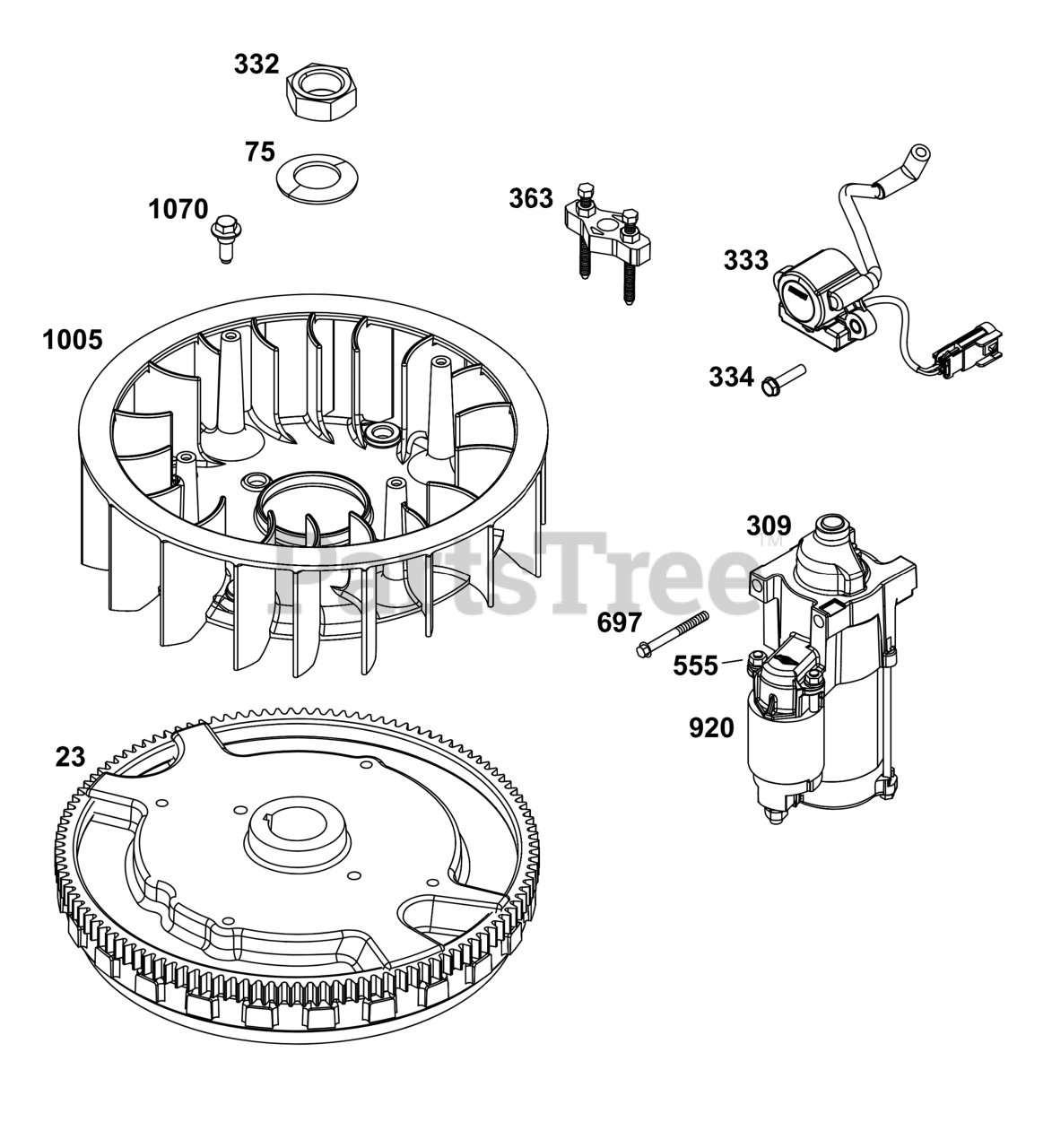

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 593840

FLYWHEEL
(Superseded to 84004525)

$205.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

In Stock, only 1 left!

0

309

Briggs & Stratton 593486

MOTOR, Starter

$168.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 593856

ARMATURE, Magneto

$65.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 593848

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19621

PULLER, Flywheel

$224.99

$

Usually ships in 2-12 days

0

555

Briggs & Stratton 593489

SCREW

Note: (Starter Solenoid)

$4.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 593487

SCREW

Note: (Drive Cap)

$10.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 593488

SOLENOID, Starter

$75.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$26.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 593638

SCREW

Note: (Flywheel Fan)

$5.99

$

Usually ships in 2-12 days

0
