49E877-0017-G1 - Briggs & Stratton Vertical Engine Throttle Body and Fuel Supply Group Parts Diagram

Vertical Engine

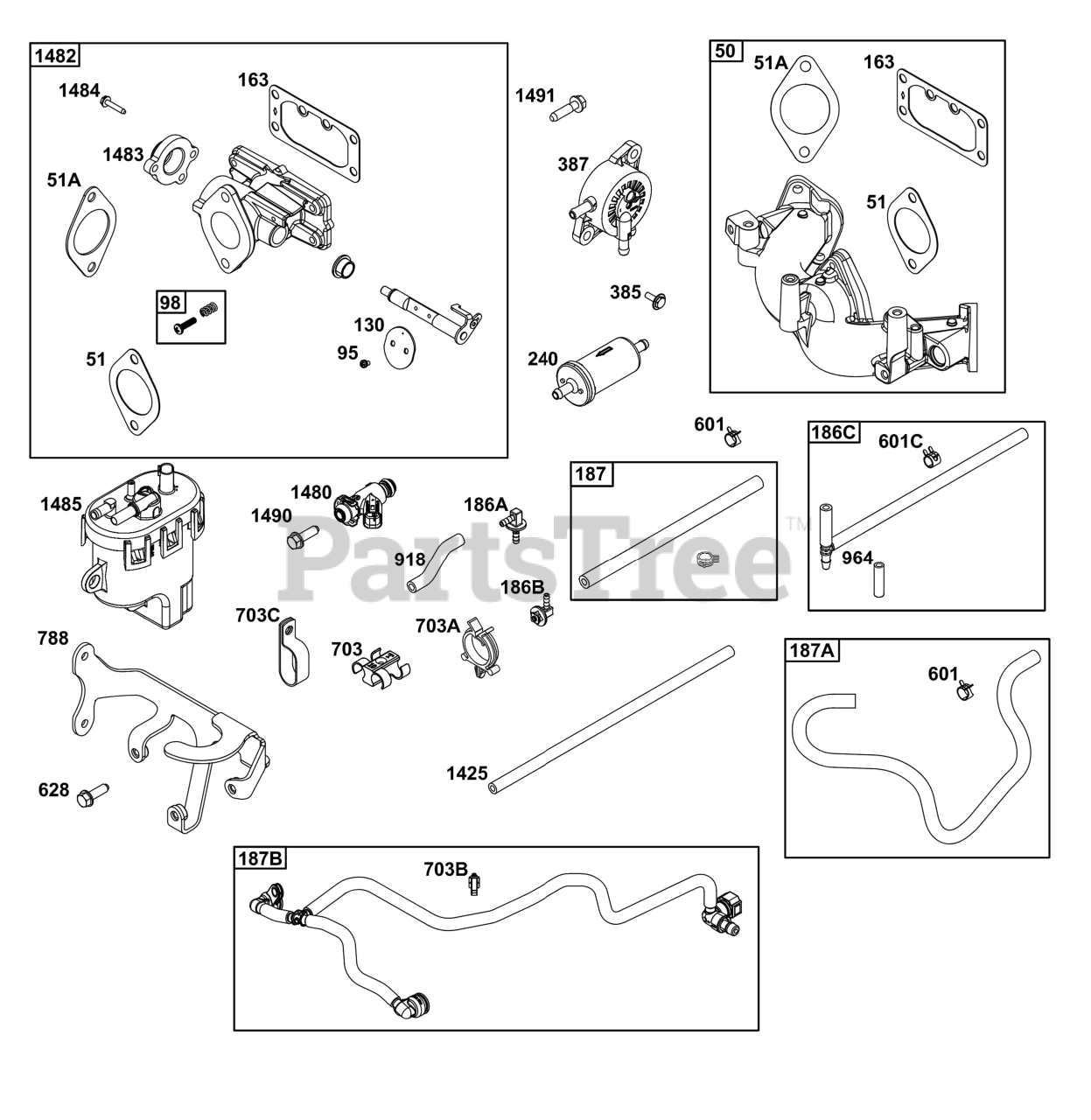

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

$

$

Not available

51

GASKET, Intake

$

$

Not available

51A

GASKET, Intake

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 593893

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 593892

VALVE, Throttle

$5.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

186C

Briggs & Stratton 593880

CONNECTOR, Hose

$23.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 18

0

187A

Briggs & Stratton 593847

LINE, Fuel

$55.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 593884

LINE, Fuel

$179.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601C

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 691127

SCREW

Note: (Fuel Pump Bracket)

$4.49

$

In Stock, Qty 6

0

703

Briggs & Stratton 593863

CLIP

$6.99

$

Usually ships in 2-12 days

0

703A

Briggs & Stratton 593846

CLIP

$7.99

$

Usually ships in 2-12 days

0

703B

Briggs & Stratton 593865

CLIP

$7.49

$

Usually ships in 2-12 days

0

703C

Briggs & Stratton 594364

CLIP

$6.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 593864

BRACKET, Fuel Pump

$23.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 593641

HOSE, Vacuum

$9.49

$

In Stock, only 1 left!

0

964

Briggs & Stratton 597560

CAP, Connector

$3.49

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 845717

HOSE, Purge Line

$29.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$79.99

$

In Stock, only 4 left!

0

1482

Briggs & Stratton 593886

BODY, Throttle

$226.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 593896

SCREW

Note: (Dust Cover)

$6.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1490

Briggs & Stratton 691127

SCREW

Note: (Fuel Injector)

$4.49

$

In Stock, Qty 6

0

1491

Briggs & Stratton 699816

SCREW

Note: (Throttle Body)

$3.49

$

In Stock, only 3 left!

0
