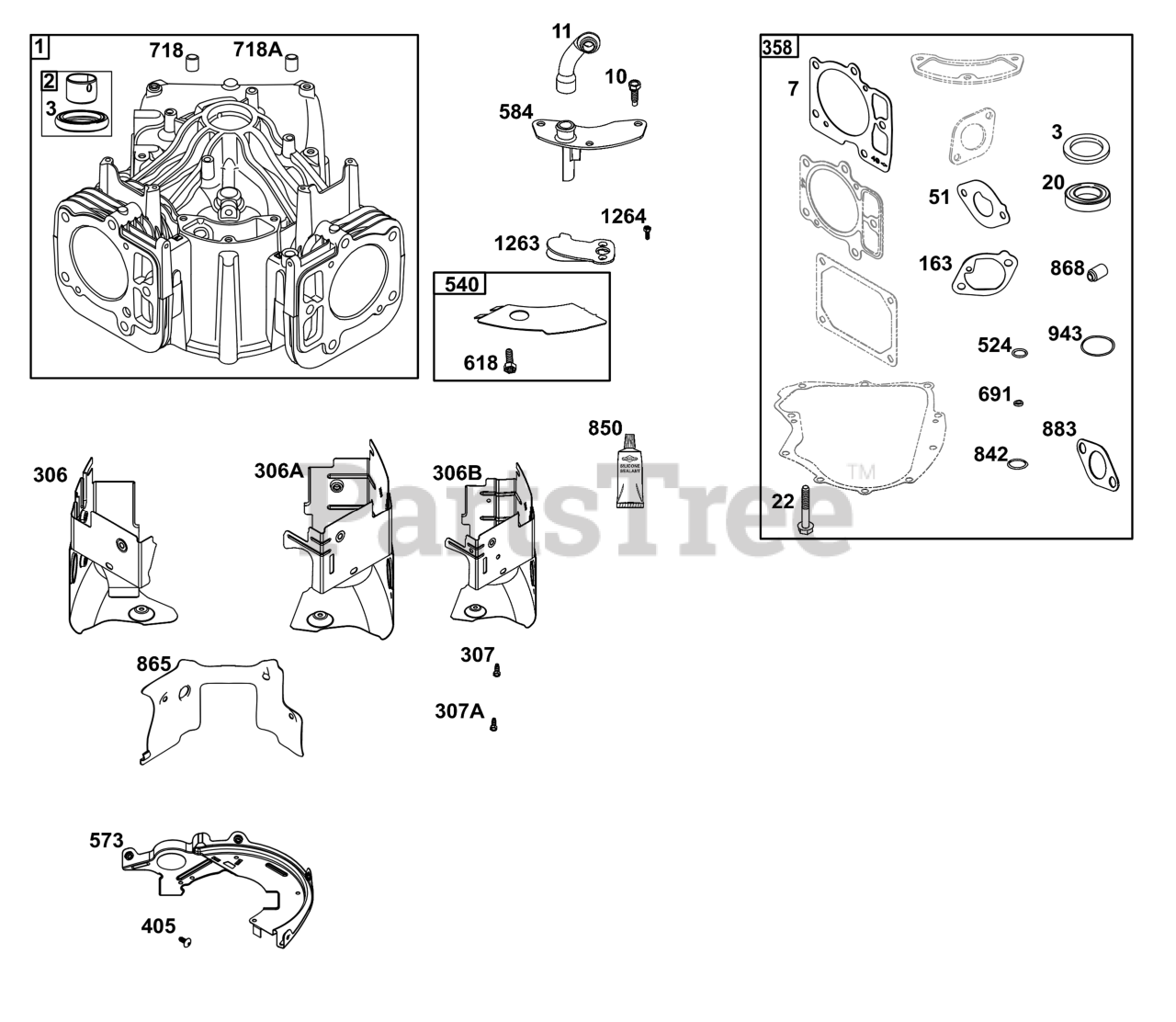

49J677-0001-G1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 594972

Cylinder Assembly

$572.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 594163

TUBE, Breather

$7.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 597777

SHIELD, Cylinder

$34.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 594983

Shield-Cylinder

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, only 2 left!

0

307A

Briggs & Stratton 691108

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.) (Not Available at this Time)

$

$

Not available

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 594903

PLATE, Back

$54.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

In Stock, only 1 left!

0

618

Briggs & Stratton 594326

SCREW

Note: (Baffle Plate)

$5.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

865

Briggs & Stratton 792286

Cover-Air Guide

$34.99

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0
