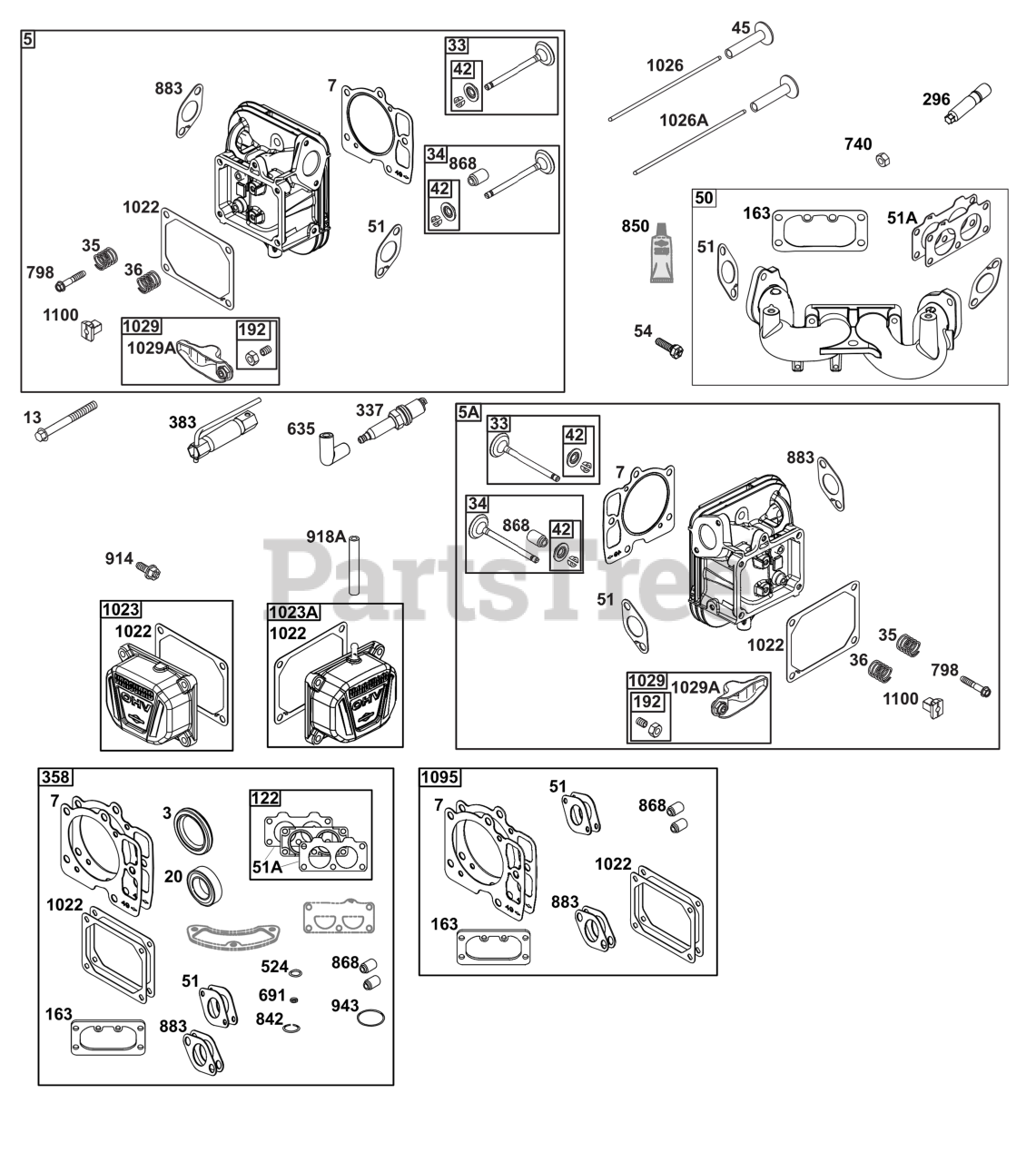

49R977-0019-G1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 593653

HEAD, Cylinder
(Superseded to 84006257)

Note: (Cylinder #1)

$275.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 593654

HEAD, Cylinder
(Superseded to 84006258)

Note: (Cylinder #2)

$282.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 593485

GASKET, Cylinder Head

$32.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 14

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 593632

VALVE, Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 793556

VALVE, Intake

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, only 1 left!

0

45

TAPPET, Valve

Note: (Part information located in Crankshaft Group.)

$

$

Not available

50

Briggs & Stratton 593655

MANIFOLD, Intake

$143.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 7

0

51A

Briggs & Stratton 796876

GASKET, Intake
(Superseded to 798759)

$15.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 699816

SCREW

Note: (Intake Manifold)

$3.49

$

In Stock, only 2 left!

0

122

SPACER, Carburetor

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 2 left!

0

296

Briggs & Stratton 591756

STUD

Note: (Muffler)

$4.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 18

0

358

Briggs & Stratton 593676

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$142.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, Qty 5

0

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, only 3 left!

0

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

740

Briggs & Stratton 690941

NUT

Note: (Muffler)

$4.99

$

In Stock, only 3 left!

0

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, only 1 left!

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 593637

SCREW

Note: (Rocker Cover)

$5.49

$

Usually ships in 2-12 days

0

918A

Briggs & Stratton 593641

HOSE, Vacuum

Note: (Length 2.9 Inches)

$9.49

$

In Stock, only 2 left!

0

943

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 593639

COVER, Rocker

$22.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 593659

COVER, Rocker

$17.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 597785

ROD, Push

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, Push

Note: (Aluminum)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, Qty 9

0

1095

Briggs & Stratton 593492

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$85.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

Usually ships in 2-12 days

0
