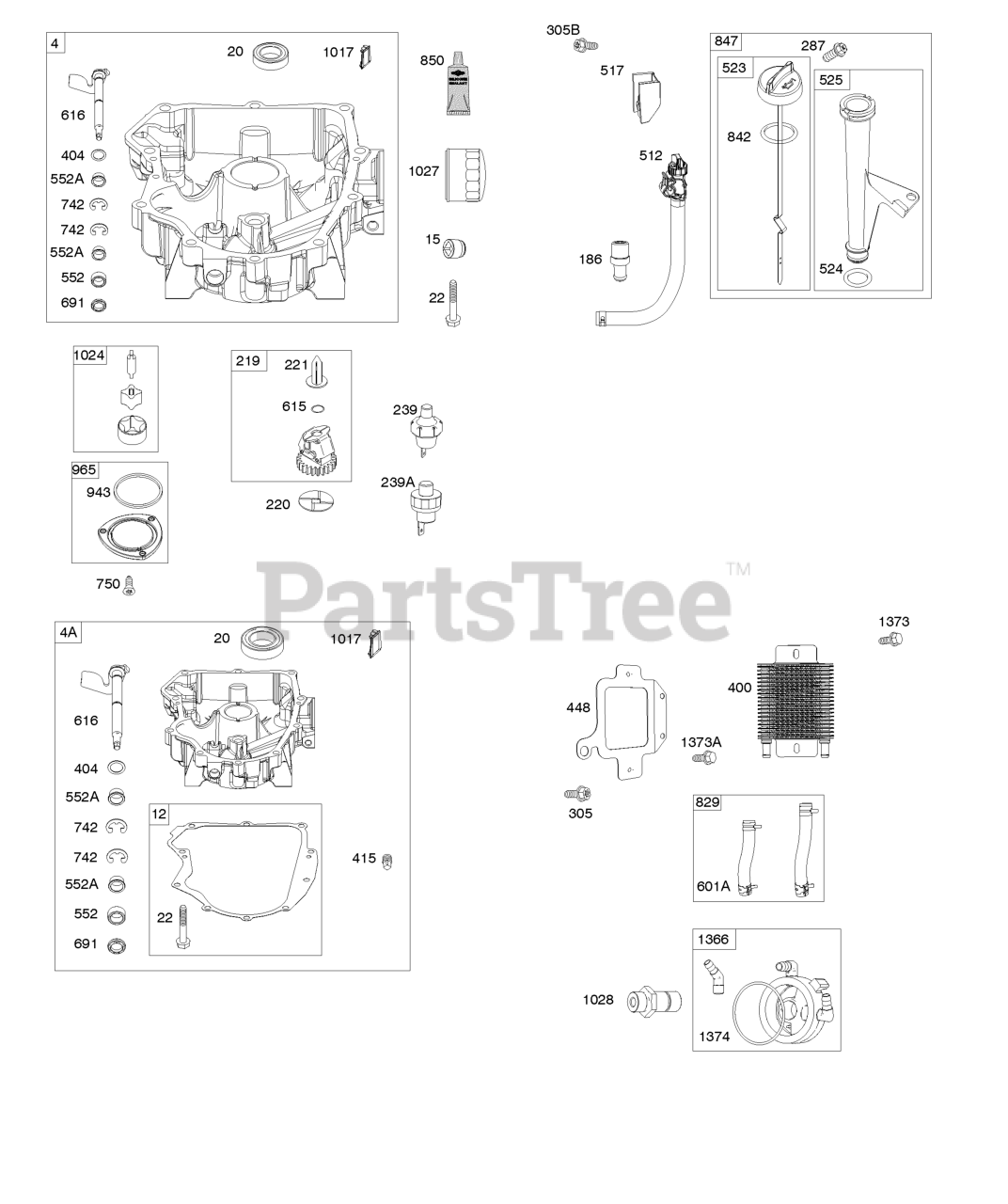

49T877-0025-G1 - Briggs & Stratton Vertical Engine Engine Sump, Lubrication, Oil Cooler Parts Diagram

Vertical Engine

Engine Sump, Lubrication, Oil Cooler Parts Diagram

  • Title

4

Briggs & Stratton 593652

SUMP, Engine

Note: Used After Code Date 15071500

$

$

Not available

4A

Briggs & Stratton 797502

Sump-Engine
(Superseded to 594973)

Note: Used Before Code Date 15071600

$

$

Not available

12

Briggs & Stratton 594195

Gasket-Crankcase

$39.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$6.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 796532

CONNECTOR, Hose

Note: (Oil Drain)

$11.99

$

In Stock, Qty 6

0

219

Briggs & Stratton 793338

GEAR, Governor

$30.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 799772

WASHER

Note: (Governor Gear)

$6.99

$

In Stock, Qty 14

0

221

Briggs & Stratton 841026

CUP, Governor

$12.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, Qty 13

0

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 9

0

400

Briggs & Stratton 796862

COOLER, Oil

$133.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

Note: (Sump)

$5.99

$

In Stock, Qty 8

0

448

Briggs & Stratton 799103

BRACKET, Oil Cooler

$35.99

$

Usually ships in 2-12 days

0

512

Briggs & Stratton 594200

HOSE, Oil Drain

$26.99

$

In Stock, Qty 8

0

523

Briggs & Stratton 594528

DIPSTICK

$20.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, Qty 8

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$23.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 796638

BUSHING, Governor Crank

$7.49

$

In Stock, only 4 left!

0

552A

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, only 3 left!

0

601A

Briggs & Stratton 841597

CLAMP, Hose

$4.49

$

In Stock, only 3 left!

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.99

$

In Stock, Qty 5

0

616

Briggs & Stratton 691045

CRANK, Governor

$21.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$6.49

$

In Stock, Qty 6

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$4.49

$

In Stock, Qty 9

0

829

Briggs & Stratton 799104

HOSE, Oil Cooler

Note: (Oil Cooler Hose)

$51.99

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 10

0

847

Briggs & Stratton 594609

DIPSTICK/TUBE ASSEMBLY
(Superseded to 597130)

$52.99

$

In Stock, only 2 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, only 1 left!

0

943

Briggs & Stratton 796222

SEAL, O-Ring

Note: (Oil Pump Cover)

$6.99

$

In Stock, Qty 6

0

965

Briggs & Stratton 796221

COVER, Oil Pump

$11.99

$

In Stock, only 2 left!

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$11.99

$

In Stock, only 2 left!

0

1024

Briggs & Stratton 794644

SHAFT, Pump

$38.99

$

In Stock, only 3 left!

0

1027

Briggs & Stratton 696854

FILTER, Oil

Note: (Black)

$13.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 796864

ADAPTER, Oil Filter

$51.99

$

Usually ships in 2-12 days

0

1366

Briggs & Stratton 799131

DIVERTER, Oil Cooler

$93.99

$

In Stock, only 1 left!

0

1373

Briggs & Stratton 695629

SCREW

Note: (Oil Cooler Bracket)

$3.99

$

Usually ships in 2-12 days

0

1373A

Briggs & Stratton 799105

SCREW

Note: (Oil Cooler Bracket)

$3.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 796863

SEAL, O-Ring

Note: (Oil Cooler Diverter)

$6.49

$

In Stock, only 2 left!

0
