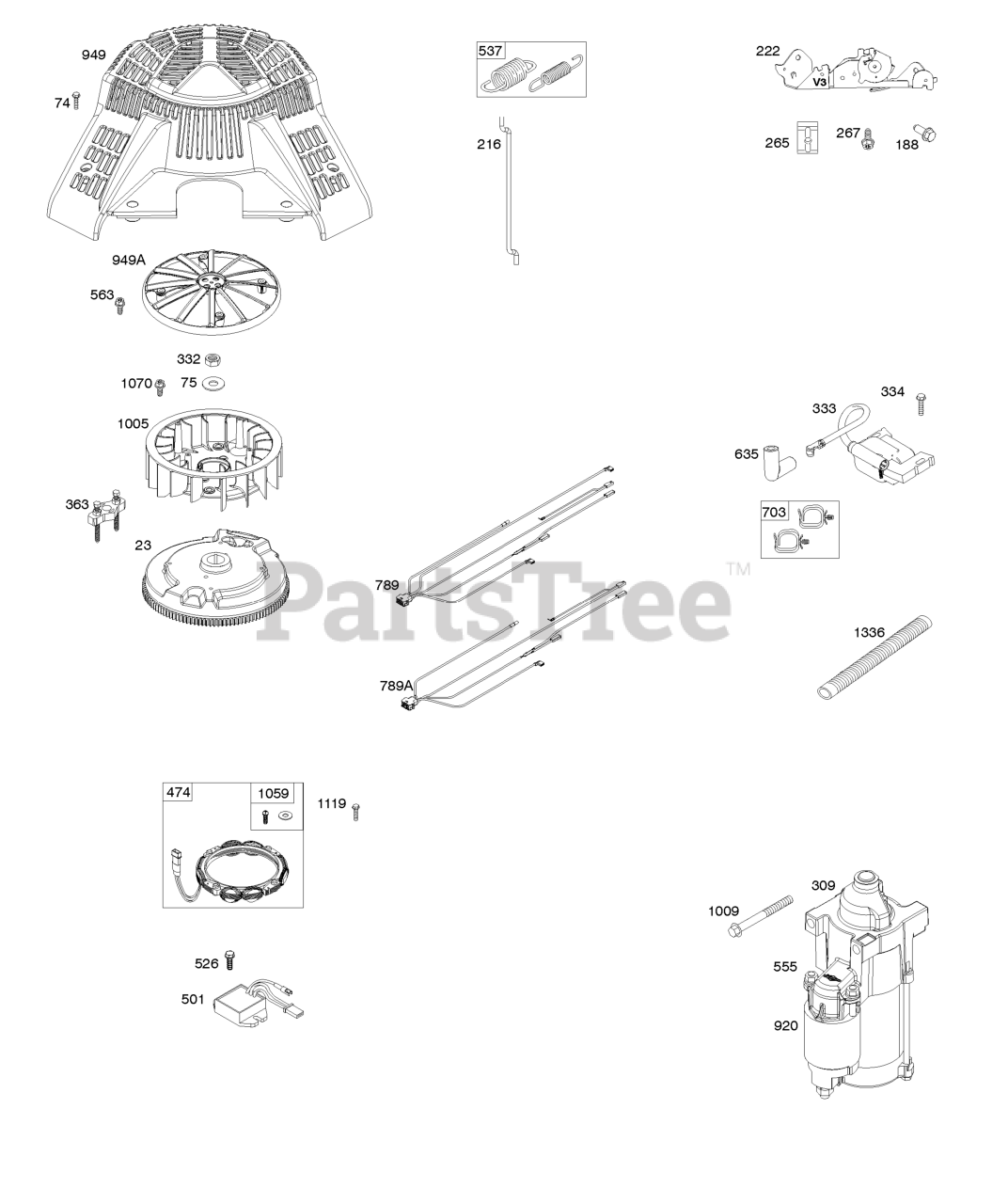

49V677-0002-G1 - Briggs & Stratton Vertical Engine Flywheel, Controls, Wire Harness, Alternator, Starter Parts Diagram

Vertical Engine

Flywheel, Controls, Wire Harness, Alternator, Starter Parts Diagram

  • Title

23

Briggs & Stratton 593610

FLYWHEEL
(Superseded to 84006724)

$248.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 698425

SCREW

Note: (Rotating Screen)

$3.99

$

In Stock, Qty 12

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

216

Briggs & Stratton 691022

LINK, Choke

Note: (Manual Choke)

$8.99

$

In Stock, Qty 7

0

222

Briggs & Stratton 798916

BRACKET, Control

$41.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 593486

MOTOR, Starter

$176.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.99

$

In Stock, Qty 10

0

333

Briggs & Stratton 592846

ARMATURE, Magneto

$56.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19621

Puller-Flywheel

$246.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 592830

ALTERNATOR

Note: (10-16 Amp Regulated)

$111.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 593490

REGULATOR

$51.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 594918

KIT, Governor/Idle Spring

$19.99

$

In Stock, only 2 left!

0

555

Briggs & Stratton 593489

SCREW

Note: (Starter Solenoid)

$4.49

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 799360

SCREW

Note: (Debris Screen Guard)

$3.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

In Stock, Qty 12

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 593611

Harness-Wiring

$92.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 593488

SOLENOID, Starter

$78.99

$

In Stock, only 2 left!

0

949

Briggs & Stratton 593636

GUARD, Debris Screen

$131.99

$

Usually ships in 2-12 days

0

949A

Briggs & Stratton 593206

GUARD, Debris Screen

$43.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$28.99

$

In Stock, only 2 left!

0

1009

Briggs & Stratton 593487

SCREW

Note: (Starter Motor)

$11.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 593638

SCREW

Note: (Flywheel Fan)

$5.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1336

Briggs & Stratton 841015

SHIELD, Wire Protective
(Superseded to 846822)

$12.99

$

Usually ships in 2-12 days
