49X977-0016-J1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

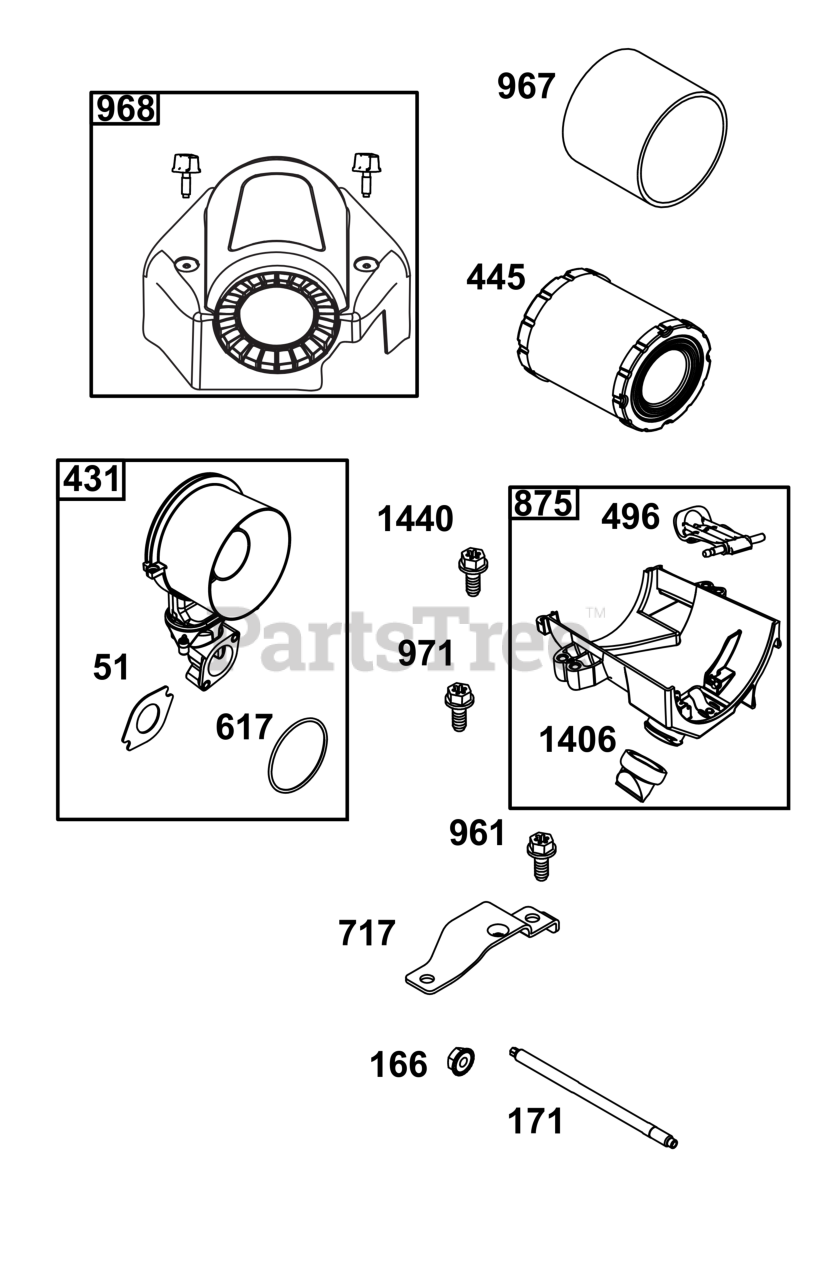

Air Cleaner Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

166

Briggs & Stratton 84004545

STUD

Note: (Air Cleaner)

$5.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 690958

NUT

Note: (Air Cleaner)

$3.49

$

In Stock, only 2 left!

0

431

Briggs & Stratton 84003938

ELBOW, Intake

$53.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 798897

FILTER, A/C Cartridge

$31.99

$

In Stock, only 1 left!

0

496

Briggs & Stratton 799095

LEVER, Air Cleaner Filter

$28.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

717

Briggs & Stratton 84004546

BRACKET, Air Cleaner

$49.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 799094

BASE, Air Cleaner

$64.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 691108

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 593217

FILTER, Pre Cleaner

$6.49

$

In Stock, Qty 7

0

971

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Base To Carburetor/Throttle Body)

$3.49

$

In Stock, only 2 left!

0

968

Briggs & Stratton 84007298

COVER, Air Cleaner

$73.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 799096

VALVE, Debris

$17.99

$

Usually ships in 2-12 days

0

1440

Briggs & Stratton 698304

SCREW

Note: (Air Cleaner Base to Intake Elbow)

$3.49

$

In Stock, only 2 left!

0
