4H494 A - Electrolux/AYP Walk-Behind Mower 22" REAR BAGGER/GEAR CASE ASSY Parts Diagram

Walk-Behind Mower

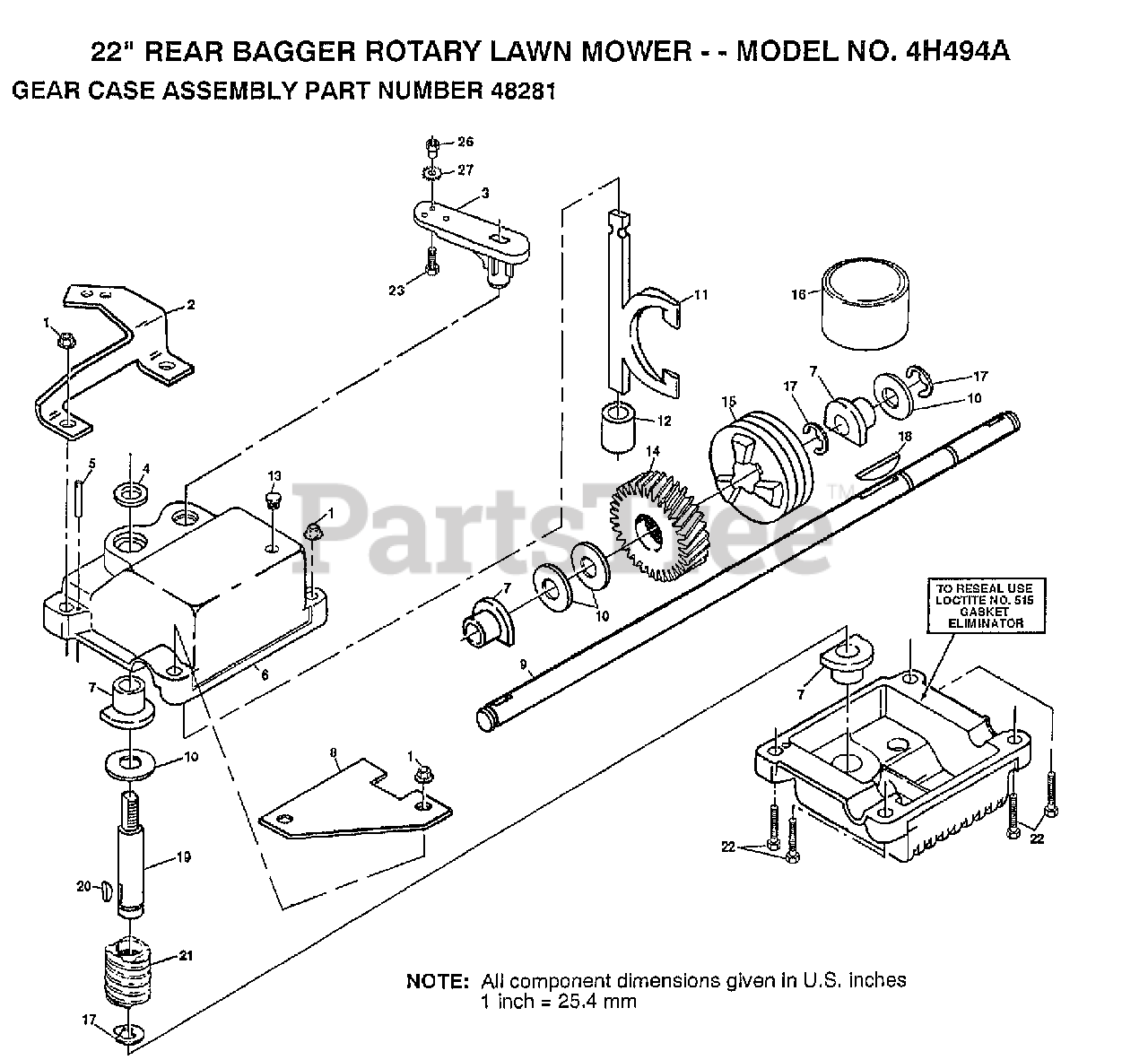

22" REAR BAGGER/GEAR CASE ASSY Parts Diagram

  • Title

Electrolux/AYP 48281

GEARCASE KIT

$

$

Not available

1

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

2

Electrolux/AYP 85177X004

"BRKT,ADJ"
(Superseded to 532085177)

$9.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 131483

SUB= 137053

$

$

Not available

4

Electrolux/AYP 57072

SEAL
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 57388

DRIVE LOK PIN
(Superseded to 532057388)

$

$

Not available

6

Electrolux/AYP 48032

CASE HALF KIT PM

$

$

Not available

7

Electrolux/AYP 77881

BEARING
(Superseded to 532077881)

$30.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 81585X004

SPRING BRKT

$

$

Not available

9

Electrolux/AYP 750430

DRIVE SHAFT
(Superseded to 532750430)

$

$

Not available

10

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 19

0

11

Electrolux/AYP 131484

CLUTCH YOKE
(Superseded to 532131484)

$

$

Not available

12

Electrolux/AYP 131485

SUB= 700343

$

$

Not available

13

Electrolux/AYP 86447

PLUG PM
(Superseded to 532086447)

$

$

Not available

14

Electrolux/AYP 133804

HELICAL GEAR

$

$

Not available

15

Electrolux/AYP 750436

SUB= 750436X

$

$

Not available

16

Electrolux/AYP 750355

SUB= 6066J

$

$

Not available

17

Electrolux/AYP 12000003

RING T
(Superseded to 812000003)

$

$

Not available

18

Electrolux/AYP 850848

HI PRO KEY
(Superseded to 532850848)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 131481

WORM SHAFT
(Superseded to 532131481)

$4.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 65692

WOODRUFF KEY
(Superseded to 532065692)

$

$

Not available

21

Electrolux/AYP 83680

WORM

$

$

Not available

22

Electrolux/AYP 50950

SUB= 2276J

$

$

Not available
