4P90HUA - Cub Cadet Engine 4P90HUA Starter Assembly Parts Diagram

Engine

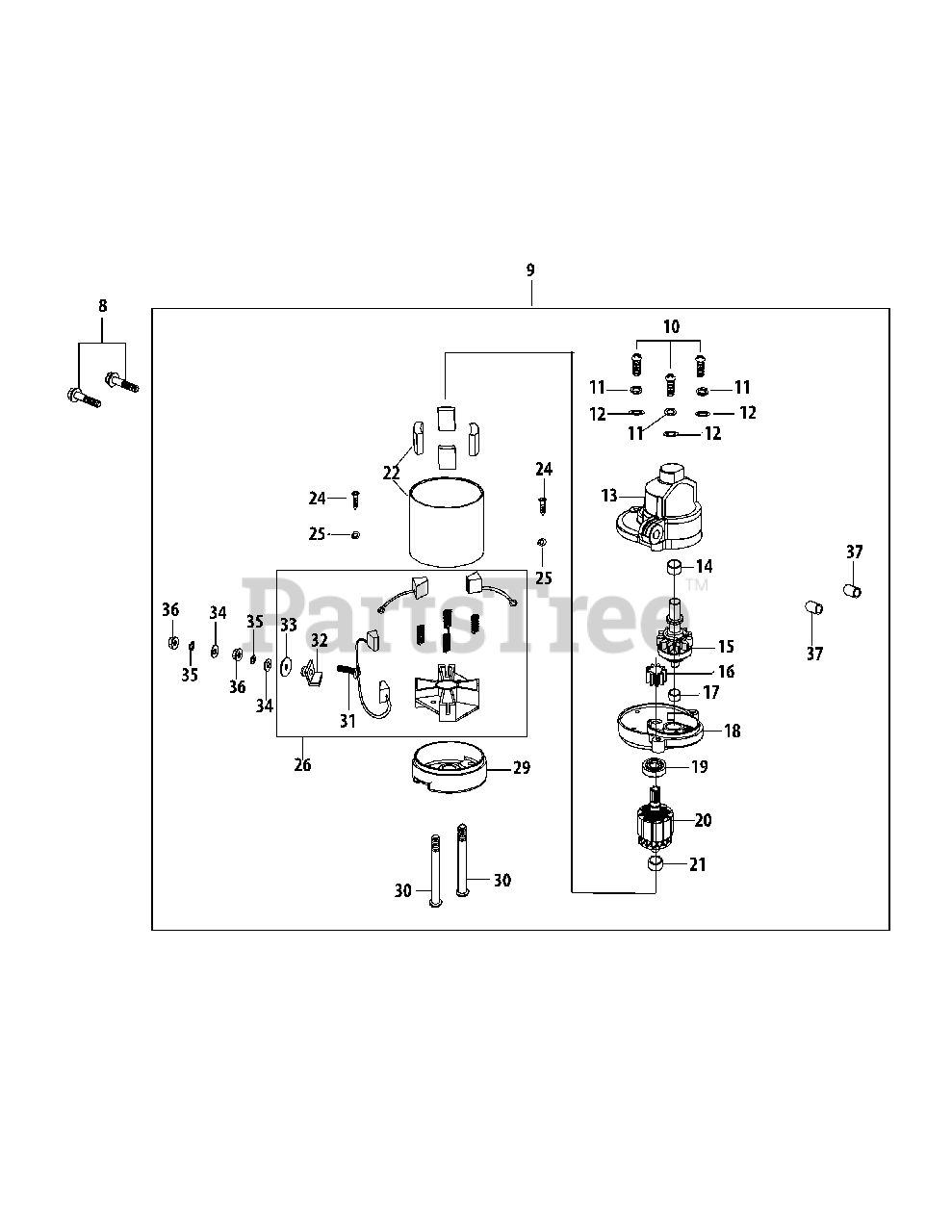

4P90HUA Starter Assembly Parts Diagram

  • Title

8

Cub Cadet 710-05306

Bolt M8×40

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 951-12207

Starter Assembly
(Superseded to 751P12207A)

$224.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-05307

Screw M5×25

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-04554

Lock Washer 5

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-04556

Plain Washer 6

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-12208

Electrical Starter Front Cover

$24.99

$

In Stock, Qty 11

0

14

Cub Cadet 951-12211

Bearing

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 951-12210

Pinion/Clutch Assembly

$90.99

$

In Stock, only 2 left!

0

16

Cub Cadet 951-12312

Gear

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 951-12209

Bearing

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-12212

Pinion Cover

$38.99

$

In Stock, only 2 left!

0

19

Cub Cadet 951-12214

Bearing 6001Zz

$14.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-12215

Starter Armature

$130.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-12216

Bearing

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-12528

Starter Housing Assembly

$100.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-12217

Screw

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-04554

Lock Washer

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-12529

Brush Assembly

$63.99

$

In Stock, only 3 left!

0

29

Cub Cadet 951-12219

Electrical Starter Back Cover

$20.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-05308

Bolt M6×100

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-05309

Bolt M6×30 Assembly

$26.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-12324

Waterproof Washer

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-04555

Insulation Washer

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-04556

Plain Washer 6

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04477

Lock Washer 6

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, only 4 left!

0

37

Cub Cadet 715-04120

Dowel Pin 10×14

$4.49

$

In Stock, only 4 left!

0
