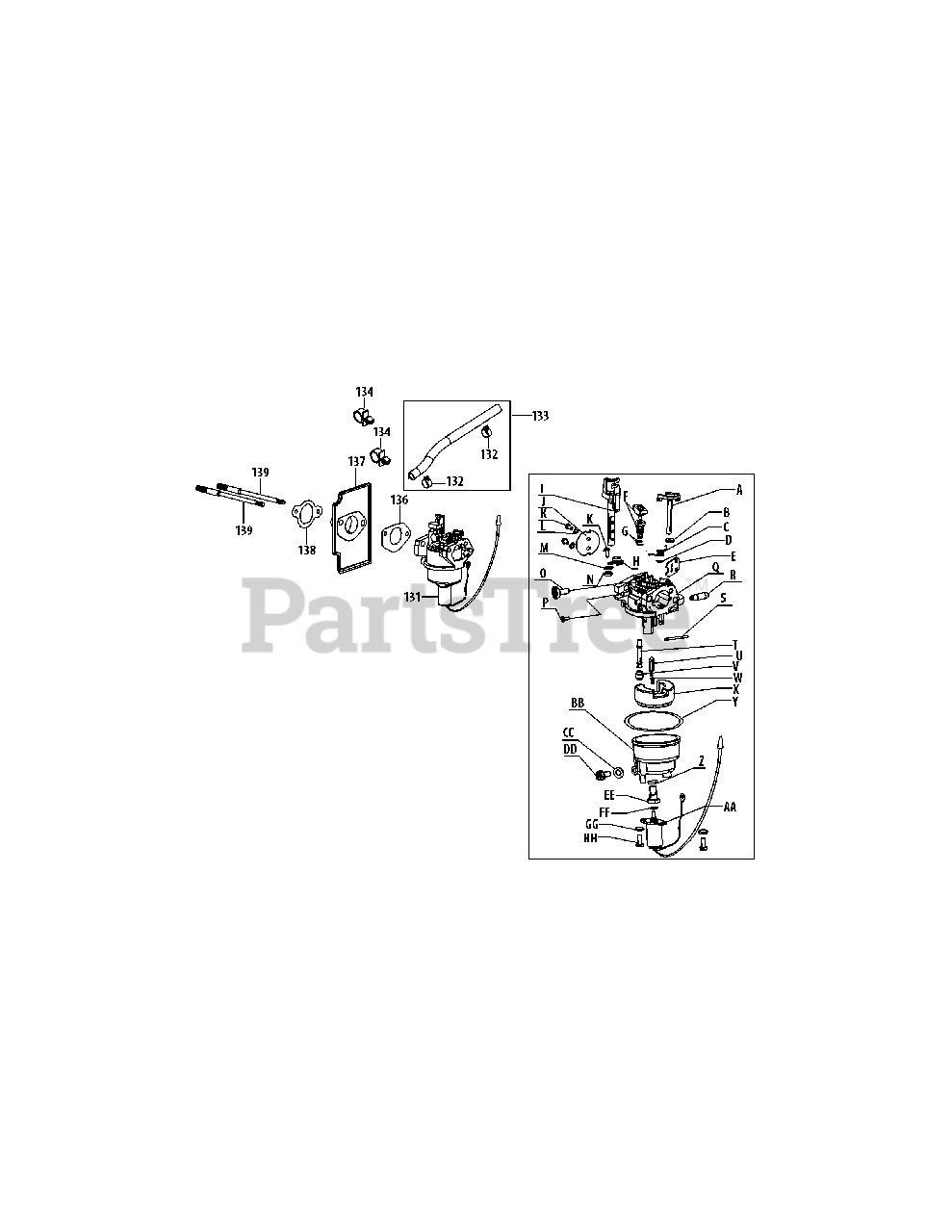

4P90JT Carburetor Assembly Parts Diagram

  • Title

131

Cub Cadet 951-12259

Carburetor Assembly

$134.99

$

In Stock, only 2 left!

0

132

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

In Stock, only 3 left!

0

133

Cub Cadet 951-11336

Fuel Line Kit

$33.99

$

In Stock, only 2 left!

0

134

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

136

Cub Cadet 951-12261

Carburetor Gasket

$4.49

$

In Stock, Qty 14

0

137

Cub Cadet 951-12262

Carburetor Insulator

$10.99

$

Usually ships in 3-6 days

0

138

Cub Cadet 951-12263

Carburetor Insulator Gasket

$4.49

$

In Stock, only 1 left!

0

139

Cub Cadet 951-12264

Carb Stud

$6.49

$

In Stock, Qty 9

0

A

Choke Shaft

$

$

Not available

B

Fiber O-Ring

$

$

Not available

C

Choke Return Spring

$

$

Not available

D

Flat Steel Washer

$

$

Not available

E

Choke Plate

$

$

Not available

F

Idle Jet Assembly

$

$

Not available

G

Idle Jet O-Ring

$

$

Not available

H

Sheetmetal Housing

$

$

Not available

I

Throttle Shaft

$

$

Not available

J

Throttle Plate

$

$

Not available

K

Screw M3 X 5

$

$

Not available

L

Lock Washer

$

$

Not available

M

Nylon Plastic O-Ring

$

$

Not available

N

Fiber O-Ring

$

$

Not available

O

Idle Speed Adjusting Screw

$

$

Not available

P

Idle Mixture Screw

$

$

Not available

Q

Carburetor Body

$

$

Not available

R

Fuel Inlet

$

$

Not available

S

Float Pin

$

$

Not available

T

Emulsion Tube

$

$

Not available

U

Needle Valve

$

$

Not available

V

Main Jet

$

$

Not available

W

Needle Valve Spring

$

$

Not available

X

Float Pin

$

$

Not available

Y

Cub Cadet 951-12304

Fuel Bowl O-Ring

$7.49

$

In Stock, only 1 left!

0

Z

Cub Cadet 951-12305

Seat/Fuel Bowl Bolt O-Ring

$

$

Not available

AA

Cub Cadet 951-12306

Solenoid Valve Assembly

$89.99

$

Usually ships in 3-6 days

0

BB

Fuel Bowl

$

$

Not available

CC

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 15

0

DD

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 3 left!

0

EE

Cub Cadet 951-12307

Seat/Fuel Bowl Bolt

$3.99

$

Usually ships in 3-6 days

0

FF

Cub Cadet 951-12308

Solenoid Valve Assembly O-Ring

$3.99

$

Usually ships in 3-6 days

0

GG

Cub Cadet 736-04554

Washer

$3.99

$

Usually ships in 3-6 days

0

HH

Cub Cadet 710-05337

Screw M5 X 10

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 951-12288

Carburetor Kit - Minor

Note: (Incl.Z,FF,Y,U,W,G)

$

$

Not available

Cub Cadet 951-12199

Carburetor Kit - Major
(Superseded to 951-14177)

Note: (Incl.B,M,N,CC,DD,Y,FF,Z, U,W,G,130,136)

$61.99

$

Usually ships in 3-6 days

0
