4W112 (8923-0) - Generac 5,000 Watt Portable Generator Mounting Base Parts Diagram

5,000 Watt Portable Generator

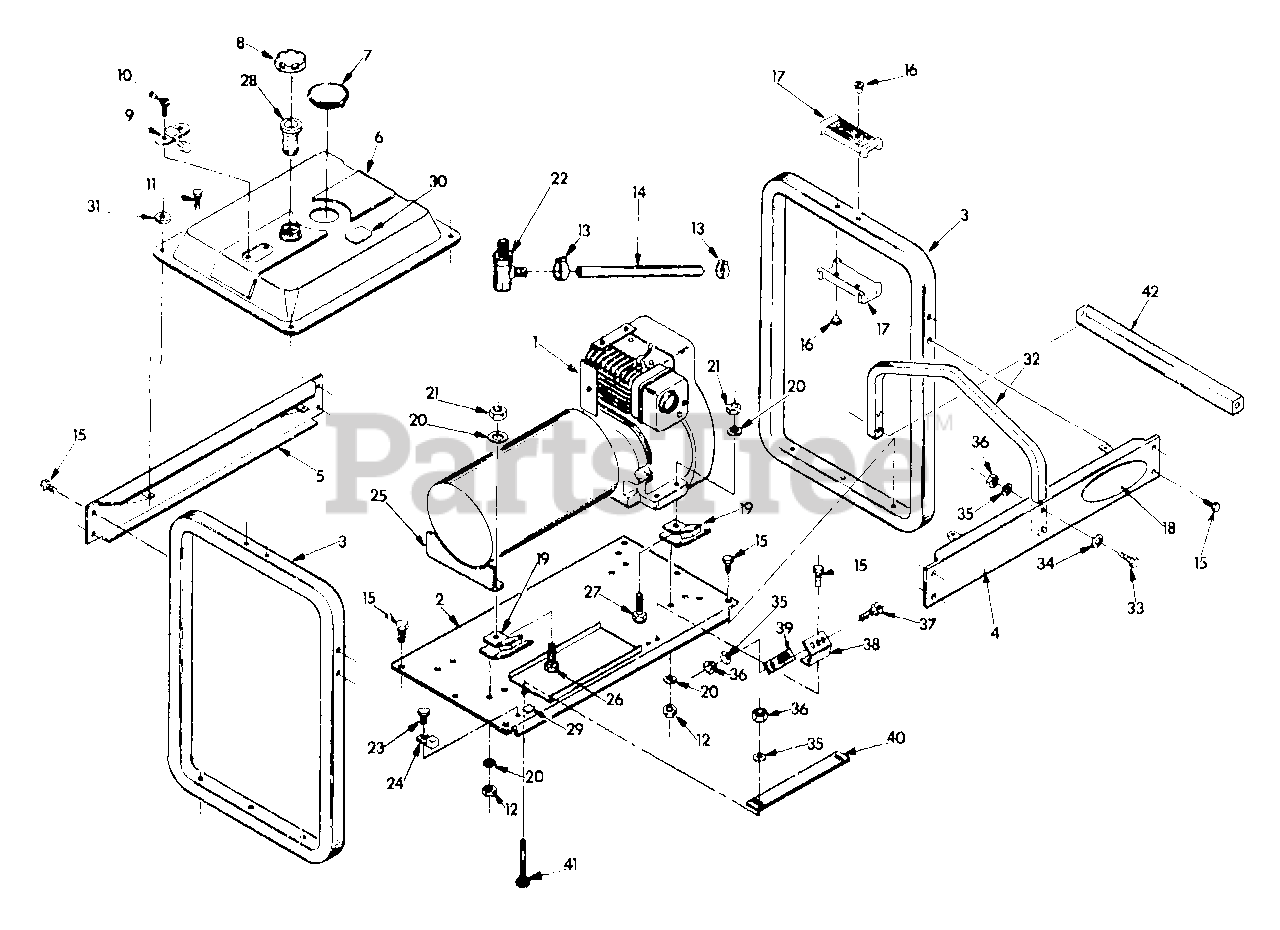

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 71748

Briggs & Stratton engine

Note: (Models 4W110, 4W111)

$

$

Currently unavailable

1

Briggs & Stratton 71749

Briggs & Stratton engine

Note: (Model 4W112 only)

$

$

Currently unavailable

2

Briggs & Stratton 70643C

Mounting base

$

$

Currently unavailable

3

Briggs & Stratton 70603

Cradle end loop

$

$

Currently unavailable

4

Briggs & Stratton 70762A

Right hand fuel tank support

Note: (Models 4W110, 4W111)

$

$

Currently unavailable

4

Briggs & Stratton 71760A

Right hand fuel tank support

Note: (Model 4W112 only)

$

$

Currently unavailable

5

Briggs & Stratton 70762B

Left hand fuel tank support

Note: (Models 4W110, 4W111)

$

$

Currently unavailable

5

Briggs & Stratton 71760B

Left hand fuel tank support

Note: (Model 4W112 only)

$

$

Currently unavailable

6

Briggs & Stratton 69662

Fuel tank

$

$

Currently unavailable

7

Briggs & Stratton 64680B

Spark plug access cover
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

Fuel tank filler cap

$

$

Currently unavailable

9

Briggs & Stratton 66391B

Fuel level gauge

$

$

Not available

10

Briggs & Stratton 52749

M5-0.80 x 12mm Screw

$

$

Currently unavailable

11

Briggs & Stratton 36933

No. 10-32 x 3/8" Screw

$

$

Not available

12

Briggs & Stratton 45771

M8-1.25 Hex nut

$

$

Not available

13

Briggs & Stratton 48031C

1/4" Hose clamp

$

$

Not available

14

Briggs & Stratton 47662AE

1/4" ID x 12" long hose

$

$

Currently unavailable

15

Briggs & Stratton 58442

1/4"-20 x 1/2" Screw

$

$

Currently unavailable

16

Briggs & Stratton 66831

4mm Rivet

$

$

Not available

17

Briggs & Stratton 66450

Plastic handle

$

$

Not available

18

Briggs & Stratton 52194

"Dayton" logo decal

$

$

Currently unavailable

19

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 22129

5/16" Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22259

5/16"-18 Hex nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 27734

Fuel shutoff valve
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 24489

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

24

Briggs & Stratton 25433

Grounding lug

$

$

Not available

25

Briggs & Stratton 70634A

Generator rear support

$

$

Currently unavailable

26

Briggs & Stratton 64183

5/16"-18 x 3/4" pan head screw

$

$

Currently unavailable

27

Briggs & Stratton 71752

5/16"-18 x 1-3/4" Pan head screw

Note: (4W110, 4W111)

$

$

Currently unavailable

27

Briggs & Stratton 71729

5/16"-18 x 2" Pan head screw
(Superseded to 71729GS)

Note: (Model 4W112 only)

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70630

Fuel strainer

$

$

Currently unavailable

29

Briggs & Stratton 67210A

Ground decal
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 69674

"Fuel Caution" decal

$

$

Currently unavailable

31

Briggs & Stratton 22152

No. 10 Lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70756B

Lifting eye tube

$

$

Currently unavailable

33

Briggs & Stratton 22203

1/4"-20 x 1-1/4" Screw
(Superseded to 22203GS)

$2.49

$

Usually ships in 2-12 days

0

34

22473

1/4" Flatwasher

$

$

Not available

35

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 22127

1/4"-20 Hex nut

$

$

Not available

37

Briggs & Stratton 22287

1/4"-20 x 3/4" Screw
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 65121

Starter contactor bracket

$

$

Currently unavailable

39

Briggs & Stratton 53030

Starter contactor
(Superseded to 53030GS)

Note: (includes cables)

$57.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 44951

Battery retaining bracket

$

$

Currently unavailable

41

Briggs & Stratton 45000

1/4"-20 x 7" capscrew
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 71762

Lifting eye brace

$221.99

$

Usually ships in 2-12 days

0
