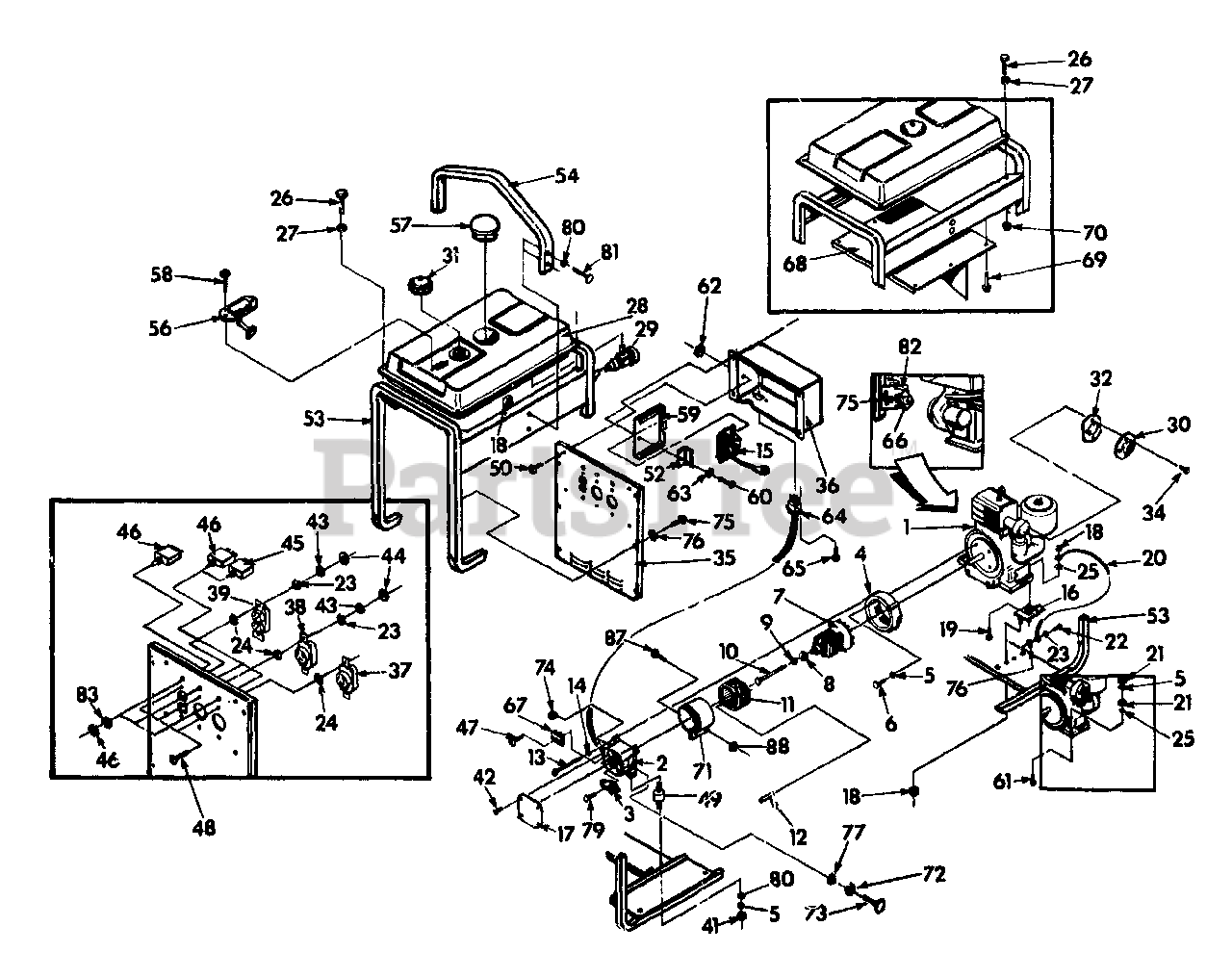

4W112A (9438-0) - Generac 5,000 Watt Portable Generator Replacement Parts Illustration - 8 H.P. Electric Start B&S Engine Parts Diagram

5,000 Watt Portable Generator

Replacement Parts Illustration - 8 H.P. Electric Start B&S Engine Parts Diagram

  • Title

1

Briggs & Stratton 84562

8 h.p. Electric start Briggs & Stratton engine

$

$

Currently unavailable

2

Briggs & Stratton 66825A

Rear bearing carrier

$

$

Currently unavailable

3

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

4

Briggs & Stratton 66365G

Adaptor housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 22336

5/16-24 x 3/4" Hex screw

$

$

Not available

7

Briggs & Stratton 74714

Rotor assembly

$

$

Currently unavailable

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special washer

$

$

Currently unavailable

10

Briggs & Stratton 75431

Rotor bolt
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84589

Stator assembly

$

$

Currently unavailable

12

Briggs & Stratton 81917

M4 Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66449D

Stator bolt

$

$

Currently unavailable

14

Briggs & Stratton 22097

Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 67107

Voltage regulator
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

45-degree Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 Flange lock nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

19

Briggs & Stratton 76222

M8-1.25 x 40mm Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10953621

4" long Ground wire

$

$

Currently unavailable

21

Briggs & Stratton 22259

5/16-18 Hex nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 24911

Screw (taptite)
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

No. 8 Lock washer (serrated)
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 27482

5/16" Shakeproof washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 42568

M6-1.0 x 20mm Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

27

22473

1/4" (M6) Flat washer

$

$

Not available

28

Briggs & Stratton 73715

Metal gas tank
(Superseded to 7073715YP)

$

$

Not available

29

Briggs & Stratton 75938

Fuel shut-off valve

$

$

Currently unavailable

30

Briggs & Stratton 77836

Spark arrestor deflector
(Superseded to 77836GS)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 76280

Fuel tank cap
(Superseded to 76280GS)

$

$

Not available

32

Briggs & Stratton 77601

Spark arrestor screen
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 77836A

Deflector screws
(Superseded to 77836AGS)

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84423

Control panel

$

$

Currently unavailable

36

Briggs & Stratton 84591

Control panel back

$

$

Currently unavailable

37

Briggs & Stratton 68868

120 volts, 30 amp Outlet, twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240V., 20 amp Outlet, twistlock
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68759

120V., 20A, Duplex outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton 25244

5/16-18 Hex nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5-0.8 x 10mm Hex screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

No. 8 Lock washer

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

30 amp Circuit breaker

$

$

Not available

46

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 66849A

M5 x 20 Taptite screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

49

Briggs & Stratton 82857

Rubber mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 63036

No. 8-32 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84876

Regulator hold down

$

$

Currently unavailable

53

Briggs & Stratton 83915A

4 kW Electric start cradle

$

$

Currently unavailable

54

Briggs & Stratton 84453

Lifting bar

$

$

Currently unavailable

56

Briggs & Stratton 66391B

Fuel level gauge

$

$

Not available

57

Briggs & Stratton 64680B

Spark plug cover
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 52749

M5 Pan head screw

$

$

Currently unavailable

59

Briggs & Stratton 68795

Regulator Bracket

$

$

Not available

60

Briggs & Stratton 36901

No. 6-32 x 3/8" Screw

$

$

Currently unavailable

61

Briggs & Stratton 71729

Pan head machine screw
(Superseded to 71729GS)

$6.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 22188

No. 6-32 Hex nut

$

$

Currently unavailable

63

Briggs & Stratton 22155

No. 6 Lock washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 22694

Black housing receptacle
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 66855

Rivet

$

$

Currently unavailable

66

Briggs & Stratton 77282

Starter switch

$

$

Not available

67

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

68

Briggs & Stratton 84459

Heat shield

$

$

Currently unavailable

69

Briggs & Stratton 56892

No. 10-25 Crimptite screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 52857

M6-1.0 Lock nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 81887C

Alternator wrap

$

$

Not available

72

Briggs & Stratton 46526

M10 Lock washer

$

$

Not available

73

Briggs & Stratton 51755

M10 x 16mm Capscrew

$

$

Currently unavailable

74

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 75494

No. 10 x 5/8" Screw

$

$

Not available

76

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 22261

3/8" Int. Shakeproof washer
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

79

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

80

Briggs & Stratton 22145

5/16" (M8) Flat washer

$

$

Not available

81

Briggs & Stratton 39827

M8-1.25 x 45mm Capscrew

$

$

Currently unavailable

82

Briggs & Stratton 78289

Starter switch bracket
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 82881

Internal lock washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 52618

M5-0.8 x 12mm Screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 52856

M5-0.8 Lock nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0
