4W113 (8924-0) - Generac 7,500 Watt Portable Generator Receptacle Panel For 4W113 Parts Diagram

7,500 Watt Portable Generator

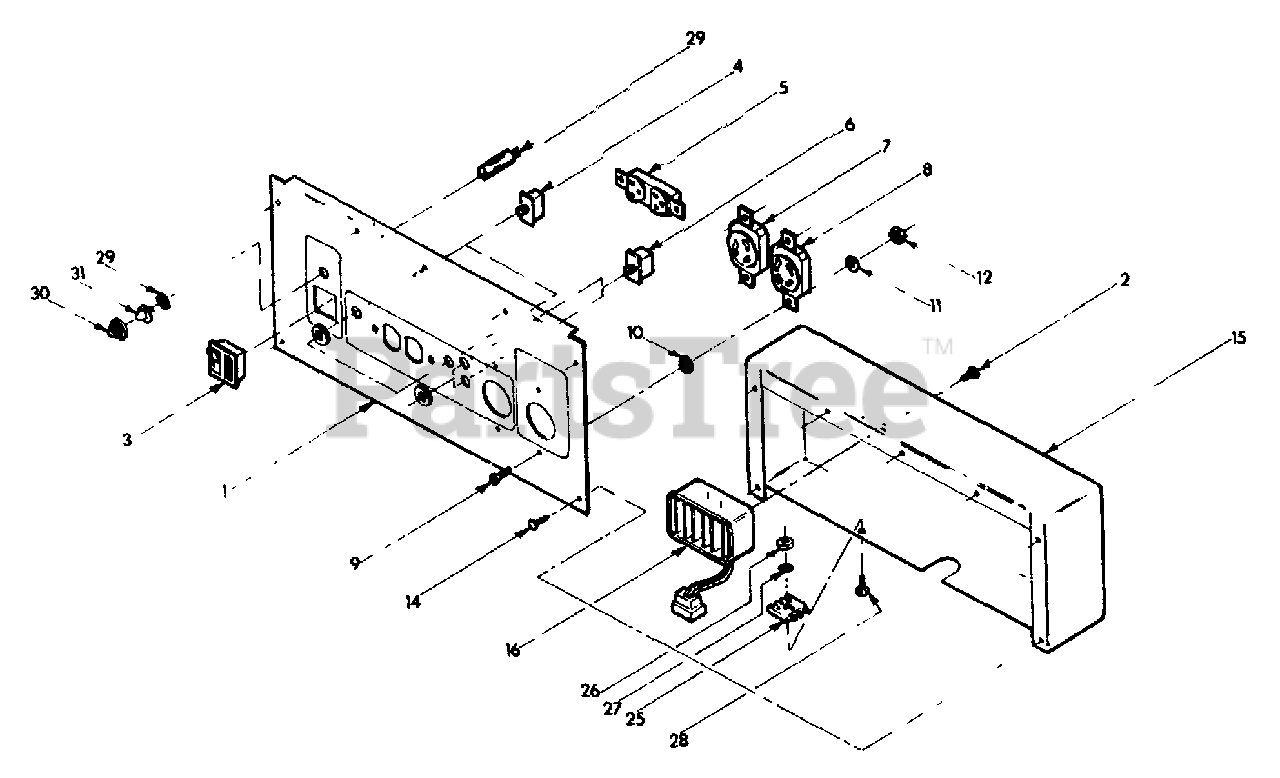

Receptacle Panel For 4W113 Parts Diagram

  • Title

1

Briggs & Stratton 71373

Receptacle panel

$

$

Currently unavailable

2

Briggs & Stratton 38045

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

3

Briggs & Stratton 66817

Start/stop switch & A-c on lamp assembly
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

20 amp circuit breaker

$

$

Currently unavailable

5

Briggs & Stratton 68759

120 volts, 20 amp (Duplex) Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 71868

35 amp circuit breaker
(Superseded to 71868GS)

$56.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868

120 volts, 30 amp receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43437

120/240 volts, 30 amp receptacle

$

$

Not available

9

Briggs & Stratton 36917

No. 8-32 x 3/8" Screw
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

No. 8 serrated washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22264

No. 8 Lockwasher

$

$

Not available

12

Briggs & Stratton 22471

No. 8-32 Hex nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68746D

Panel back

$

$

Currently unavailable

16

Briggs & Stratton 60988

Voltage regulator

$

$

Currently unavailable

25

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

26

Briggs & Stratton 22158

No. 10-32 Hex nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 22152

No. 10 Lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36935

No. 10-32 x 3/4" Screw

$

$

Not available

29

Briggs & Stratton 57514

Lamp holder

$

$

Currently unavailable

30

Briggs & Stratton 57327

Red lens
(Superseded to 7060635YP)

$110.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 30744

Lamp

$1032.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

120 volts, 30 amp connector plug
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

120/240 volts, 30 amp connector plug
(Superseded to 43438GS)

$26.99

$

Usually ships in 2-12 days

0
