4W113 (8924-0) - Generac 7,500 Watt Portable Generator Receptacle Panel For 4W113A Parts Diagram

7,500 Watt Portable Generator

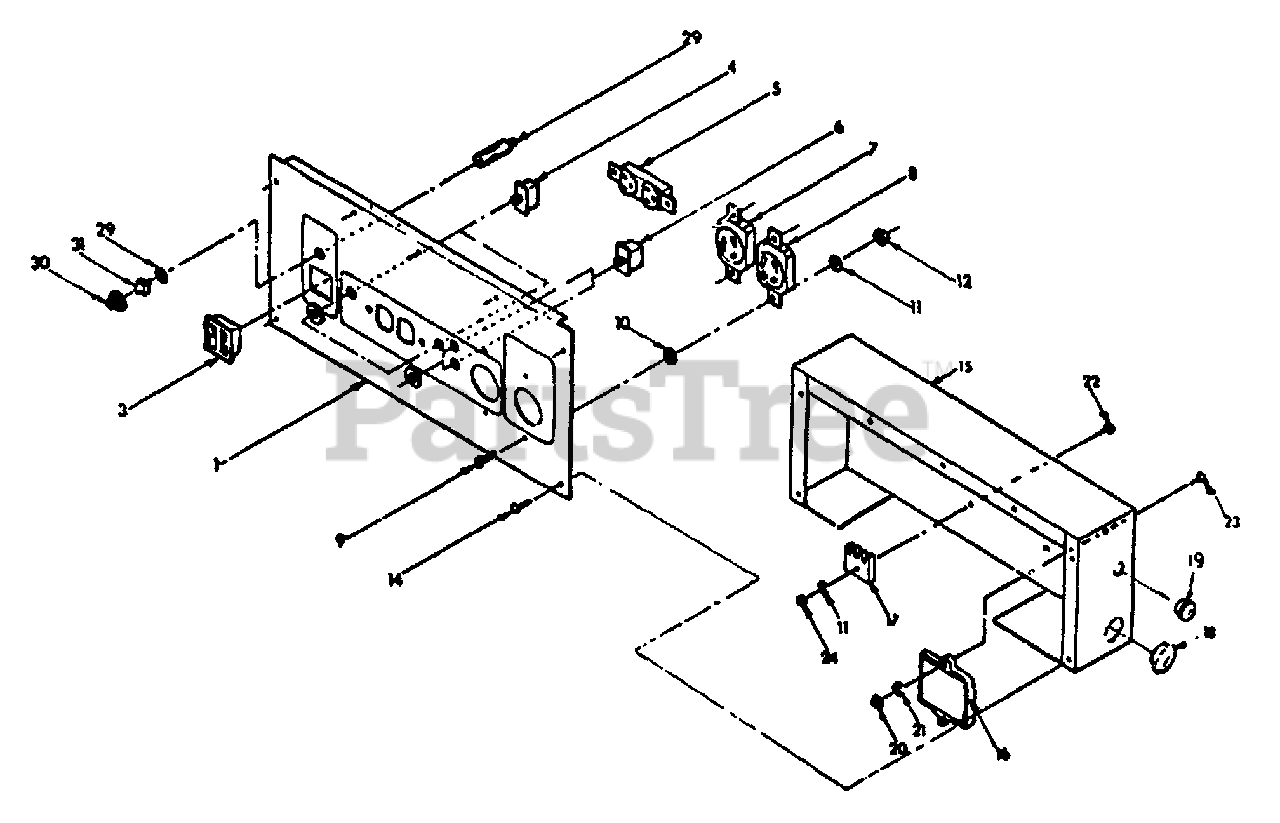

Receptacle Panel For 4W113A Parts Diagram

  • Title

1

Briggs & Stratton 71373

Receptacle panel

$

$

Currently unavailable

3

Briggs & Stratton 66817

Switch and lamp assembly
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

20 amp circuit breaker

$

$

Currently unavailable

5

Briggs & Stratton 68759

120 volts, 20 amp receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 71868

35 amp circuit breaker
(Superseded to 71868GS)

$56.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868

120 volts, 30 amp receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43437

120/240 volts, 30 amp receptacle

$

$

Not available

9

Briggs & Stratton 36917

No. 8-32 x 3/8" screw
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

No. 8 serrated washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22264

No. 8 lockwasher

$

$

Not available

12

Briggs & Stratton 22471

No. 8-32 hex nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 63036

No. 8-18 x 1/4" screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 78966

Panel back

$

$

Currently unavailable

16

Briggs & Stratton 74074

Voltage regulator

$

$

Currently unavailable

17

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

18

Briggs & Stratton 58821

Button plug

$

$

Currently unavailable

19

Briggs & Stratton 65511

Button plug

$

$

Currently unavailable

20

Briggs & Stratton 22158

No. 10-32 nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 22152

No. 10 lockwasher
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 70439

M4-0.70 x 20mm machine screw

$

$

Currently unavailable

23

Briggs & Stratton 33534

No. 10-32 x 1-1/8" machine screw

$

$

Currently unavailable

24

Briggs & Stratton 51715

M4-0.70 hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

29

UNKNOWN

$

$

Not available

30

UNKNOWN

$

$

Not available

31

UNKNOWN

$

$

Not available
