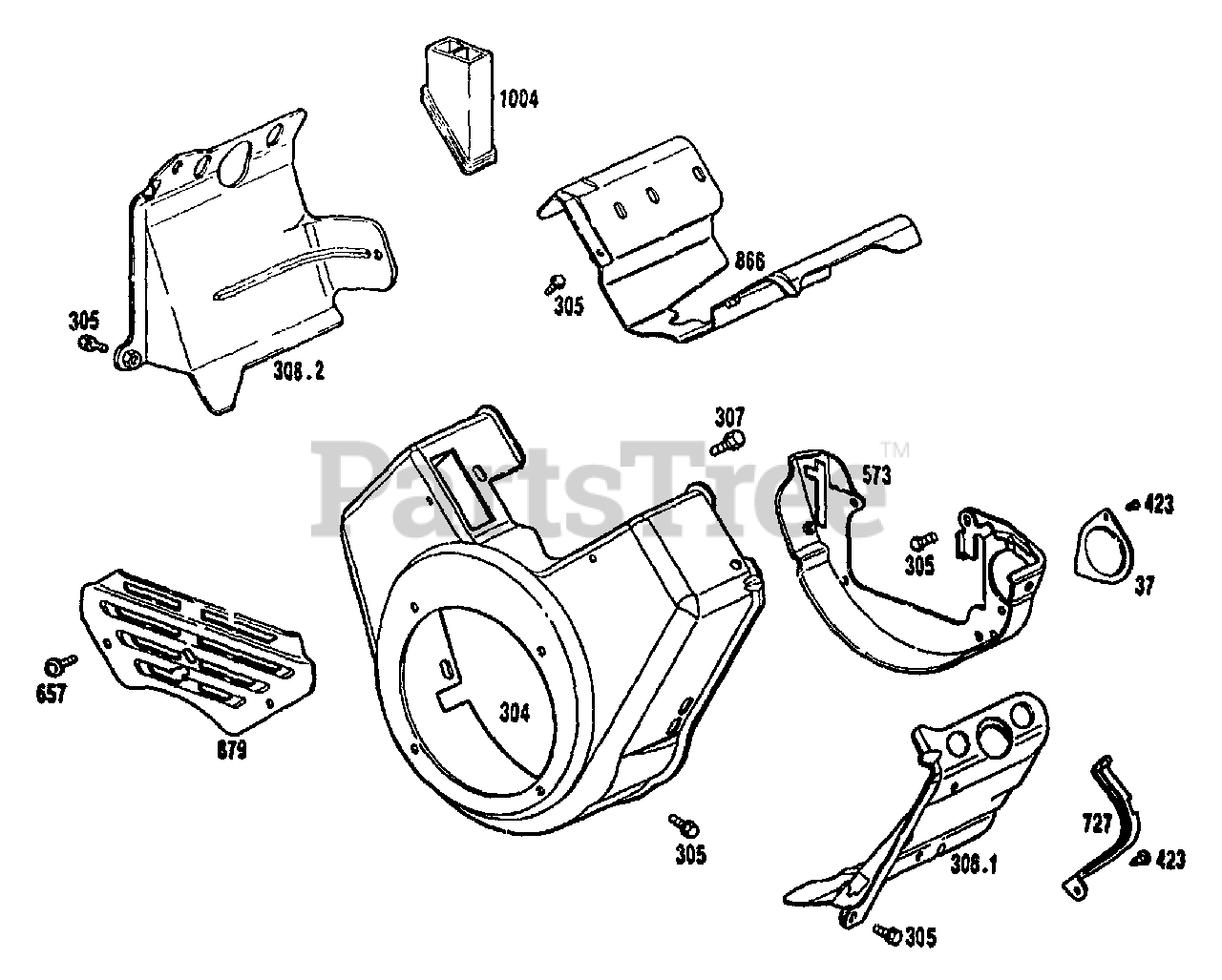

4W113D (9163-2) - Generac 8,000 Watt Portable Generator Covers For Engine Parts Diagram

8,000 Watt Portable Generator

Covers For Engine Parts Diagram

  • Title

37

Briggs & Stratton 70149

805504--Starter Cover

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

304

Briggs & Stratton 69369

807654--Blower housing

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

305

Briggs & Stratton 66886

80506--Screw

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

307

Briggs & Stratton 67898

805025--Screw

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Not available

308-1

Briggs & Stratton 69363

3O7648--Air guide cover (cyl. #1)

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

308-2

Briggs & Stratton 69364

807649--Air guide cover (cyl. #1)

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

423

Briggs & Stratton 166484

805260--Screw

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

573

Briggs & Stratton 69368

807655--Back plate assembly

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

657

Briggs & Stratton 67820

805009--Screw

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

727

Briggs & Stratton 70129

805503--Starter shield

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

866

Briggs & Stratton 72307

807652--Air guide valley cover

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

879

Briggs & Stratton 72304

805369--Carburetor cover

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable

1004

Briggs & Stratton 86450

805362--Air inlet tube

Note: Contact Generac for quantity required. NOTE: The numbers Included In DESCRIPTION refer to the engine manufacturers part numbers.

$

$

Currently unavailable
