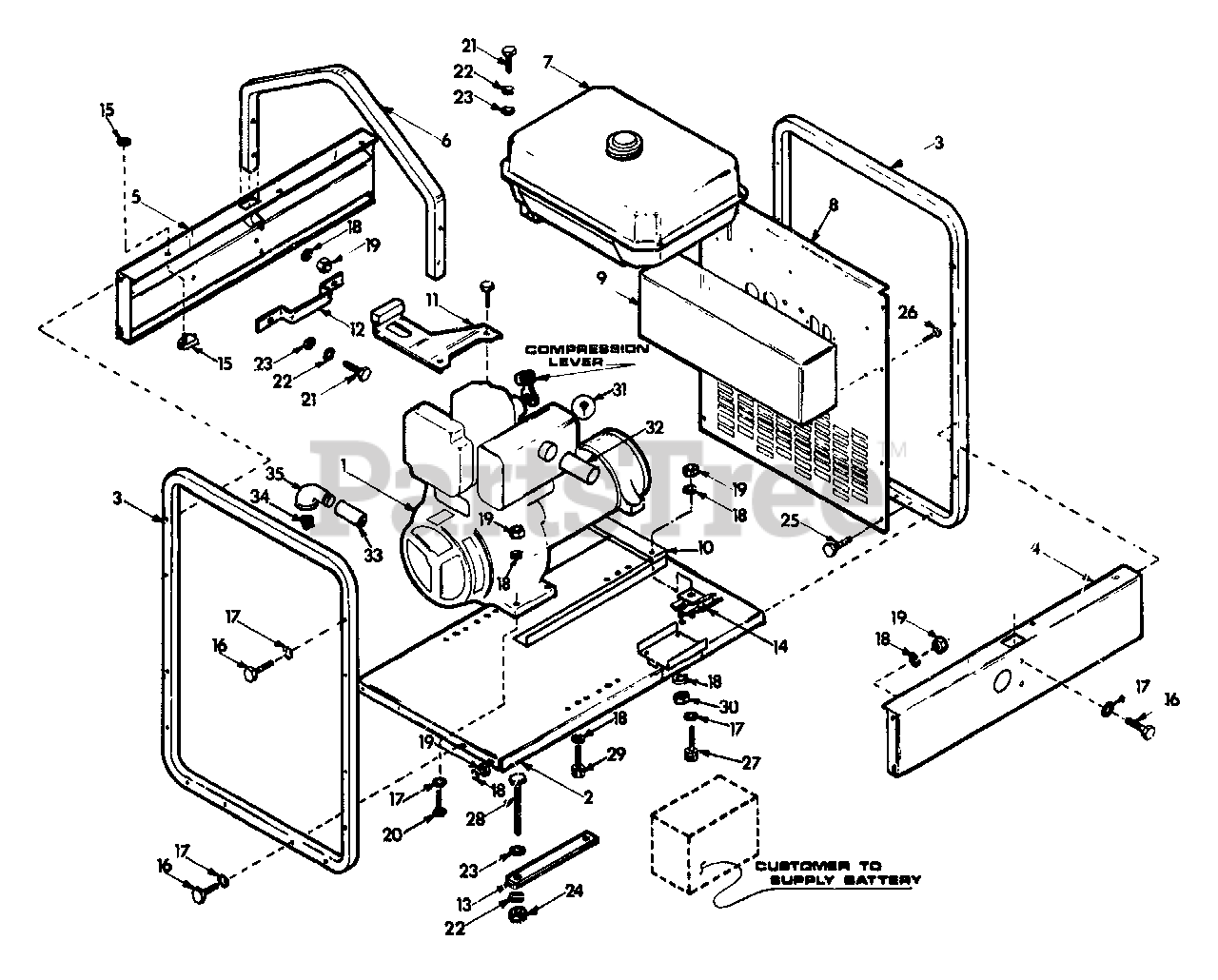

4W114 (8926-0) - Generac 3,600 Watt Portable Generator Mounting Base Parts Diagram

3,600 Watt Portable Generator

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 71891

Engine assembly

$2.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 71873

Mounting base cradle

$

$

Currently unavailable

3

Briggs & Stratton 71876

Cradle end loop

$

$

Currently unavailable

4

Briggs & Stratton 71877

LH Fuel tank support

$

$

Currently unavailable

5

Briggs & Stratton 71874

RH Fuel tank support

$

$

Currently unavailable

6

Briggs & Stratton 70708

Lifting eye

$

$

Currently unavailable

7

Briggs & Stratton 71886

Fuel tank
(Superseded to 71886GS)

$399.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 71878

Receptacle panel

$

$

Currently unavailable

9

Briggs & Stratton 73503

Receptacle panel back
(Superseded to 7073503YP)

$455.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 71882

Generator rear support

$

$

Currently unavailable

11

Briggs & Stratton 73504

Torque strap
(Superseded to 7073504YP)

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 71885

Vibration extension bracket

$

$

Currently unavailable

13

UNKNOWN

$

$

Not available

14

UNKNOWN

$

$

Not available

15

Briggs & Stratton 44951

Battery holddown bracket

$

$

Currently unavailable

16

Briggs & Stratton 70642

Engine mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

17

UNKNOWN

$

$

Not available

18

Briggs & Stratton 42782

5/16"-18 x 1-1/2" Capscrew

$

$

Currently unavailable

19

Briggs & Stratton 22145

5/16" Flatwasher

$

$

Not available

20

Briggs & Stratton 22129

5/16" Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22259

5/16"-18 Hex nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 30231

5/16"-18 x 1-1/2" Capscrew

$

$

Currently unavailable

23

Briggs & Stratton 53395

1/4"-20 x 1/2" Capscrew

$

$

Currently unavailable

24

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

22473

1/4" Flatwasher

$

$

Not available

26

UNKNOWN

$

$

Not available

27

Briggs & Stratton 22127

1/4"-20 Hex nut

$

$

Not available

28

Briggs & Stratton 58442

1/4"-20 x 1/2" Screw

$

$

Currently unavailable

29

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 60706

5/16"-18 x 3/4" Capscrew

$

$

Currently unavailable

31

Briggs & Stratton 45000

1/4"-20 x 7" Capscrew
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 45771

M8-1.25 Hex nut

$

$

Not available

34

Briggs & Stratton 56893

No. 10-32 x 1/2" Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

35

Briggs & Stratton 73534

Exhaust extension

$

$

Currently unavailable

36

Briggs & Stratton 73536

Oil drain tube

$

$

Currently unavailable

37

Briggs & Stratton 26073A

1/4" NPT pipe plug

$

$

Currently unavailable

38

Briggs & Stratton 29296

1/4" x 90ø street elbow

$

$

Currently unavailable
