4W115A (8928-1) - Generac 4,000 Watt Portable Generator Replacement Parts Illustration - AC Generator Parts Diagram

4,000 Watt Portable Generator

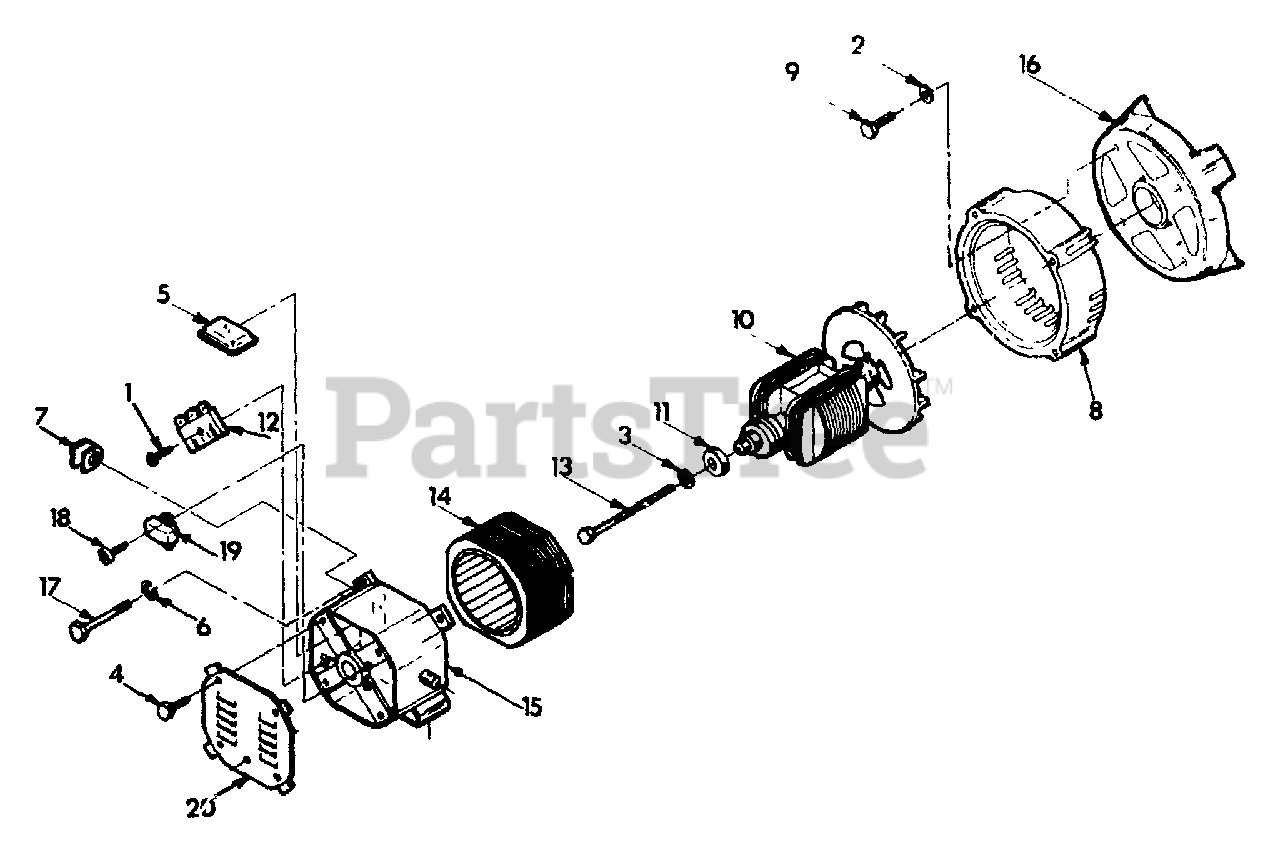

Replacement Parts Illustration - AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 66849A

Screw - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22129

Flatwasher 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 67451

Flatwasher (Special) - M8

$

$

Currently unavailable

4

Briggs & Stratton 74908

Screw - M5-0.80 x 8mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67107

Voltage regulator
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097

Lockwasher - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66365D

Adapter casting
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 235641

Hex screw - 5/16"-24 x 2-1/2"

$

$

Currently unavailable

10

Briggs & Stratton 74714

Rotor assembly

$

$

Currently unavailable

11

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

13

Briggs & Stratton 75431

Rotor bolt - 5/16"-24 x 8.5"
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 74707

Stator assembly
(Superseded to 5020883SM)

$9.49

$

In Stock, only 3 left!

0

15

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

16

Briggs & Stratton 68342

Adapter spacer

$

$

Currently unavailable

17

Briggs & Stratton 66449H

Stator bolt - M6-1.00 x 140mm

$

$

Currently unavailable

18

Briggs & Stratton 66849

Screw - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 66386

Brush holder
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

20

Briggs & Stratton 67025

Rear cover

$

$

Currently unavailable
