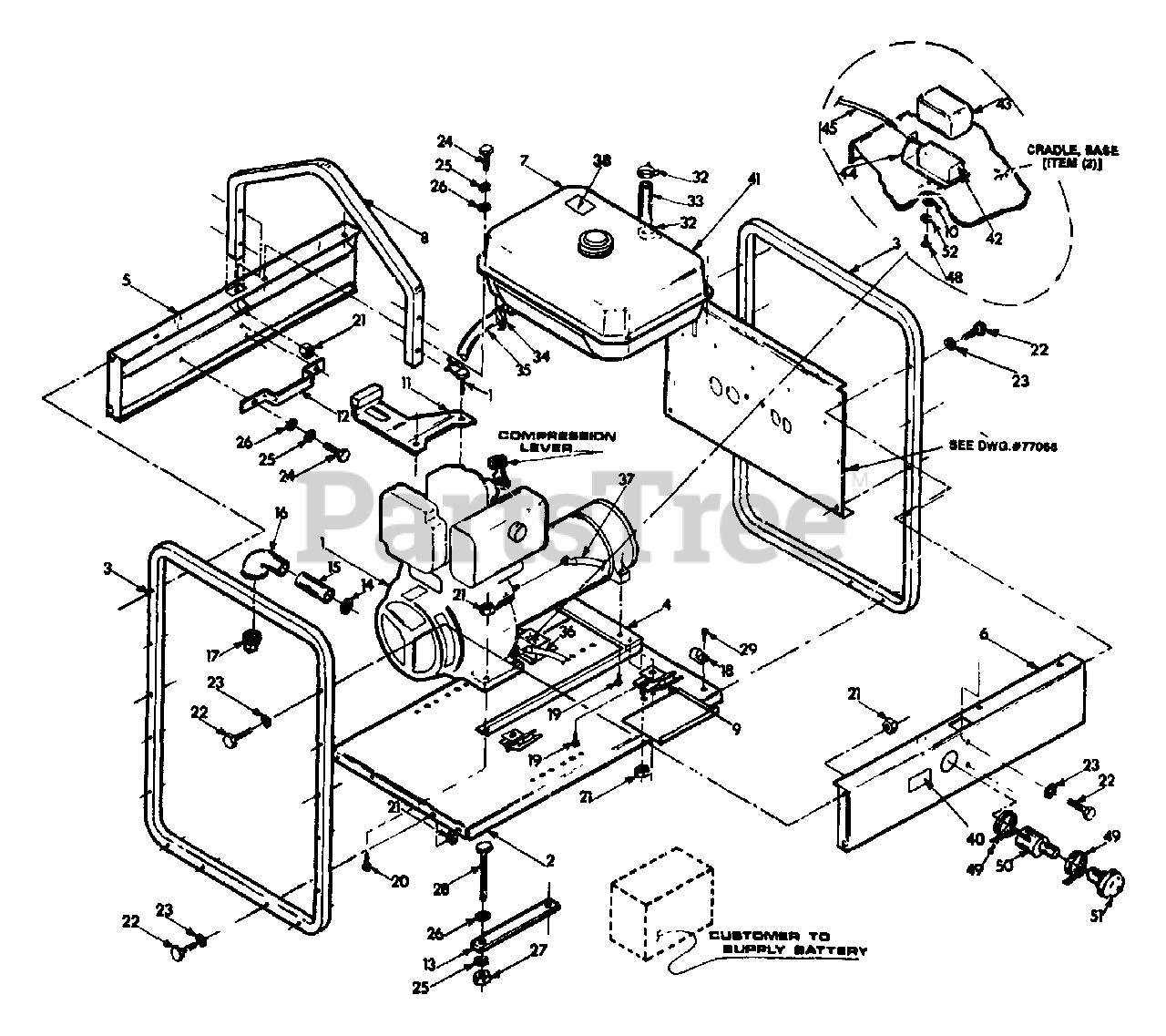

4W115A (9160-0) - Generac 5,000 Watt Portable Generator Cradle Assembly Parts Diagram

5,000 Watt Portable Generator

Cradle Assembly Parts Diagram

  • Title

1

Briggs & Stratton 77637

Engine assembly -- Yanmar Model L90E-DGE

$

$

Currently unavailable

2

Briggs & Stratton 71873

Cradle base

$

$

Currently unavailable

3

Briggs & Stratton 71876

Cradle loop

$

$

Currently unavailable

4

Briggs & Stratton 73527

Sub-base

$

$

Not available

5

Briggs & Stratton 71874

Right hand fuel tank support

$

$

Currently unavailable

6

Briggs & Stratton 71877

Lefthand fuel tank support

$

$

Currently unavailable

7

Briggs & Stratton 71886

Fuel tank
(Superseded to 71886GS)

$399.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 70708

Lifting bracket

$

$

Currently unavailable

9

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 31879

No. 4 Washer

$35.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 73504

Torque strap
(Superseded to 7073504YP)

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 71885

Bracket retainer

$

$

Currently unavailable

13

Briggs & Stratton 44951

Battery hold-down bracket

$

$

Currently unavailable

14

Briggs & Stratton 29910

Seal washer

$

$

Currently unavailable

15

Briggs & Stratton 73536

Oil drain extension

$

$

Currently unavailable

16

Briggs & Stratton 29296

90-degree street elbow

$

$

Currently unavailable

17

Briggs & Stratton 26073A

1/4" Pipe plug

$

$

Currently unavailable

18

Briggs & Stratton 25433

Grounding lug

$

$

Not available

19

Briggs & Stratton 39253

M8-1.25 x 20mm Hex head machine screw
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 39414

M8-1.25 x 35mm Hex head machine screw
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 52858

M8-1.25 Flanged nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 39827

M8-1.25 x 45mm Hex head capscrew

$

$

Currently unavailable

23

Briggs & Stratton 22145

5/16" Flat washer

$

$

Not available

24

Briggs & Stratton 53395

1/4"-20 x 1/2" Hex head capscrew

$

$

Currently unavailable

25

Briggs & Stratton 22097

1/4" Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

26

22473

1/4" Flat washer

$

$

Not available

27

Briggs & Stratton 22127

1/4-20 Hex nut

$

$

Not available

28

Briggs & Stratton 45000

1/4-20 x 7" Hex head capscrew
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 24489

No. 10 x 3/8" Screw

$

$

Currently unavailable

30

Briggs & Stratton 58443

1/4-20 x 3/8" Screw
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 48031B

Hose clamp
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 73530

6" long Fuel line

$

$

Currently unavailable

34

Briggs & Stratton 48031D

Hose clamp

$

$

Currently unavailable

35

Briggs & Stratton 52220C

3/8" dia. x 14-1/2" long Fuel hose

$

$

Currently unavailable

36

Briggs & Stratton 4411419

No. 4 AWG x 20" long Wire assembly

$

$

Currently unavailable

37

Briggs & Stratton 4411465

No. 4 AWG x 9" long Wire assembly

$

$

Currently unavailable

38

Briggs & Stratton 73054A

Fuel shutoff decal

$

$

Currently unavailable

39

Briggs & Stratton 39178

"Danger -- Warning" decal

$

$

Currently unavailable

40

Briggs & Stratton 77816

"Caution -- Hot" decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 72079

Decal

$

$

Currently unavailable

42

Briggs & Stratton 77071

Solenoid

$

$

Currently unavailable

43

Briggs & Stratton 77070

Solenoid boot

$

$

Currently unavailable

44

Briggs & Stratton 77074

Solenoid bracket

$

$

Currently unavailable

45

Briggs & Stratton 77072

Cable

$

$

Currently unavailable

48

Briggs & Stratton 51717

M3-0.5 x 10mm Hex head machine screw
(Superseded to 7050711YP)

$16.99

$

In Stock, Qty 12

0

49

Briggs & Stratton 35586

No. 20 Hose clamp

$

$

Currently unavailable

50

Briggs & Stratton 77097

Spark arrestor adaptor

$

$

Not available

51

Briggs & Stratton 77096

Spark arrestor
(Superseded to 7077096YP)

$45.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22155

M3 Lock washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0
