4W115A (9160-0) - Generac 5,000 Watt Portable Generator Receptacle Panel Parts Diagram

5,000 Watt Portable Generator

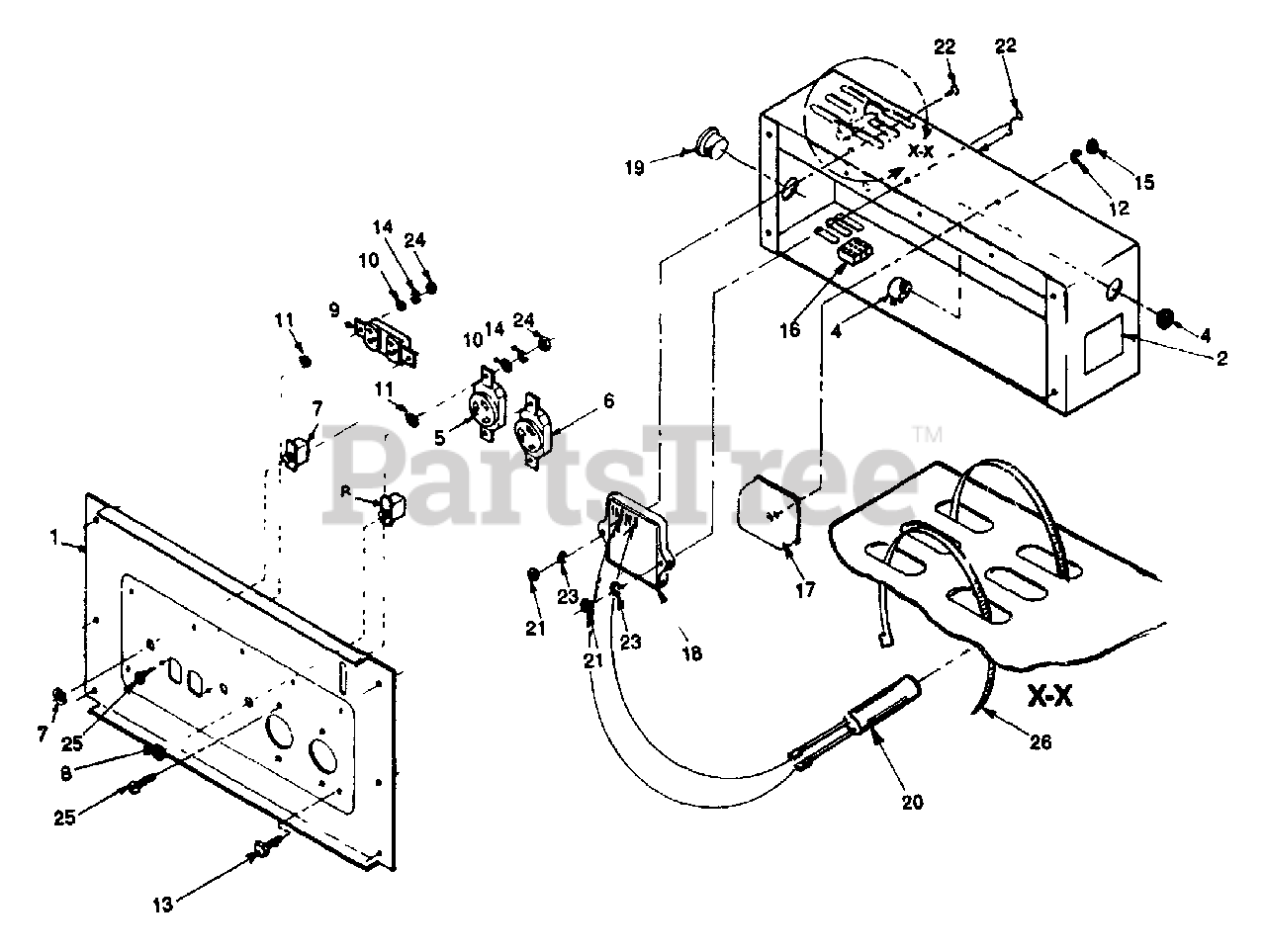

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 77060

Receptacle panel

$

$

Currently unavailable

2

Briggs & Stratton 78850

Start instructions decal

$

$

Currently unavailable

3

Briggs & Stratton 77064

Panel back

$

$

Currently unavailable

4

Briggs & Stratton 34303

Start switch

$

$

Currently unavailable

5

Briggs & Stratton 68867

120/240 volts, 20 amp outlet
(Superseded to 68867GS)

$49.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868

120 volts, 30 amp receptacle
(Superseded to 705932)

$39.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$10.99

$

In Stock, Qty 20+

0

8

75207A

30 amp Circuit breaker

$

$

Not available

9

Briggs & Stratton 68759

120 volts, 20 amp Duplex outlet
(Superseded to 68759GS)

$26.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 23365

No. 8 Shakeproof washer
(Superseded to 5023365)

$473.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22155

No. 6 Lock washer
(Superseded to 5022155)

$138.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$

$

Not available

14

Briggs & Stratton 22264

No. 8 Lock washer

$

$

Not available

15

Briggs & Stratton 22188

No. 6-32 Hex nut

$

$

Currently unavailable

16

Briggs & Stratton 63993

9-pin Connector

$

$

Currently unavailable

17

Briggs & Stratton 40366

120 volts a-c relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 74074

A-C voltage regulator

$

$

Currently unavailable

19

Briggs & Stratton 58221

1-3/4" dia. Button plug

$

$

Not available

20

Briggs & Stratton 77244

Field boost assembly

$

$

Currently unavailable

21

Briggs & Stratton 22158

No. 10-32 Hex nut
(Superseded to 5022158)

$26.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Screw

$

$

Currently unavailable

23

Briggs & Stratton 22152

No. 10 Lock washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 51715

M4-0.70 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75475

M4-0.70 x 10mm Screw

$

$

Not available

26

Briggs & Stratton 31980

Tie-Wrap

$

$

Currently unavailable
