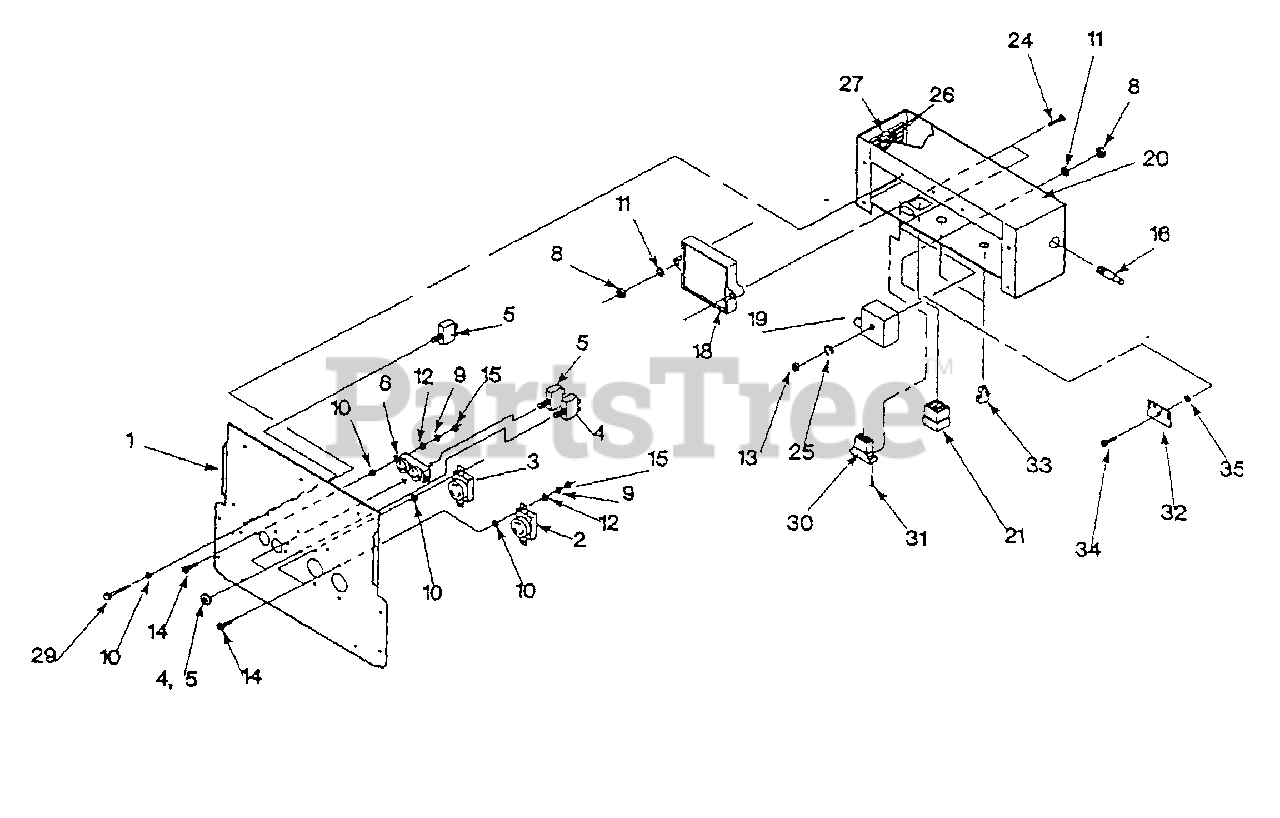

4W115D (9160-3) - Generac 5,000 Watt Portable Generator Control Panel Parts Diagram

5,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 86320

Control panel

$

$

Currently unavailable

2

Briggs & Stratton 68867

120/240 volt Twislock outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 68868

120V, 30A Twislock outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

4

75207A

30 amp Circuit breaker

$

$

Not available

5

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759

120V, 20A Duplex outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 86859

Control panel silkscreen

$

$

Currently unavailable

8

Briggs & Stratton 22158

No. 10-32 Hex nut
(Superseded to 5022158)

$30.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 22264

No. 8 Lock washer

$

$

Not available

10

Briggs & Stratton 23365

No. 8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22152

No. 10 Lock washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22188

No. 6-32 Hex nut

$

$

Currently unavailable

14

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

15

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 34303

Starting switch

$

$

Currently unavailable

17

Briggs & Stratton 27565

P-248, 40mm Electric tape

$

$

Currently unavailable

18

Briggs & Stratton 83049

AC voltage regulator
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 40366

120 volt AC relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83628

Control back panel

$

$

Currently unavailable

21

Briggs & Stratton 63993

9-pin Connector

$

$

Currently unavailable

22

Briggs & Stratton 74094

"Y" connector (1/4")
(Superseded to 74094GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 37554A

No. 3 1000mm Sleeving

$

$

Currently unavailable

24

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Screw

$

$

Currently unavailable

25

Briggs & Stratton 22155

No. 6 Lock washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 28739A

Tie wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 77244

Field boost assembly

$

$

Currently unavailable

28

Briggs & Stratton 74655

"Y" connector (3/16")

$

$

Currently unavailable

29

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22694

Receptacle housing (black)
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 66855

Rivet

$

$

Currently unavailable

32

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

33

Briggs & Stratton 63378

Cable tie holder

$

$

Not available

34

Briggs & Stratton 33531

No. 10-32 x 3/4" Screw

$

$

Currently unavailable

35

Briggs & Stratton 23762

No. 10 Shakeproof washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0
