4X90HU - MTD Engine 4X90HU Engine Parts Diagram

Engine

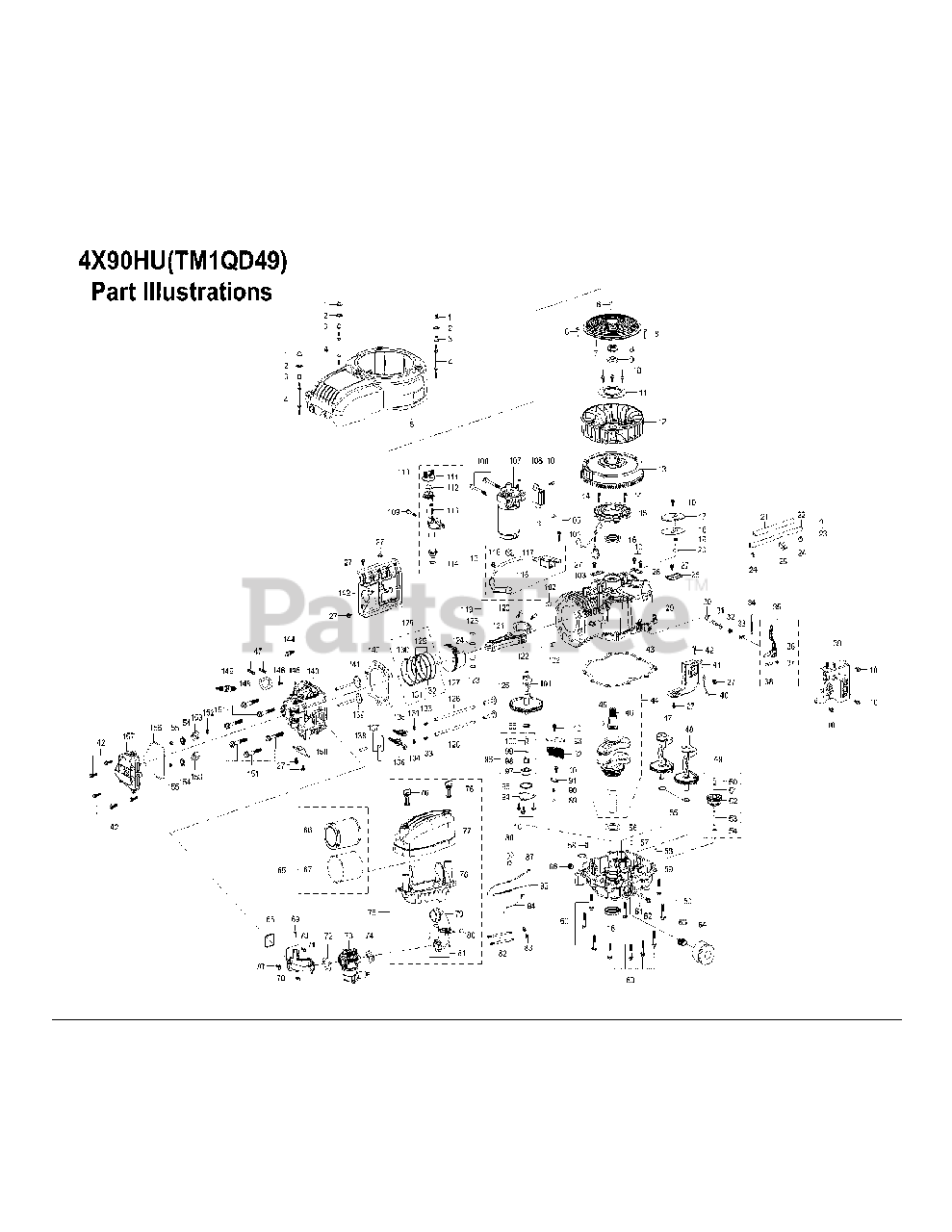

4X90HU Engine Parts Diagram

  • Title

1

MTD 712-04276

NUT
(Superseded to 712-04276A)

$5.99

$

Usually ships in 3-6 days

0

2

MTD 736-05109

WASHER

$5.99

$

Usually ships in 3-6 days

0

3

MTD 750-05320

ENGINE SHROUD SPACER

$3.99

$

Usually ships in 3-6 days

0

4

MTD 931-10865

STARTER / SHROUD STUD M6×113

$6.99

$

Usually ships in 3-6 days

0

5

MTD 931-10876

SHROUD/AIR SHIELD

$55.99

$

Usually ships in 3-6 days

0

6

MTD 710-05303

SCREW 5.5×25

$3.99

$

Usually ships in 3-6 days

0

7

MTD 951-12205

DEBRIS SHIELD

$9.49

$

Usually ships in 3-6 days

0

8

MTD 912-05102

NUT M20×1.5

$7.99

$

Usually ships in 3-6 days

0

9

MTD 936-05110

WASHER 20.5×5×40

$5.99

$

Usually ships in 3-6 days

0

10

MTD 710-04916

BOLT M6×14

$4.49

$

In Stock, only 2 left!

0

11

MTD 951-14889

VANE PLATE

$9.49

$

Usually ships in 3-6 days

0

12

MTD 931-10866

COOLING FAN

$45.99

$

Usually ships in 3-6 days

0

13

MTD 951-14890

FLYWHEEL

$229.99

$

Usually ships in 3-6 days

0

14

MTD 710-06285

BOLT M5×25

$5.99

$

Usually ships in 3-6 days

0

15

MTD 925-06298

CHARGING COIL

$88.99

$

Usually ships in 3-6 days

0

16

MTD 937-05067

OIL SEAL 38×58×8

$14.99

$

In Stock, only 1 left!

0

17

MTD 907-06254

BREATHER COVER

$7.99

$

Usually ships in 3-6 days

0

18

MTD 921-04738

GASKET, BREATHER COVER

$5.49

$

Usually ships in 3-6 days

0

19

MTD 732-04718

BREATHER VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

20

MTD 951-11614

SECOND AIR VAVLE

$3.99

$

Usually ships in 3-6 days

0

21

MTD 935-05083

TUBING PROTECTIVE SIEEVE

$4.99

$

Usually ships in 3-6 days

0

22

MTD 993-00171

FUEL HOSE 6.3×12.5×250

$8.99

$

Usually ships in 3-6 days

0

23

MTD 951-14091

PLUG

$4.49

$

Usually ships in 3-6 days

0

24

MTD 951-11700

CLAMP, FUEL HOSE
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

25

MTD 723-04071

WIRE CLAMP
(Superseded to 723-04071A)

$2.99

$

Usually ships in 3-6 days

0

26

MTD 951-14922

WIRE PLATE II

$4.99

$

Usually ships in 3-6 days

0

27

MTD 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 8

0

28

MTD 907-06255

HOOK

$4.49

$

Usually ships in 3-6 days

0

29

MTD 951-14891

CRANKCASE
(Superseded to 951-14891A)

$303.99

$

Usually ships in 3-6 days

0

30

MTD 911-06416

GOVERNOR GEAR SHAFT

$4.99

$

Usually ships in 3-6 days

0

31

MTD 936-05114

WASHER 8×0.8×16

$4.99

$

Usually ships in 3-6 days

0

32

MTD 951-12388

OIL SEAL 8×14×4

$3.99

$

Usually ships in 3-6 days

0

33

MTD 714-04077

COTTER PIN

$5.99

$

In Stock, only 1 left!

0

34

MTD 932-05291

GOVERNOR SPRING

$6.99

$

Usually ships in 3-6 days

0

35

MTD 951-14919

GOVERNOR LEVER
(Superseded to 951-14919A)

$5.49

$

Usually ships in 3-6 days

0

36

MTD 951-14920

GOVERNOR ARM
(Superseded to 951-14920A)

$5.49

$

Usually ships in 3-6 days

0

37

MTD 712-05015

GOVERNOR ARM NUT M6

$6.49

$

In Stock, only 4 left!

0

38

MTD 710-04908

GOVERNOR ARM BOLT

$5.99

$

Usually ships in 3-6 days

0

39

MTD 951-05249

GOVERNOR GEAR BRACKET ASSY

$36.99

$

Usually ships in 3-6 days

0

40

MTD 925-06302

GROUND CONNECTION

$4.99

$

Usually ships in 3-6 days

0

41

MTD 931-10870

SHROUD/RIGHT

$12.99

$

Usually ships in 3-6 days

0

42

MTD 710-04919

BOLT M6×25

$4.49

$

Usually ships in 3-6 days

0

43

MTD 921-04741

GASKET, CRANKCASE COVER

$15.99

$

In Stock, only 1 left!

0

44

MTD 951-05245

CRANKSHAFT ASSEMBLY

$268.99

$

Usually ships in 3-6 days

0

45

MTD 951-10307

WOODRUFF KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

46

MTD 951-14892

CRANKSHAFT

$239.99

$

Usually ships in 3-6 days

0

47

MTD 917-05292

BALANCE SHAFT/L
(Superseded to 917-05292A)

$75.99

$

Usually ships in 3-6 days

0

48

MTD 917-05293

BALANCE SHAFT/R
(Superseded to 917-05293A)

$75.99

$

Usually ships in 3-6 days

0

49

MTD 951-05246

GOVERNOR GEAR ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

50

MTD 931-09778

GOVERNOR SLIDE CAP

$4.49

$

Usually ships in 3-6 days

0

51

MTD 916-05005

GOVERNOR SHAFT STOP RING

$3.99

$

Usually ships in 3-6 days

0

52

MTD 951-14893

GOVERNOR GEAR

$17.99

$

Usually ships in 3-6 days

0

53

MTD 911-06193

GOVERNOR SHAFT

$4.49

$

Usually ships in 3-6 days

0

54

MTD 936-05053

GOVERNOR GEAR WASHER

$4.99

$

Usually ships in 3-6 days

0

55

MTD 936-05112

WASHER 17.2×26×1

$4.99

$

In Stock, only 2 left!

0

56

MTD 936-05111

WASHER 38.3×54×1

$4.99

$

Usually ships in 3-6 days

0

57

MTD 715-04092

DOWEL PIN 7×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

58

MTD 715-04096

DOWEL PIN 9×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

59

MTD 951-14894

CRANKCASE COVER
(Superseded to 951-15515)

$197.99

$

Usually ships in 3-6 days

0

60

MTD 710-06289

BOLT M8×45

$4.49

$

Usually ships in 3-6 days

0

61

MTD 736-04560

WASHER 8.3×1.5×17

$3.99

$

Usually ships in 3-6 days

0

62

MTD 710-05313

BOLT M8×15

$3.99

$

Usually ships in 3-6 days

0

63

MTD 951-12253

FILTER CONNECTOR PIPE

$7.49

$

Usually ships in 3-6 days

0

64

MTD 951-12690

OIL FILTER

$17.99

$

In Stock, Qty 20+

0

65

MTD 937-05066

AIR FILTER ELEMENT

$22.99

$

In Stock, Qty 20+

0

66

N/A

PAPER FILTER

$

$

Not available

67

N/A

SPONGE FILTER

$

$

Not available

68

MTD 951-14915

INTAKE PIPE RING

$4.99

$

In Stock, only 3 left!

0

69

MTD 710-06179

SCREW 4.2×20

$5.99

$

Usually ships in 3-6 days

0

70

MTD 710-06292

BOLT M6×22

$4.99

$

Usually ships in 3-6 days

0

71

MTD 931-10879

INTAKE PIPE

$22.99

$

In Stock, only 1 left!

0

72

MTD 951-14947

CARBURETOR GASKET

$7.99

$

In Stock, Qty 13

0

73

MTD 993-00170

CARBURETOR
(Superseded to 993-00170A)

$94.99

$

In Stock, only 3 left!

0

74

MTD 921-04745

AIR FILTER GASKET

$6.99

$

In Stock, Qty 14

0

75

MTD 931-05257

AIR FILTER ASSEMBLY

$55.99

$

Usually ships in 3-6 days

0

76

MTD 910-06308

AIR FILTER COVER SCREW

$8.99

$

Usually ships in 3-6 days

0

77

MTD 931-10869

AIR FILTER COVER

$

$

Not available

78

MTD 931-10880

SILENCER PLATE

$19.99

$

Usually ships in 3-6 days

0

79

MTD 931-05262

MANIFOLD

$19.99

$

Usually ships in 3-6 days

0

80

MTD 951-12328

RUBBER CAP

$3.99

$

In Stock, only 2 left!

0

81

MTD 710-06293

SCREW 4.2×12

$5.99

$

Usually ships in 3-6 days

0

82

MTD 710-06319

STUD M6×92

$5.99

$

Usually ships in 3-6 days

0

83

MTD 712-05015

GOVERNOR ARM NUT M6

$6.49

$

In Stock, only 4 left!

0

84

MTD 951-14918

CHOKE LEVER
(Superseded to 951-14918A)

$6.99

$

In Stock, only 1 left!

0

85

MTD 951-12231

IDLE SPRING

$3.99

$

In Stock, Qty 10

0

86

MTD 951-11644

DRAIN BOLT

$9.49

$

In Stock, Qty 6

0

87

MTD 951-14917

THROTTLE LINKAGE

$6.99

$

In Stock, only 1 left!

0

88

MTD 951-14916

VENTING HOUSE

$4.99

$

Usually ships in 3-6 days

0

89

MTD 941-05137

STEEL BALL 8.731

$4.49

$

Usually ships in 3-6 days

0

90

MTD 932-05290

PRESSURE RELEASE VALVE SPRING

$4.99

$

Usually ships in 3-6 days

0

91

MTD 951-14895

PRESSURE RELEASE VALVE COVER

$4.99

$

Usually ships in 3-6 days

0

92

MTD 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

93

MTD 931-10867

FILTER COVER

$4.99

$

Usually ships in 3-6 days

0

94

MTD 951-14896

OIL SEPARATER

$4.99

$

Usually ships in 3-6 days

0

95

MTD 921-04742

GASKET, CYLINDER HEAD COVER

$6.99

$

In Stock, only 1 left!

0

96

MTD 951-05247

OIL PUMP ASSEMBLY

$54.99

$

Usually ships in 3-6 days

0

97

MTD 951-14924

OIL PUMP OUTER SHAFT ROTATOR

$7.49

$

Usually ships in 3-6 days

0

98

MTD 951-14923

OIL PUMP INNER SHAFT ROTATOR

$7.49

$

Usually ships in 3-6 days

0

99

MTD 951-14897

OIL PUMP PIN

$3.99

$

Usually ships in 3-6 days

0

100

MTD 911-06419

OIL PUMP SHAFT

$5.49

$

Usually ships in 3-6 days

0

101

MTD 911-06413

CAMSHAFT
(Superseded to 753-08688)

$79.99

$

Usually ships in 3-6 days

0

102

MTD 715-04122

DOWEL PIN 12×16

$3.99

$

In Stock, only 2 left!

0

103

MTD 951-14921

WIRE PLATE I

$4.99

$

Usually ships in 3-6 days

0

104

MTD 710-04943

BOLT M6×28

$3.99

$

In Stock, only 2 left!

0

105

MTD 915-05026

DOWEL PIN 10×12

$4.99

$

Usually ships in 3-6 days

0

106

MTD 925-06299

REGULATOR

$37.99

$

In Stock, only 1 left!

0

107

MTD 925-06300

ELECTRIC STARTER

$273.99

$

Usually ships in 3-6 days

0

108

MTD 710-06286

BOLT M8×80

$4.99

$

Usually ships in 3-6 days

0

109

MTD 710-06287

BOLT M6×45

$4.99

$

Usually ships in 3-6 days

0

110

MTD 924-05033

DIPSTICK ASSEMBLY
(Superseded to 924-05033A)

$24.99

$

Usually ships in 3-6 days

0

111

MTD 931-10877

DIPSTICK COVER

$15.99

$

Usually ships in 3-6 days

0

112

MTD 921-04739

UPPER O-RING

$4.99

$

In Stock, only 1 left!

0

113

MTD 931-10878

DIPSTICK SEAT

$13.99

$

Usually ships in 3-6 days

0

114

MTD 921-04740

LOWER O-RING

$4.99

$

Usually ships in 3-6 days

0

115

MTD 994-00128

IGNITION COIL ASSEMBLY

$84.99

$

In Stock, only 1 left!

0

116

MTD 750-05314

VIBRATION PAD

$3.99

$

In Stock, only 1 left!

0

117

MTD 723-04071

WIRE CLAMP
(Superseded to 723-04071A)

$2.99

$

Usually ships in 3-6 days

0

118

MTD 994-00128

IGNITION COIL

$84.99

$

In Stock, only 1 left!

0

119

MTD 951-14902

CONNECTING ROD

$70.99

$

Usually ships in 3-6 days

0

120

MTD 710-05319

CONNECTING ROD BOLT

$4.49

$

In Stock, Qty 10

0

121

MTD n/a

CONNECTING ROD CAP

Note: Order Ref 120

$

$

Currently unavailable

122

MTD n/a

CONNECTING ROD

Note: Order Ref 120

$

$

Currently unavailable

123

MTD 951-11953

CIRCLIP, PISTON PIN
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 11

0

124

MTD 711-06415

PISTON PIN
(Superseded to 911-06415)

$9.49

$

Usually ships in 3-6 days

0

125

MTD 951-11962

TAPPET

$7.99

$

Usually ships in 3-6 days

0

126

MTD 951-14898

PUSH ROD

$21.99

$

Usually ships in 3-6 days

0

127

MTD 951-14905

PISTON

$51.99

$

Usually ships in 3-6 days

0

128

MTD 951-05248

PISTON RING SET

$26.99

$

In Stock, only 1 left!

0

129

MTD n/a

SCRAPER RING, OIL RING

Note: Order Ref 128

$

$

Currently unavailable

130

MTD n/a

1ST PISTON RING

Note: Order Ref 128

$

$

Currently unavailable

131

MTD n/a

2ND PISTON RING

Note: Order Ref 128

$

$

Currently unavailable

132

MTD n/a

LINING RING, OIL RING

Note: Order Ref 128

$

$

Currently unavailable

133

MTD 951-14899

VALVE CLEARANCE ADJUSTMENT SCREWS COMBINATION

$5.49

$

Usually ships in 3-6 days

0

134

MTD 912-05103

NUT

$5.99

$

Usually ships in 3-6 days

0

135

MTD 951-14900

ROCKER ARM

$17.99

$

Usually ships in 3-6 days

0

136

MTD 951-14901

ROCKER ARM

$17.99

$

Usually ships in 3-6 days

0

137

MTD 911-06414

ROCKER ARM CORE SHAFT

$5.49

$

Usually ships in 3-6 days

0

138

MTD 915-05035

ROCKER ARM CORE SHAFT BOLT

$7.49

$

Usually ships in 3-6 days

0

139

MTD 951-14909

EXHAUST VAVLE

$24.99

$

Usually ships in 3-6 days

0

140

MTD 921-04743

GASKET, CYLINDER HEAD

$15.99

$

In Stock, only 3 left!

0

141

MTD 951-14908

INTAKE VAVLE

$24.99

$

Usually ships in 3-6 days

0

142

MTD 931-10871

SHROUD/LIFT

$15.99

$

Usually ships in 3-6 days

0

143

MTD 918-07090

CYLINDER HEAD

$270.99

$

Usually ships in 3-6 days

0

144

MTD 710-05305

HOOK BOLT

$3.99

$

In Stock, only 2 left!

0

145

MTD 936-05113

WASHER 5.3×1×10

$5.49

$

Usually ships in 3-6 days

0

146

MTD 710-06290

BOLT M5×10

$4.99

$

Usually ships in 3-6 days

0

147

MTD 910-06299

STUD

$4.49

$

Usually ships in 3-6 days

0

148

MTD 921-04744

GASKET, MUFFLER

$6.99

$

In Stock, Qty 5

0

149

MTD 951-10292

SPARK PLUG(F6RTC)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

150

MTD 931-10868

SHROUD

$7.49

$

Usually ships in 3-6 days

0

151

MTD 710-06291

BOLT M10×1.25×70

$4.99

$

Usually ships in 3-6 days

0

152

MTD 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$10.99

$

In Stock, Qty 7

0

153

MTD 951-14910

VALVE SPRING

$9.49

$

Usually ships in 3-6 days

0

154

MTD 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

155

MTD 951-14912

VALVE COLLET
(Superseded to 951-14912A)

$3.49

$

Usually ships in 3-6 days

0

156

MTD 951-14913

VALVE COVER RING

$12.99

$

Usually ships in 3-6 days

0

157

MTD 951-14914

CYLINDER HEAD COVER

$26.99

$

Usually ships in 3-6 days

0

MTD 952Z4X90HU

Complete Engine
(Superseded to 952Z4X90HUA)

Note: (not shown)

$1437.99

$

Usually ships in 3-6 days

0

MTD 919-05133

HEAD ASM CYL:X90

Note: (not shown)

$275.99

$

Usually ships in 3-6 days

0
