4X90HU - Troy-Bilt Engine 4X90HU Engine Parts Diagram

Engine

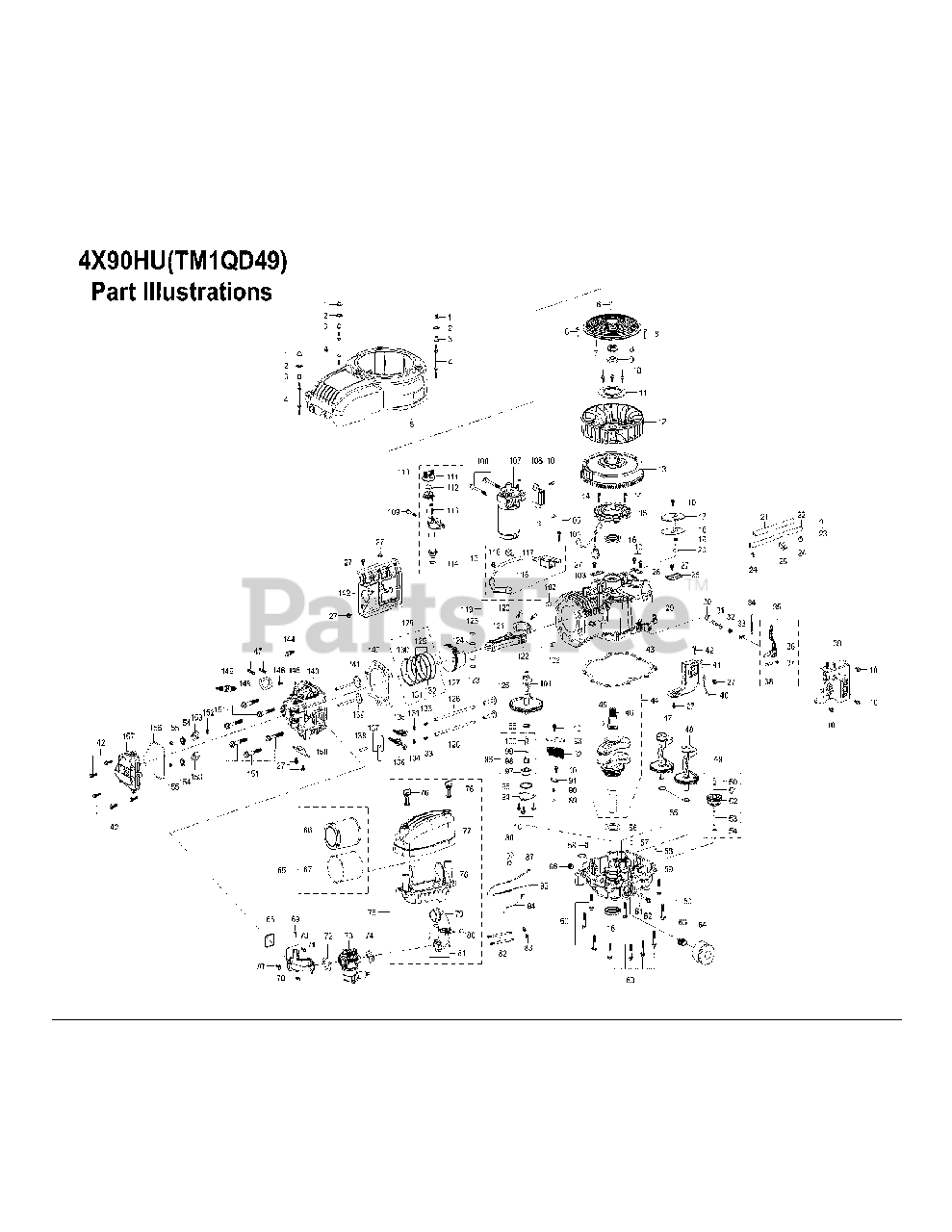

4X90HU Engine Parts Diagram

  • Title

1

Troy-Bilt 712-04276

NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 750-05320

ENGINE SHROUD SPACER

$4.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 931-10865

STARTER / SHROUD STUD M6×113

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 931-10876

SHROUD/AIR SHIELD

$59.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-05303

SCREW 5.5×25

$3.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 951-12205

DEBRIS SHIELD

$9.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 912-05102

NUT M20×1.5

$8.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 936-05110

WASHER 20.5×5×40

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-04916

BOLT M6×14

$4.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 951-14889

VANE PLATE

$10.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 931-10866

COOLING FAN

$49.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-14890

FLYWHEEL

$247.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-06285

BOLT M5×25

$6.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 925-06298

CHARGING COIL

$94.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 937-05067

OIL SEAL 38×58×8

$15.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 907-06254

BREATHER COVER

$8.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 921-04738

GASKET, BREATHER COVER

$5.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 732-04718

BREATHER VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 951-11614

SECOND AIR VAVLE

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 935-05083

TUBING PROTECTIVE SIEEVE

$5.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 993-00171

FUEL HOSE 6.3×12.5×250

$9.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 951-14091

PLUG

$4.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 951-11700

CLAMP, FUEL HOSE
(Superseded to 951-11700A)

$4.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 723-04071

WIRE CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 951-14922

WIRE PLATE II

$4.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 8

0

28

Troy-Bilt 907-06255

HOOK

$4.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 951-14891

CRANKCASE
(Superseded to 951-14891A)

$326.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 911-06416

GOVERNOR GEAR SHAFT

$4.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 936-05114

WASHER 8×0.8×16

$5.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 951-12388

OIL SEAL 8×14×4

$4.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 714-04077

COTTER PIN

$6.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 932-05291

GOVERNOR SPRING

$6.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-14919

GOVERNOR LEVER
(Superseded to 951-14919A)

$5.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 951-14920

GOVERNOR ARM
(Superseded to 951-14920A)

$5.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-05015

GOVERNOR ARM NUT M6

$6.99

$

In Stock, only 4 left!

0

38

Troy-Bilt 710-04908

GOVERNOR ARM BOLT

$6.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 951-05249

GOVERNOR GEAR BRACKET ASSY

$

$

Not available

40

Troy-Bilt 925-06302

GROUND CONNECTION

$5.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 931-10870

SHROUD/RIGHT

$12.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-04919

BOLT M6×25

$4.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 921-04741

GASKET, CRANKCASE COVER

$16.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 951-05245

CRANKSHAFT ASSEMBLY

$288.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-10307

WOODRUFF KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 8

0

46

Troy-Bilt 951-14892

CRANKSHAFT

$257.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 917-05292

BALANCE SHAFT/L
(Superseded to 917-05292A)

$80.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 917-05293

BALANCE SHAFT/R
(Superseded to 917-05293A)

$80.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 951-05246

GOVERNOR GEAR ASSEMBLY

$34.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 931-09778

GOVERNOR SLIDE CAP

$4.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 916-05005

GOVERNOR SHAFT STOP RING

$4.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 951-14893

GOVERNOR GEAR

$17.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 911-06193

GOVERNOR SHAFT

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 936-05053

GOVERNOR GEAR WASHER

$5.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 936-05112

WASHER 17.2×26×1

$5.49

$

In Stock, only 2 left!

0

56

Troy-Bilt 936-05111

WASHER 38.3×54×1

$5.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 715-04092

DOWEL PIN 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 715-04096

DOWEL PIN 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt 951-14894

CRANKCASE COVER
(Superseded to 951-15515)

$212.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 710-06289

BOLT M8×45

$4.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 736-04560

WASHER 8.3×1.5×17

$4.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-05313

BOLT M8×15

$3.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-12253

FILTER CONNECTOR PIPE

$7.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-12690

OIL FILTER

$17.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 490-201-C010

Cub Cadet OIL FILTER

Note: Retail Packaged Part

$17.99

$

In Stock, only 4 left!

0

64

Troy-Bilt 490-201-0010

Genuine Factory Parts OIL FILTER
(Superseded to 490-201-Y010)

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 490-201-Y010

Troy-Bilt OIL FILTER

Note: Retail Packaged Part

$17.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 937-05066

AIR FILTER ELEMENT

$22.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 490-200-C063

Cub Cadet AIR FILTER/PRE-FILTER

Note: Retail Packaged Part

$29.99

$

In Stock, only 2 left!

0

65

Troy-Bilt 490-200-M063

Genuine Factory Parts AIR FILTER
(Superseded to 490-200-Y063)

Note: Retail Packaged Part

$29.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 490-200-Y063

Troy-Bilt AIR FILTER (05066)

Note: Retail Packaged Part

$29.99

$

Usually ships in 3-6 days

0

66

PAPER FILTER

$

$

Not available

67

SPONGE FILTER

$

$

Not available

68

Troy-Bilt 951-14915

INTAKE PIPE RING

$4.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 710-06179

SCREW 4.2×20

$5.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 710-06292

BOLT M6×22

$5.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 931-10879

INTAKE PIPE

$24.99

$

In Stock, only 1 left!

0

72

Troy-Bilt 951-14947

CARBURETOR GASKET

$8.49

$

In Stock, Qty 9

0

73

Troy-Bilt 993-00170

CARBURETOR
(Superseded to 993-00170A)

$101.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 921-04745

AIR FILTER GASKET

$6.99

$

In Stock, Qty 10

0

75

Troy-Bilt 931-05257

AIR FILTER ASSEMBLY

$55.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 910-06308

AIR FILTER COVER SCREW

$8.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 651-05492A

AIR FILTER COVER
(Superseded to 951-05492A)

$33.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 931-10880

SILENCER PLATE

$20.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 931-05262

MANIFOLD

$20.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 951-12328

RUBBER CAP

$3.99

$

In Stock, only 2 left!

0

81

Troy-Bilt 710-06293

SCREW 4.2×12

$6.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 710-06319

STUD M6×92

$6.49

$

Usually ships in 3-6 days

0

83

Troy-Bilt 712-05015

GOVERNOR ARM NUT M6

$6.99

$

In Stock, only 4 left!

0

84

Troy-Bilt 951-14918

CHOKE LEVER
(Superseded to 951-14918A)

$6.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 951-12231

IDLE SPRING

$4.49

$

In Stock, Qty 8

0

86

Troy-Bilt 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 6

0

87

Troy-Bilt 951-14917

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

88

Troy-Bilt 951-14916

VENTING HOUSE

$4.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 941-05137

STEEL BALL 8.731

$4.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 932-05290

PRESSURE RELEASE VALVE SPRING

$5.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-14895

PRESSURE RELEASE VALVE COVER

$5.49

$

Usually ships in 3-6 days

0

92

Troy-Bilt 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 931-10867

FILTER COVER

$4.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 951-14896

OIL SEPARATER

$5.49

$

Usually ships in 3-6 days

0

95

Troy-Bilt 921-04742

GASKET, CYLINDER HEAD COVER

$6.99

$

In Stock, only 1 left!

0

96

Troy-Bilt 951-05247

OIL PUMP ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

97

Troy-Bilt 951-14924

OIL PUMP OUTER SHAFT ROTATOR

$7.99

$

Usually ships in 3-6 days

0

98

Troy-Bilt 951-14923

OIL PUMP INNER SHAFT ROTATOR

$7.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-14897

OIL PUMP PIN

$4.49

$

Usually ships in 3-6 days

0

100

Troy-Bilt 911-06419

OIL PUMP SHAFT

$5.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 911-06413

CAMSHAFT
(Superseded to 753-08688)

$85.99

$

Usually ships in 3-6 days

0

102

Troy-Bilt 715-04122

DOWEL PIN 12×16

$4.49

$

In Stock, only 2 left!

0

103

Troy-Bilt 951-14921

WIRE PLATE I

$4.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 710-04943

BOLT M6×28

$4.49

$

Usually ships in 3-6 days

0

105

Troy-Bilt 915-05026

DOWEL PIN 10×12

$5.49

$

Usually ships in 3-6 days

0

106

Troy-Bilt 925-06299

REGULATOR

$39.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 925-06300

ELECTRIC STARTER

$294.99

$

Usually ships in 3-6 days

0

108

Troy-Bilt 710-06286

BOLT M8×80

$5.49

$

Usually ships in 3-6 days

0

109

Troy-Bilt 710-06287

BOLT M6×45

$5.49

$

Usually ships in 3-6 days

0

110

Troy-Bilt 924-05033

DIPSTICK ASSEMBLY
(Superseded to 924-05033A)

$26.99

$

Usually ships in 3-6 days

0

111

Troy-Bilt 931-10877

DIPSTICK COVER

$16.99

$

Usually ships in 3-6 days

0

112

Troy-Bilt 921-04739

UPPER O-RING

$4.99

$

In Stock, only 1 left!

0

113

Troy-Bilt 931-10878

DIPSTICK SEAT

$14.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 921-04740

LOWER O-RING

$4.99

$

Usually ships in 3-6 days

0

115

Troy-Bilt 994-00128

IGNITION COIL ASSEMBLY

$90.99

$

Usually ships in 3-6 days

0

116

Troy-Bilt 750-05314

VIBRATION PAD

$3.99

$

Usually ships in 3-6 days

0

117

Troy-Bilt 723-04071

WIRE CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

118

Troy-Bilt 994-00128

IGNITION COIL

$90.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 951-14902

CONNECTING ROD

$76.99

$

Usually ships in 3-6 days

0

120

Troy-Bilt 710-05319

CONNECTING ROD BOLT

$4.99

$

In Stock, Qty 10

0

121

CONNECTING ROD CAP

Note: Order Ref 120

$

$

Not available

122

CONNECTING ROD

Note: Order Ref 120

$

$

Not available

123

Troy-Bilt 951-11953

CIRCLIP, PISTON PIN
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 11

0

124

Troy-Bilt 711-06415

PISTON PIN
(Superseded to 911-06415)

$10.99

$

Usually ships in 3-6 days

0

125

Troy-Bilt 951-11962

TAPPET
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

126

Troy-Bilt 951-14898

PUSH ROD

$22.99

$

Usually ships in 3-6 days

0

127

Troy-Bilt 951-14905

PISTON

$55.99

$

Usually ships in 3-6 days

0

128

Troy-Bilt 951-05248

PISTON RING SET

$28.99

$

In Stock, only 1 left!

0

129

SCRAPER RING, OIL RING

Note: Order Ref 128

$

$

Not available

130

1ST PISTON RING

Note: Order Ref 128

$

$

Not available

131

2ND PISTON RING

Note: Order Ref 128

$

$

Not available

132

LINING RING, OIL RING

Note: Order Ref 128

$

$

Not available

133

Troy-Bilt 951-14899

VALVE CLEARANCE ADJUSTMENT SCREWS COMBINATION

$5.99

$

Usually ships in 3-6 days

0

134

Troy-Bilt 912-05103

NUT

$6.49

$

Usually ships in 3-6 days

0

135

Troy-Bilt 951-14900

ROCKER ARM

$18.99

$

Usually ships in 3-6 days

0

136

Troy-Bilt 951-14901

ROCKER ARM

$18.99

$

Usually ships in 3-6 days

0

137

Troy-Bilt 911-06414

ROCKER ARM CORE SHAFT

$5.99

$

Usually ships in 3-6 days

0

138

Troy-Bilt 915-05035

ROCKER ARM CORE SHAFT BOLT

$7.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 951-14909

EXHAUST VAVLE

$26.99

$

Usually ships in 3-6 days

0

140

Troy-Bilt 921-04743

GASKET, CYLINDER HEAD

$16.99

$

In Stock, only 3 left!

0

141

Troy-Bilt 951-14908

INTAKE VAVLE

$26.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 931-10871

SHROUD/LIFT

$15.99

$

Usually ships in 3-6 days

0

143

Troy-Bilt 918-07090

CYLINDER HEAD

$291.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 710-05305

HOOK BOLT

$4.49

$

In Stock, only 2 left!

0

145

Troy-Bilt 936-05113

WASHER 5.3×1×10

$5.99

$

Usually ships in 3-6 days

0

146

Troy-Bilt 710-06290

BOLT M5×10

$4.99

$

Usually ships in 3-6 days

0

147

Troy-Bilt 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

148

Troy-Bilt 921-04744

GASKET, MUFFLER

$6.99

$

In Stock, Qty 5

0

149

Troy-Bilt 951-10292

SPARK PLUG(F6RTC)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

150

Troy-Bilt 931-10868

SHROUD

$7.99

$

Usually ships in 3-6 days

0

151

Troy-Bilt 710-06291

BOLT M10×1.25×70

$4.99

$

Usually ships in 3-6 days

0

152

Troy-Bilt 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$11.99

$

In Stock, only 4 left!

0

153

Troy-Bilt 951-14910

VALVE SPRING

$10.99

$

Usually ships in 3-6 days

0

154

Troy-Bilt 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

155

Troy-Bilt 951-14912

VALVE COLLET
(Superseded to 951-14912A)

$3.49

$

Usually ships in 3-6 days

0

156

Troy-Bilt 951-14913

VALVE COVER RING

$13.99

$

Usually ships in 3-6 days

0

157

Troy-Bilt 951-14914

CYLINDER HEAD COVER

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z4X90HU

Complete Engine
(Superseded to 952Z4X90HUA)

Note: (not shown)

$1437.99

$

Usually ships in 3-6 days

0

Troy-Bilt 919-05133

HEAD ASM CYL:X90

Note: (not shown)

$296.99

$

Usually ships in 3-6 days

0

g

Troy-Bilt 711-06036

HINGE FLOAT PIN

Note: (not shown)

$0.99

$

Usually ships in 3-6 days

0

h

Troy-Bilt 751P14036A

NEEDLE VALVE

Note: (not shown)

$5.99

$

Usually ships in 3-6 days

0

i

Troy-Bilt 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

Note: (not shown)

$1.99

$

Usually ships in 3-6 days

0

k

Troy-Bilt 951-11970

FUEL BOWL GASKET

Note: (not shown)

$6.99

$

In Stock, Qty 9

0

n

Troy-Bilt 736-04629

WASHER

Note: (not shown)

$3.99

$

Usually ships in 3-6 days

0

p

Troy-Bilt 951-14972

CARBURETOR SOLENOID VALVE ASM

Note: (not shown)

$45.99

$

In Stock, only 3 left!

0

r

Troy-Bilt 951-12772

SEAT/FUEL BOWL BOLT O-RING

Note: (not shown)

$3.99

$

Usually ships in 3-6 days

0

t

Troy-Bilt 910-06752

DRAIN BOLT

Note: (not shown)

$5.49

$

Usually ships in 3-6 days

0

u

Troy-Bilt 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

Note: (not shown)

$4.49

$

In Stock, Qty 14

0

z

Troy-Bilt 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

Note: (not shown)

$3.49

$

In Stock, only 1 left!

0

cc

Troy-Bilt 736P05037

FIBER WASHER

Note: (not shown)

$0.99

$

Usually ships in 3-6 days

0
