5-0702 - Toro 36" Side-Discharge Mower Deck (1973)

36" Side-Discharge Mower Deck

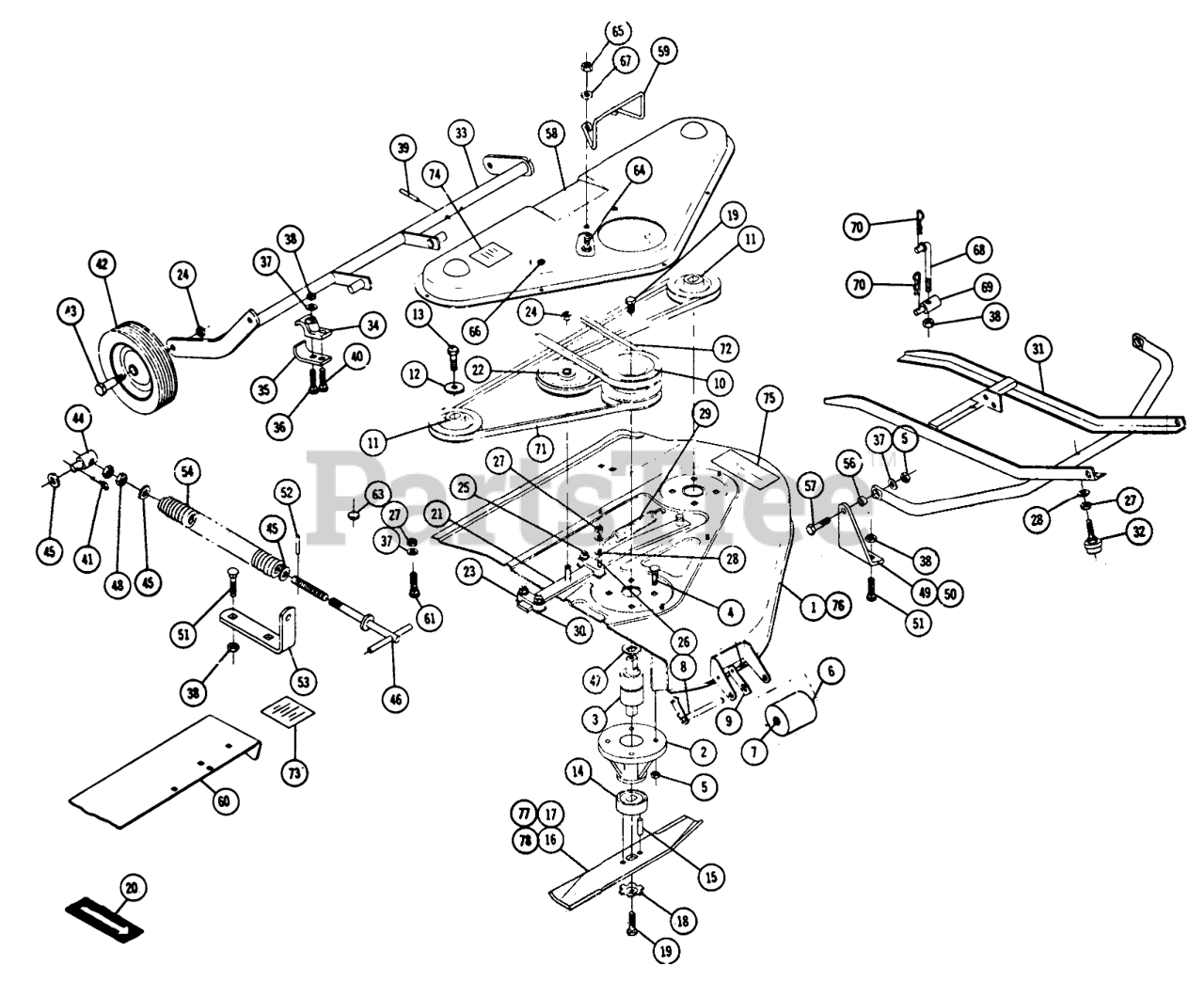

5-0702 - Toro 36" Side-Discharge Mower Deck (1973) > Parts Diagrams (1) > PARTS LIST FOR ROTARY MOWERS

  • Title
100471

1

Deck-Mower (Model 5-0610)

Part# 100471

OEM Warranty Repair Part for Toro

Currently unavailable

8389

2

Housing

Part# 8389 (Superseded to 101525)

OEM Warranty Repair Part for Toro

Not available

103119

3

BEARING

Part# 103119

OEM Warranty Repair Part for Toro

Not available

900234-4

4

Bolt Carriage 3/8-16 x 1

Part# 900234-4

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

5

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable

5240

6

Roller

Part# 5240 (Superseded to 94-1599)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.16

1970

7

Bearing-Nylon

Part# 1970

OEM Warranty Repair Part for Toro

Not available

102770

8

Roller Shaft

Part# 102770 (Superseded to 110847)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.13

102773

9

SPRING ROLLER STOP

Part# 102773

OEM Warranty Repair Part for Toro

Not available

101849

10

Pulley-Center-Drive

Part# 101849 (Superseded to 99-5357)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $116.22

101231

11

Pulley-End

Part# 101231 (Superseded to 105781)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $44.32

2844

12

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

908032-6

13

Bolt 3/8-16 x 3/4 Hex

Part# 908032-6

OEM Warranty Repair Part for Toro

Currently unavailable

102780

14

CUP-SPINDLE

Part# 102780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $96.61

933210

15

SPIROL ROLL PIN

Part# 933210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.16

8393

16

Blade 14"

Part# 8393 (Superseded to 9819)

Note: Order Part No. 9819 (3-Blade Kit)

OEM Warranty Repair Part for Toro

Not available

8394

17

Blade 12"

Part# 8394 (Superseded to 9819)

Note: Order Part No. 9819 (3-Blade Kit)

OEM Warranty Repair Part for Toro

Not available

1336

18

WASHER

Part# 1336

OEM Warranty Repair Part for Toro

Not available

908033-6

19

Bolt 3/8-16 x 7/8

Part# 908033-6

OEM Warranty Repair Part for Toro

Currently unavailable

102962

20

Decal Mower Width

Part# 102962

OEM Warranty Repair Part for Toro

Currently unavailable

8690

21

Bar Idler Support

Part# 8690

OEM Warranty Repair Part for Toro

Currently unavailable

7434

22

Idler Pulley

Part# 7434 (Superseded to 112426)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.57

6720

23

Side Block

Part# 6720 (Superseded to 742659)

OEM Warranty Repair Part for Toro

Not available

915236-4

24

3/8-16 Jam Nut

Part# 915236-4

OEM Warranty Repair Part for Toro

Currently unavailable

900039-4

25

Bolt-5/16-18 x 1/4

Part# 900039-4

OEM Warranty Repair Part for Toro

Currently unavailable

900040-4

26

Bolt-5/16-18 x 1 1/2

Part# 900040-4

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

27

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

920008-4

28

Washer

Part# 920008-4

OEM Warranty Repair Part for Toro

Currently unavailable

6651

29

SPRING R

Part# 6651

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.91

6748

30

SLIDE

Part# 6748

OEM Warranty Repair Part for Toro

Not available

100618

31

Mower Lift

Part# 100618

OEM Warranty Repair Part for Toro

Not available

100487

32

Leveler-Mower

Part# 100487

OEM Warranty Repair Part for Toro

Currently unavailable

100476

33

Height Control Bracket

Part# 100476

OEM Warranty Repair Part for Toro

Currently unavailable

8406

34

Support

Part# 8406

OEM Warranty Repair Part for Toro

Not available

8407

35

Clip

Part# 8407

OEM Warranty Repair Part for Toro

Not available

900067-4

36

Bolt Carriage 3/8-16 x 2

Part# 900067-4

OEM Warranty Repair Part for Toro

Currently unavailable

920009-4

37

Washer

Part# 920009-4

OEM Warranty Repair Part for Toro

Currently unavailable

915663-4

38

3/8-16 E.S.

Part# 915663-4

OEM Warranty Repair Part for Toro

Currently unavailable

933188

39

Roll Pin

Part# 933188 (Superseded to 32121-93)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.82

900064-4

40

Bolt Carriage 3/8-16 x 1

Part# 900064-4

OEM Warranty Repair Part for Toro

Currently unavailable

932009-4

41

Hairpin

Part# 932009-4

OEM Warranty Repair Part for Toro

Currently unavailable

5305

42

Wheel

Part# 5305 (Superseded to 110506)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.90

5188

43

BOLT-SHOULDER

Part# 5188

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.89

8870

44

ROD-TRUNNION LIFT

Part# 8870

OEM Warranty Repair Part for Toro

Not available

920011-4

45

Washer

Part# 920011-4

OEM Warranty Repair Part for Toro

Currently unavailable

100474

46

Crank

Part# 100474

OEM Warranty Repair Part for Toro

Currently unavailable

5951

47

WASHER

Part# 5951

OEM Warranty Repair Part for Toro

Not available

915238-4

48

Nut-1/2-13

Part# 915238-4

OEM Warranty Repair Part for Toro

Currently unavailable

8409

49

Bracket L.H.

Part# 8409

OEM Warranty Repair Part for Toro

Currently unavailable

8408

50

Bracket R.H.

Part# 8408

OEM Warranty Repair Part for Toro

Currently unavailable

900063-4

51

Bolt 3/8-16 x 1

Part# 900063-4

OEM Warranty Repair Part for Toro

Currently unavailable

933184

52

PIN-SPIROL

Part# 933184

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

100477

53

Bracket

Part# 100477

OEM Warranty Repair Part for Toro

Currently unavailable

100478

54

Spring

Part# 100478

OEM Warranty Repair Part for Toro

Currently unavailable

102972

55

Bolt-Lock 3/8-16 x 7/8

Part# 102972 (Superseded to 113134)

OEM Warranty Repair Part for Toro

Not available

2138

56

SPACER

Part# 2138

OEM Warranty Repair Part for Toro

Not available

908035-4

57

Bolt 3/8-16 x 1

Part# 908035-4

OEM Warranty Repair Part for Toro

Currently unavailable

7932

58

Cover

Part# 7932 (Superseded to 104987)

OEM Warranty Repair Part for Toro

Not available

100411

59

BELT GUIDE

Part# 100411

OEM Warranty Repair Part for Toro

Not available

102961

60

Extension-Chute (Model 5-0611)

Part# 102961 (Superseded to 106480-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.77

900036-4

61

Bolt 5/16-18 x 5/8 Carriage

Part# 900036-4

OEM Warranty Repair Part for Toro

Currently unavailable

910837-4

64

Screw 1/4-20 x 5/8

Part# 910837-4

OEM Warranty Repair Part for Toro

Currently unavailable

915661-4

65

Nut, 1/4-20

Part# 915661-4

OEM Warranty Repair Part for Toro

Currently unavailable

5924

66

HEX NUT 10-32 E.S.

Part# 5924

OEM Warranty Repair Part for Toro

Not available

920007-4

67

Washer

Part# 920007-4

OEM Warranty Repair Part for Toro

Currently unavailable

9200

68

Link-Lift

Part# 9200

OEM Warranty Repair Part for Toro

Currently unavailable

9808

69

Trunnion

Part# 9808

OEM Warranty Repair Part for Toro

Not available

933504-4

70

Hairpin

Part# 933504-4

OEM Warranty Repair Part for Toro

Currently unavailable

8411

71

V-BELT

Part# 8411

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.24

8412

72

BELT DRIVE

Part# 8412

OEM Warranty Repair Part for Toro

Not available

100479

73

Decal-Height Adjustment

Part# 100479

OEM Warranty Repair Part for Toro

Currently unavailable

8413

74

Decal-Belt Installation

Part# 8413

OEM Warranty Repair Part for Toro

Not available

4570

75

Decal

Part# 4570 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.48

103090

76

Deck-Mower (Model 5-0702)

Part# 103090

OEM Warranty Repair Part for Toro

Currently unavailable

100460

77

Blade 14"-Center (Model 5-0701)

Part# 100460 (Superseded to 101093)

Note: Order Part No. 101093 (3-Blade Kit)

OEM Warranty Repair Part for Toro

Not available

100459

78

Blade 12" (Model 5-0701)

Part# 100459 (Superseded to 101093)

Note: Order Part No. 101093 (3-Blade Kit)

OEM Warranty Repair Part for Toro

Not available
