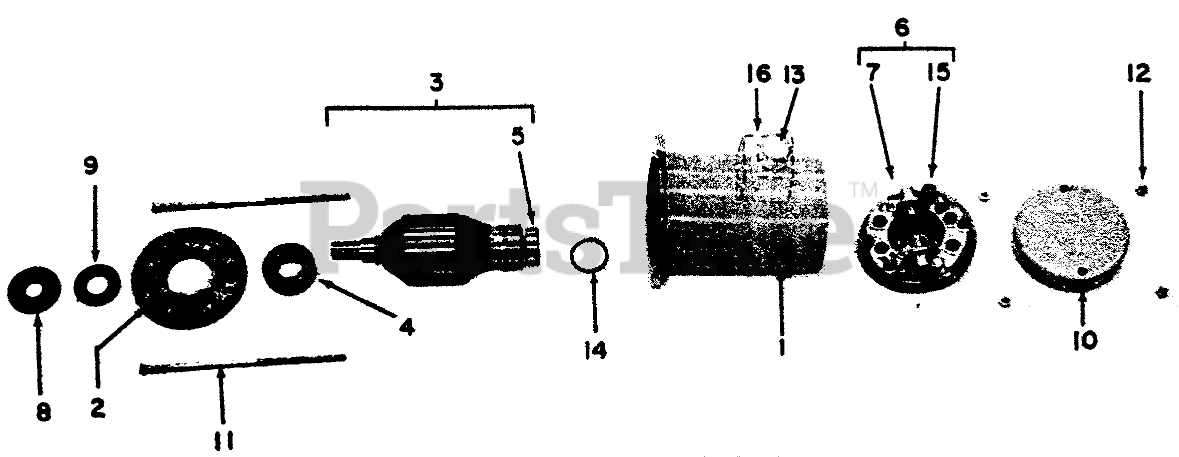

5-1700 - Toro 42" Rear-Discharge Mower Deck (1975) > Parts Diagrams (2) > MOWER MOTOR 515642

  • Title
519570

1

Shell and Magnet Aim.

Part# 519570

OEM Warranty Repair Part for Toro

Currently unavailable

519554

2

Shaft End Bell with Bearing, Ref. 4

Part# 519554

OEM Warranty Repair Part for Toro

Currently unavailable

519566

3

Armature & Bearing Asm., Ref. 4 & 5

Part# 519566

OEM Warranty Repair Part for Toro

Currently unavailable

519556

4

Shaft End Bearing

Part# 519556 (Superseded to 70-9240)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.39

519557

5

Commutator End Bearing

Part# 519557

OEM Warranty Repair Part for Toro

Not available

519558

6

Com. End Bell Asm. (With Brushes) Ref. 7 & 15

Part# 519558

OEM Warranty Repair Part for Toro

Not available

519559

7

Brush Asm.

Part# 519559

OEM Warranty Repair Part for Toro

Currently unavailable

519560

8

External Bearing Shield

Part# 519560

OEM Warranty Repair Part for Toro

Currently unavailable

519561

9

Internal Bearing Shield

Part# 519561

OEM Warranty Repair Part for Toro

Currently unavailable

519562

10

Terminal Cover

Part# 519562

OEM Warranty Repair Part for Toro

Currently unavailable

519571

11

Tie Bolt

Part# 519571

OEM Warranty Repair Part for Toro

Currently unavailable

519564

12

Twin Whiz Lock Nut (1/4-20)

Part# 519564

OEM Warranty Repair Part for Toro

Not available

520111

13

Circuit Breaker

Part# 520111

OEM Warranty Repair Part for Toro

Currently unavailable

519575

14

Thrust Washer (not illustrated)

Part# 519575

OEM Warranty Repair Part for Toro

Not available

519583

15

Brush Holder Spring

Part# 519583

OEM Warranty Repair Part for Toro

Currently unavailable
