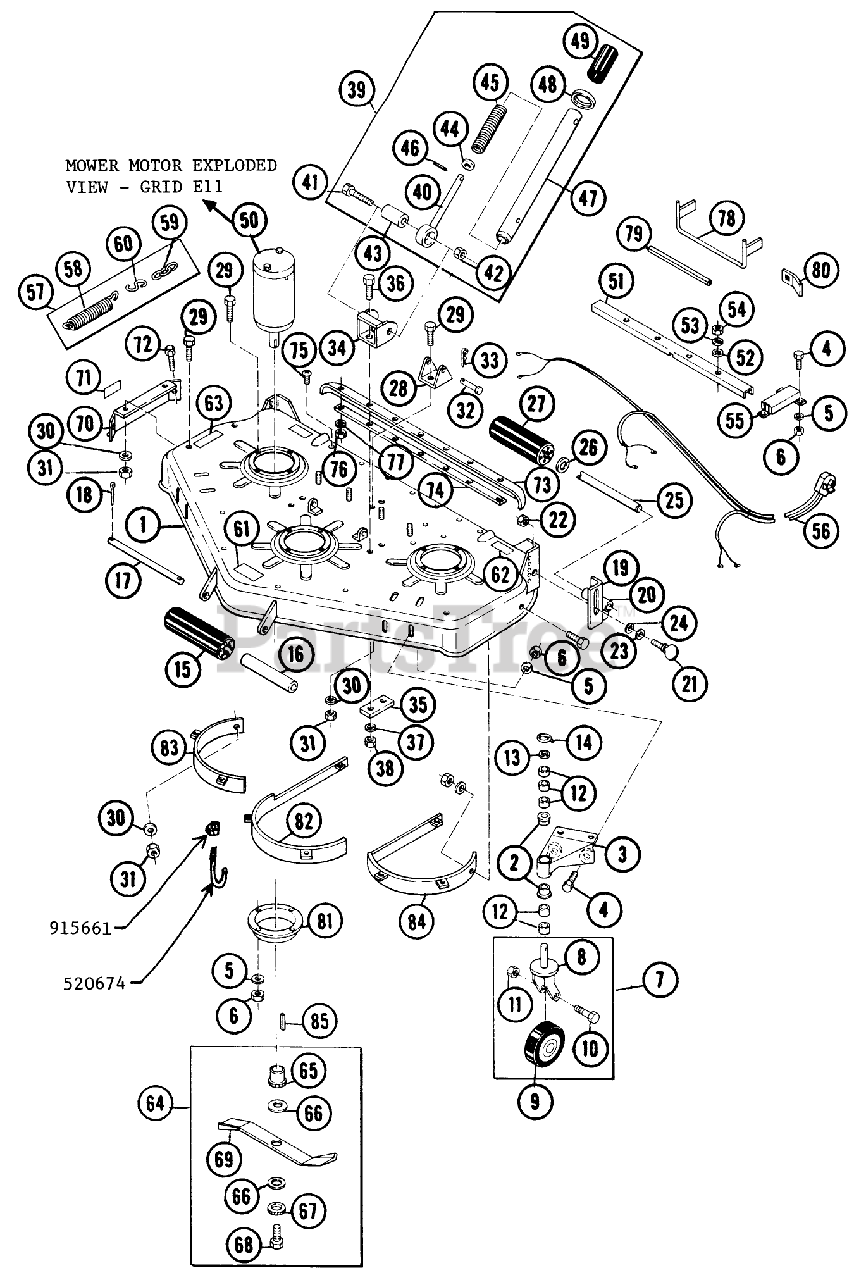

5-1700 - Toro 42" Rear-Discharge Mower Deck (1975) Parts List For Mower Factory Order Number 5-1700 Parts Diagram

42" Rear-Discharge Mower Deck

Parts List For Mower Factory Order Number 5-1700 Parts Diagram

  • Title

1

Toro 522314

Mower Deck

$

$

Currently unavailable

2

Toro 517447

DISCONTINUED

$

$

Not available

3

Toro 521973

Caster Support

$

$

Currently unavailable

4

Toro 513339

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

5

Toro 513515

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

6

Toro 513277

Nut, Hex 5/16-18

$

$

Currently unavailable

7

Toro 519461

Caster Assembly

$

$

Currently unavailable

8

Toro 517269

DISCONTINUED

$

$

Not available

9

Toro 517422

Caster Wheel

$

$

Currently unavailable

10

Toro 513383

See Supercession: 908066
(Superseded to 908066)

$

$

Not available

11

Toro 513426

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

12

Toro 517466

DISCONTINUED

$

$

Not available

13

Toro 513462

See Supercession: 920256
(Superseded to 920256)

$

$

Not available

14

Toro 517573

DISCONTINUED

$

$

Not available

15

Toro 518169

DISCONTINUED

$

$

Not available

16

Toro 519872

Tubing

$

$

Currently unavailable

17

Toro 518218

Shaft

$

$

Currently unavailable

18

Toro 513558

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 515869

DISCONTINUED

$

$

Not available

20

Toro 515870

DISCONTINUED

$

$

Not available

21

Toro 518107

Thumb Screw-3/8-16

$

$

Currently unavailable

22

Toro 513425

See Supercession: 3217-7
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 19

0

23

Toro 513517

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

24

Toro 513469

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 518170

Rear Roller Shaft

$

$

Currently unavailable

26

Toro 518215

Washer

$

$

Currently unavailable

27

Toro 517036

Rear Rubber Roller

$

$

Currently unavailable

28

Toro 517444

DISCONTINUED

$

$

Not available

29

Toro 513315

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

30

Toro 513513

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

31

Toro 513292

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

32

Toro 517628

DISCONTINUED

$

$

Not available

33

Toro 518033

See Supercession: 9335054
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

34

Toro 519135

Mower Arm Mounting Bracket

$

$

Currently unavailable

35

Toro 520320

Reinforcement Plate

$

$

Currently unavailable

36

Toro 513358

Bolt, Hex-3/8-16 x 1

$

$

Currently unavailable

37

Toro 513517

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

38

Toro 513278

Nut, Hex 3/8-16

$

$

Currently unavailable

39

Toro 523063

Mower Arm Assembly

$

$

Currently unavailable

40

Toro 523064

Lower Mower Arm Rod

$

$

Currently unavailable

41

Toro 908092

Bolt, Hex-5/8-11 x 3"

$

$

Currently unavailable

42

Toro 915667

DISCONTINUED

$

$

Not available

43

Toro 520414

Rubber Bushing

$

$

Currently unavailable

44

Toro 513460

DISCONTINUED

$

$

Not available

45

Toro 518221

Spring

$

$

Currently unavailable

46

Toro 933155

DISCONTINUED

$

$

Not available

47

Toro 523063

Mower Arm Assembly

$

$

Currently unavailable

48

Toro 519405

Retaining Ring

$

$

Currently unavailable

49

Toro 519404

DISCONTINUED

$

$

Not available

50

Toro 515642

See Supercession: 515640
(Superseded to 515640)

$

$

Not available

51

Toro 521943

Wire Cover

$

$

Currently unavailable

52

Toro 513481

DISCONTINUED

$

$

Not available

53

Toro 513535

See Supercession: 920078
(Superseded to 920078)

$

$

Not available

54

Toro 513289

Nut Hex-#8-32

$

$

Currently unavailable

55

Toro 521946

Wire Box

$

$

Currently unavailable

56

Toro 516255

Wire Harness

$

$

Currently unavailable

57

Toro 519255

Helper Spring Assembly

$

$

Currently unavailable

58

Toro 517551

Helper Spring

$

$

Currently unavailable

59

Toro 519253

Chain

$

$

Currently unavailable

60

Toro 519254

S Hook

$

$

Currently unavailable

61

Toro 517656

Caution Decal

$

$

Currently unavailable

62

Toro 517655

See Supercession: 66-1340
(Superseded to 66-1340)

$11.99

$

In Stock, Qty 6

0

63

Toro 516926

Height Adjustment Decal

$

$

Currently unavailable

64

Toro 516001

Blade Clutch Assembly

$

$

Currently unavailable

65

Toro 518119

DISCONTINUED

$

$

Not available

66

Toro 518113

Fiber Washer

$

$

Currently unavailable

67

Toro 518131

DISCONTINUED

$

$

Not available

68

Toro 517789

Self Locking Cap Screw-5/16-24 x 1 1/2

$

$

Currently unavailable

69

Toro 200868

BLADE KIT (AP25)

$333.99

$

In Stock, only 1 left!

0

70

Toro 517746

Side Cover-w/Decal

$

$

Currently unavailable

71

Toro 517657

Caution Decal

$

$

Currently unavailable

72

Toro 513318

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

73

Toro 517974

DISCONTINUED

$

$

Not available

74

Toro 517978

Rear Mower Strip

$

$

Currently unavailable

75

Toro 513719

DISCONTINUED

$

$

Not available

76

Toro 513287

See Supercession: 3219-14
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

77

Toro 513536

See Supercession: 3253-17
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 5

0

78

Toro 522095

Front Mower Guide

$

$

Currently unavailable

79

Toro 518460

Sleeve

$

$

Currently unavailable

80

Toro 518776

Clamp-Angle

$

$

Currently unavailable

81

Toro 520758

Shell Collar

$

$

Currently unavailable

82

Toro 520701

Center Baffle

$

$

Currently unavailable

83

Toro 520703

Right Side Baffle

$

$

Currently unavailable

84

Toro 520705

Left Side Baffle

$

$

Currently unavailable

85

Toro 517792

DISCONTINUED

$

$

Not available
