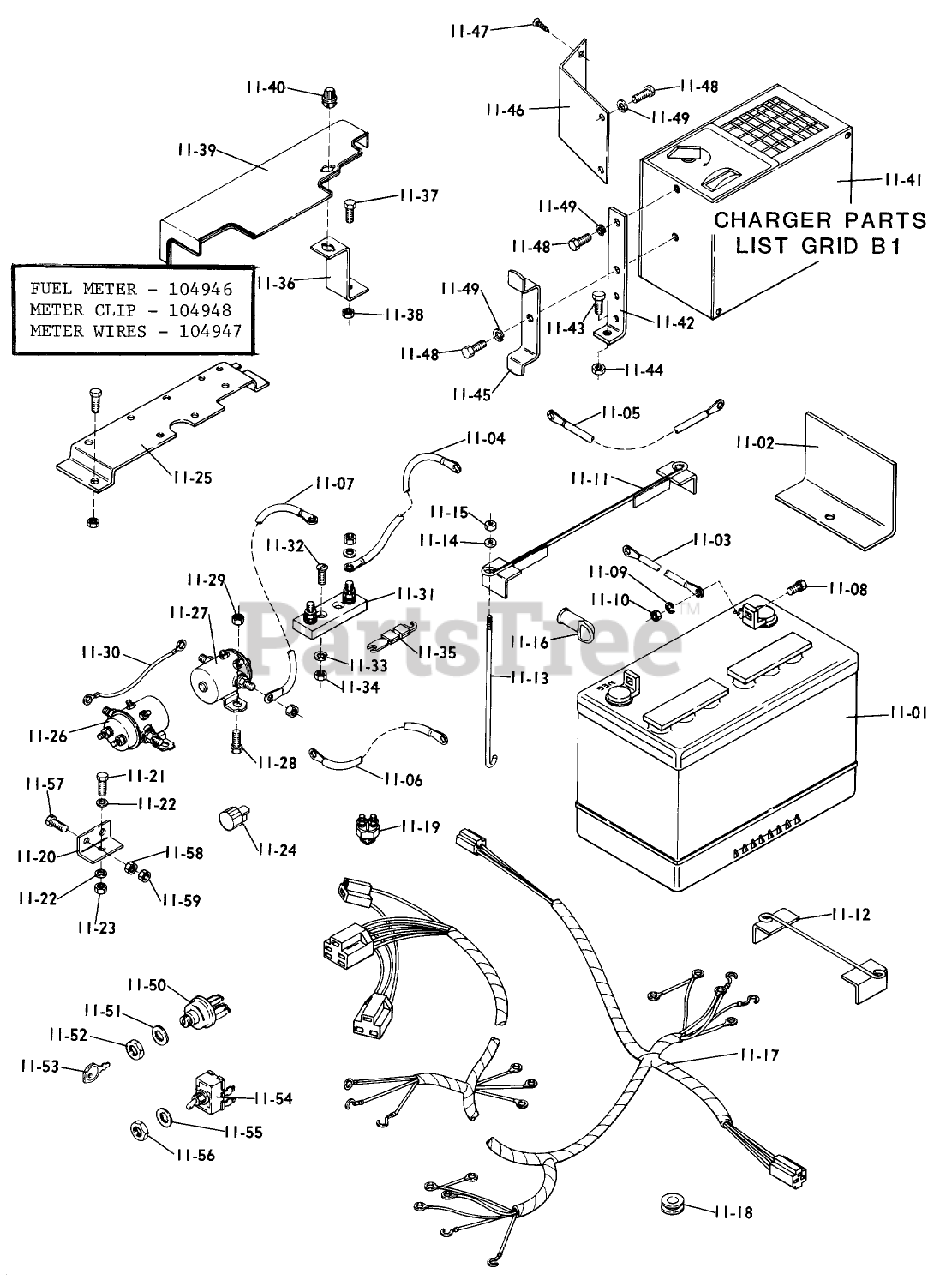

5-1780 - Toro 36" Side-Discharge Mower Deck (1975) A-60 PARTS MANUAL 11.000 ELECTRICAL SYSTEM (FIG. 11) Parts Diagram

36" Side-Discharge Mower Deck

A-60 PARTS MANUAL 11.000 ELECTRICAL SYSTEM (FIG. 11) Parts Diagram

  • Title

11-01

Toro 104273

Battery

$

$

Not available

Toro 101390

Battery Cap

$

$

Currently unavailable

Toro 104416

Washer

$

$

Not available

11-02

Toro 104339

Battery Shield

$

$

Currently unavailable

11-03

Toro 104267

Battery Cable, Short

$

$

Not available

11-04

Toro 104265

Battery Cable, Positive

$

$

Not available

11-05

Toro 104266

Battery Cable, Negative

$

$

Not available

11-06

Toro 104268

Cable-Solenoid To Batt. Pos

$

$

Not available

11-07

Toro 104269

Cable, Solenoid to Fuse

$

$

Not available

11-08

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

11-09

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

11-11

Toro 104274

Hold Down Assembly

$

$

Not available

11-12

Toro 102877

Assy-Hold Down

$

$

Not available

11-13

Toro 104276

HOOK

$

$

Not available

11-14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11-15

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

11-16

Toro 104277

Terminal Cover
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

11-17

Toro 104264

Wiring Harness

$

$

Not available

11-18

Toro 104248

GROMMET

$11.99

$

Usually ships in 3-6 days

0

11-19

Toro 101845

SWITCH SAFETY

$91.99

$

Usually ships in 3-6 days

0

11-20

Toro 104294

Ground Bar

$

$

Not available

11-21

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

11-22

Toro 920247

WASHER 5/16 NYLON

$

$

Not available

11-23

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11-24

Toro 104272

Diode

$

$

Not available

11-25

Toro 104389

Mounting Plate

$

$

Not available

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11-26

Toro 104293

SOLENOID-MOWER MOTOR

$

$

Not available

11-27

Toro 104292

Solenoid-Traction Motor

$

$

Not available

11-28

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

11-29

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11-30

Toro 104326

Solenoid Wire

$

$

Not available

11-31

Toro 104262

Fuse Block

$

$

Not available

11-32

Toro 908796

Screw, Flat Head Machine #10-24 x 3/4

$

$

Currently unavailable

11-33

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 14

0

11-34

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0

11-35

Toro 104866

FUSE

$

$

Not available

11-36

Toro 104431

Cover Strap

$

$

Not available

11-37

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

11-38

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11-39

Toro 104279

Wiring Cover

$

$

Not available

11-40

Toro 104432

Release Button

$

$

Not available

11-41

Toro 104280

Charger

$

$

Not available

11-42

Toro 104281

Support Strap

$

$

Currently unavailable

11-43

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

11-44

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11-45

Toro 104343

Cord Bracket

$

$

Not available

11-46

Toro 104282

Charger Bracket

$

$

Currently unavailable

11-47

Toro 104406

Screw, Flat Hd. 1/4-20 x 3/4 Swage Form

$

$

Currently unavailable

11-48

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 10

0

11-49

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

11-50

Toro 104270

SWITCH-IGNITION

$99.99

$

Usually ships in 3-6 days

0

11-51

Toro 920159

Lockwasher 9/16 I.D.

$

$

Not available

11-52

Toro 7261

Nut
(Superseded to 88-2130)

$

$

Not available

11-53

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

11-54

Toro 104271

PTO Switch

$

$

Not available

11-55

Toro 920158

Lockwasher 1/2 Int. Tooth

$

$

Not available

11-56

Toro 104327

Nut, 1/2-27

$

$

Not available

11-57

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

11-58

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11-59

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

11-10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0
