5-1780 - Toro 36" Side-Discharge Mower Deck (1975) A-60 Parts Manual 8.000 Sheet Metal And Covers (fig. 8) Parts Diagram

36" Side-Discharge Mower Deck

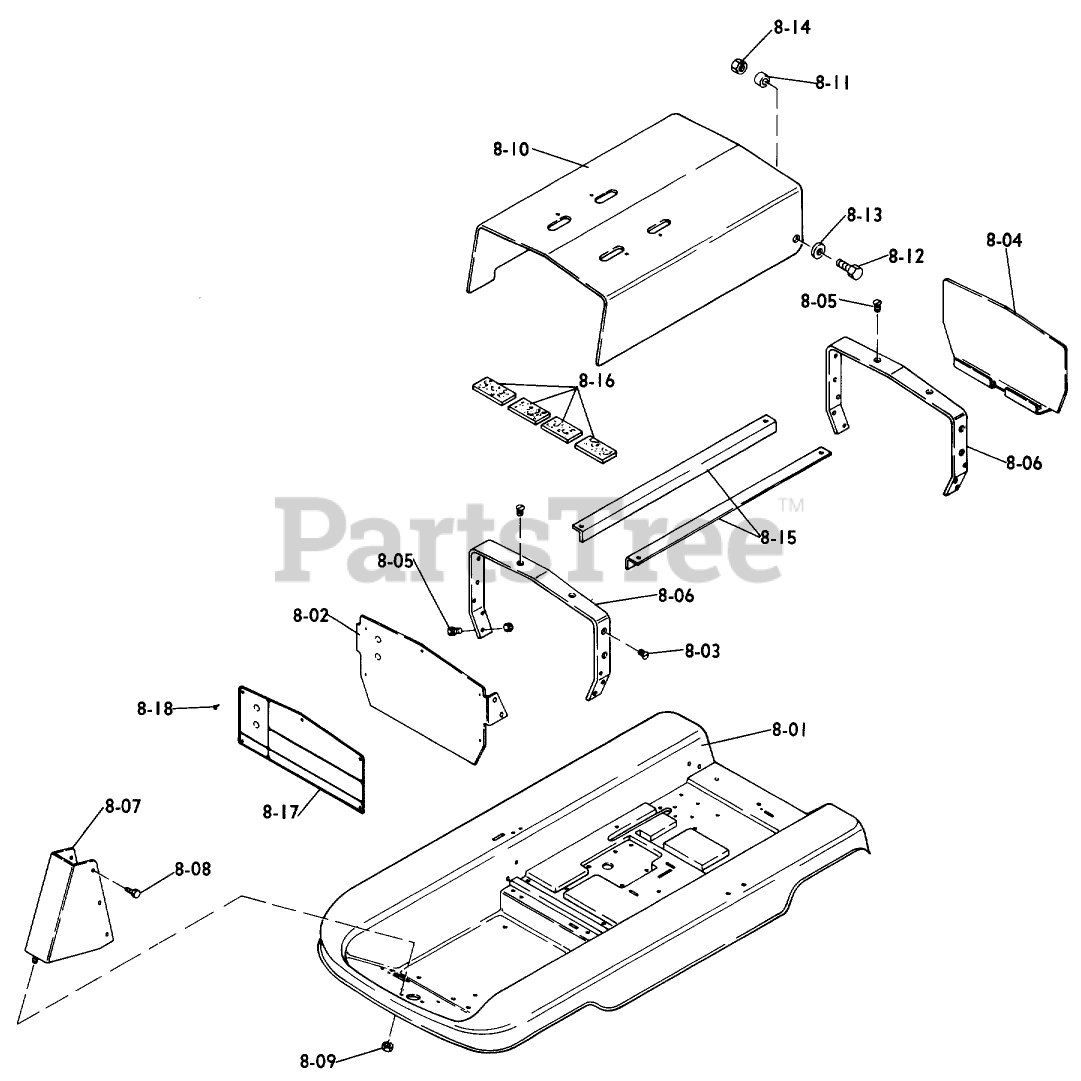

A-60 Parts Manual 8.000 Sheet Metal And Covers (fig. 8) Parts Diagram

  • Title

8-01

Toro 103586

Body

$

$

Currently unavailable

Toro 104317

DISCONTINUED

$

$

Not available

8-02

Toro 104283

Front. Panel

$

$

Currently unavailable

8-03

Toro 104406

Screw, Flat Hd. 1/4-20 x 3/4 Swage Form

$

$

Currently unavailable

8-04

Toro 104284

DISCONTINUED

$

$

Not available

8-05

Toro 926694

SCREW

$

$

Not available

8-06

Toro 104285

DISCONTINUED

$

$

Not available

8-07

Toro 5824

See Supercession: 108858
(Superseded to 108858)

$

$

Not available

8-08

Toro 960150

See Supercession: 3234-26
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 9

0

8-09

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

8-10

Toro 104296

Hood

$

$

Currently unavailable

Toro 9460

DISCONTINUED

$

$

Not available

Toro 920037

DISCONTINUED

$

$

Not available

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

8-11

Toro 102675

DISCONTINUED

$

$

Not available

8-12

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8-13

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8-14

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

8-15

Toro 104295

Seat Support Angle

$

$

Currently unavailable

8-16

Toro 101444

DISCONTINUED

$

$

Not available

8-17

Toro 104334

DISCONTINUED

$

$

Not available

8-18

Toro 100609

DISCONTINUED

$

$

Not available
