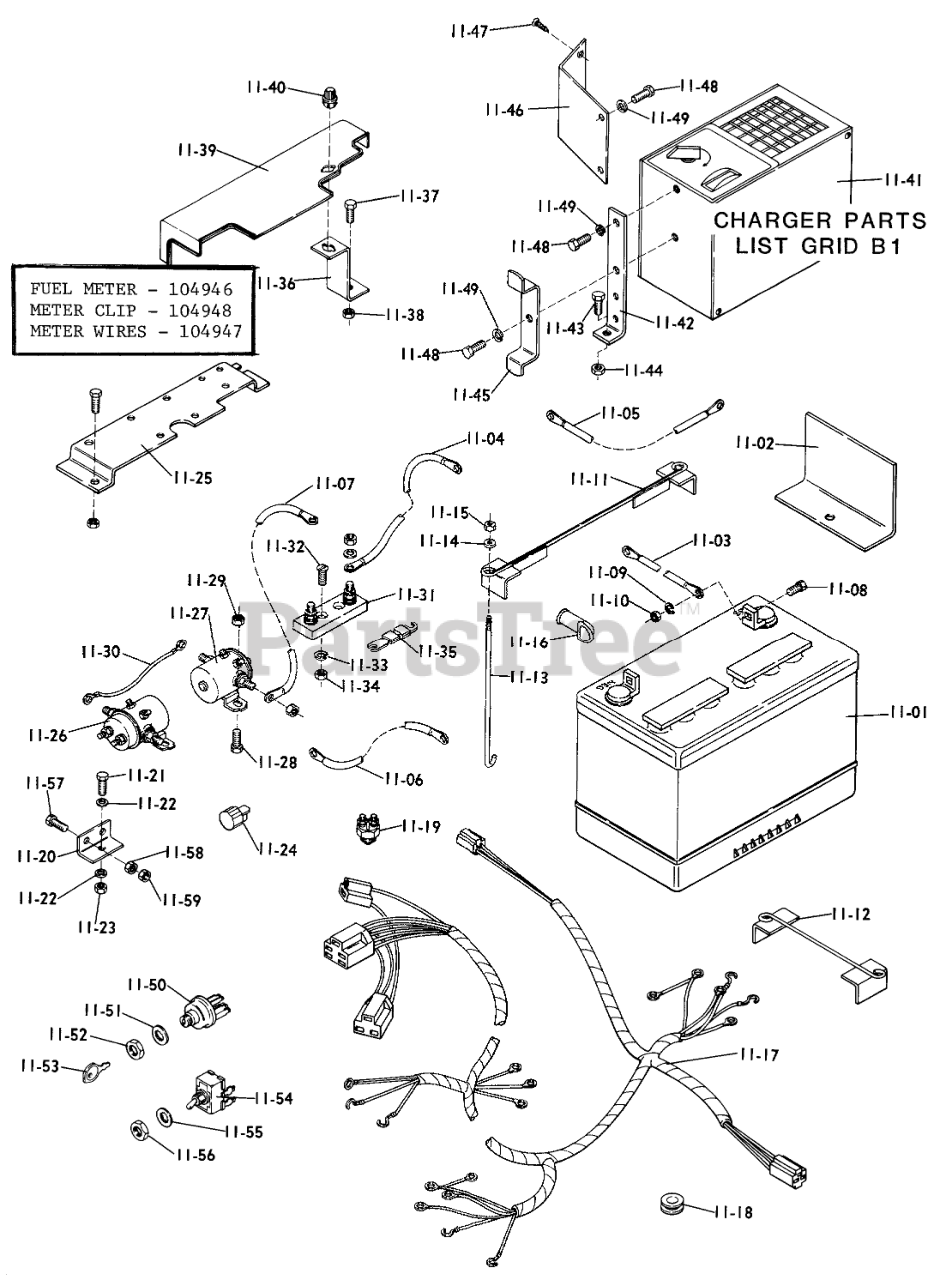

5-8400 - Toro 32" Side-Discharge Mower Deck (1975) > Parts Diagrams (11) > A-60 PARTS MANUAL 11.000 ELECTRICAL SYSTEM (FIG. 11)

  • Title
104273

11-01

Battery

Part# 104273

OEM Warranty Repair Part for Toro

Not available

101390

Battery Cap

Part# 101390

OEM Warranty Repair Part for Toro

Currently unavailable

104416

Washer

Part# 104416

OEM Warranty Repair Part for Toro

Not available

104339

11-02

Battery Shield

Part# 104339

OEM Warranty Repair Part for Toro

Currently unavailable

104267

11-03

Battery Cable, Short

Part# 104267

OEM Warranty Repair Part for Toro

Not available

104265

11-04

Battery Cable, Positive

Part# 104265

OEM Warranty Repair Part for Toro

Not available

104266

11-05

Battery Cable, Negative

Part# 104266

OEM Warranty Repair Part for Toro

Not available

104268

11-06

Cable-Solenoid To Batt. Pos

Part# 104268

OEM Warranty Repair Part for Toro

Not available

104269

11-07

Cable, Solenoid to Fuse

Part# 104269

OEM Warranty Repair Part for Toro

Not available

908017

11-08

Bolt

Part# 908017 (Superseded to 322-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

920082

11-09

Lockwasher

Part# 920082 (Superseded to 3253-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.65

104274

11-11

Hold Down Assembly

Part# 104274

OEM Warranty Repair Part for Toro

Not available

102877

11-12

Assy-Hold Down

Part# 102877

OEM Warranty Repair Part for Toro

Not available

104276

11-13

HOOK

Part# 104276

OEM Warranty Repair Part for Toro

Not available

920007

11-14

USE 920007P WASHER

Part# 920007 (Superseded to 3256-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

915661

11-15

Nut

Part# 915661 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

104277

11-16

Terminal Cover

Part# 104277 (Superseded to 28-8080)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.60

104264

11-17

Wiring Harness

Part# 104264

OEM Warranty Repair Part for Toro

Not available

104248

11-18

GROMMET

Part# 104248

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.97

101845

11-19

SWITCH SAFETY

Part# 101845

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.87

104294

11-20

Ground Bar

Part# 104294

OEM Warranty Repair Part for Toro

Not available

908017

11-21

Bolt

Part# 908017 (Superseded to 322-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

920247

11-22

WASHER 5/16 NYLON

Part# 920247

OEM Warranty Repair Part for Toro

Not available

915112

11-23

Nut

Part# 915112 (Superseded to 3217-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

104272

11-24

Diode

Part# 104272

OEM Warranty Repair Part for Toro

Not available

104389

11-25

Mounting Plate

Part# 104389

OEM Warranty Repair Part for Toro

Not available

908017

Bolt

Part# 908017 (Superseded to 322-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

915112

Nut

Part# 915112 (Superseded to 3217-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

104293

11-26

SOLENOID-MOWER MOTOR

Part# 104293

OEM Warranty Repair Part for Toro

Not available

104292

11-27

Solenoid-Traction Motor

Part# 104292

OEM Warranty Repair Part for Toro

Not available

908001

11-28

Bolt

Part# 908001 (Superseded to 321-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.11

915111

11-29

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

104326

11-30

Solenoid Wire

Part# 104326

OEM Warranty Repair Part for Toro

Not available

104262

11-31

Fuse Block

Part# 104262

OEM Warranty Repair Part for Toro

Not available

908796

11-32

Screw, Flat Head Machine #10-24 x 3/4

Part# 908796

OEM Warranty Repair Part for Toro

Currently unavailable

920079

11-33

Lockwasher

Part# 920079 (Superseded to 3253-17)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.21

915538

11-34

Hex Nut

Part# 915538 (Superseded to 3217-26)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.26

104866

11-35

FUSE

Part# 104866

OEM Warranty Repair Part for Toro

Not available

104431

11-36

Cover Strap

Part# 104431

OEM Warranty Repair Part for Toro

Not available

908001

11-37

Bolt

Part# 908001 (Superseded to 321-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.11

915111

11-38

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

104279

11-39

Wiring Cover

Part# 104279

OEM Warranty Repair Part for Toro

Not available

104432

11-40

Release Button

Part# 104432

OEM Warranty Repair Part for Toro

Not available

104280

11-41

Charger

Part# 104280

OEM Warranty Repair Part for Toro

Not available

104281

11-42

Support Strap

Part# 104281

OEM Warranty Repair Part for Toro

Currently unavailable

908017

11-43

Bolt

Part# 908017 (Superseded to 322-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

915112

11-44

Nut

Part# 915112 (Superseded to 3217-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

104343

11-45

Cord Bracket

Part# 104343

OEM Warranty Repair Part for Toro

Not available

104282

11-46

Charger Bracket

Part# 104282

OEM Warranty Repair Part for Toro

Currently unavailable

104406

11-47

Screw, Flat Hd. 1/4-20 x 3/4 Swage Form

Part# 104406

OEM Warranty Repair Part for Toro

Currently unavailable

908015

11-48

H H C S

Part# 908015 (Superseded to 322-1)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

920082

11-49

Lockwasher

Part# 920082 (Superseded to 3253-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.65

104270

11-50

SWITCH-IGNITION

Part# 104270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.23

920159

11-51

Lockwasher 9/16 I.D.

Part# 920159

OEM Warranty Repair Part for Toro

Not available

7261

11-52

Nut

Part# 7261 (Superseded to 88-2130)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.97

7262

11-53

Key-EL

Part# 7262 (Superseded to 62-7770)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.46

104271

11-54

PTO Switch

Part# 104271

OEM Warranty Repair Part for Toro

Not available

920158

11-55

Lockwasher 1/2 Int. Tooth

Part# 920158

OEM Warranty Repair Part for Toro

Not available

104327

11-56

Nut, 1/2-27

Part# 104327

OEM Warranty Repair Part for Toro

Not available

908003

11-57

Bolt

Part# 908003 (Superseded to 321-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.81

915111

11-58

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

915661

11-59

Nut

Part# 915661 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

915113

11-10

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59
