50 DK (954140068-A) - Husqvarna Walk-Behind Mower (1997-02) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

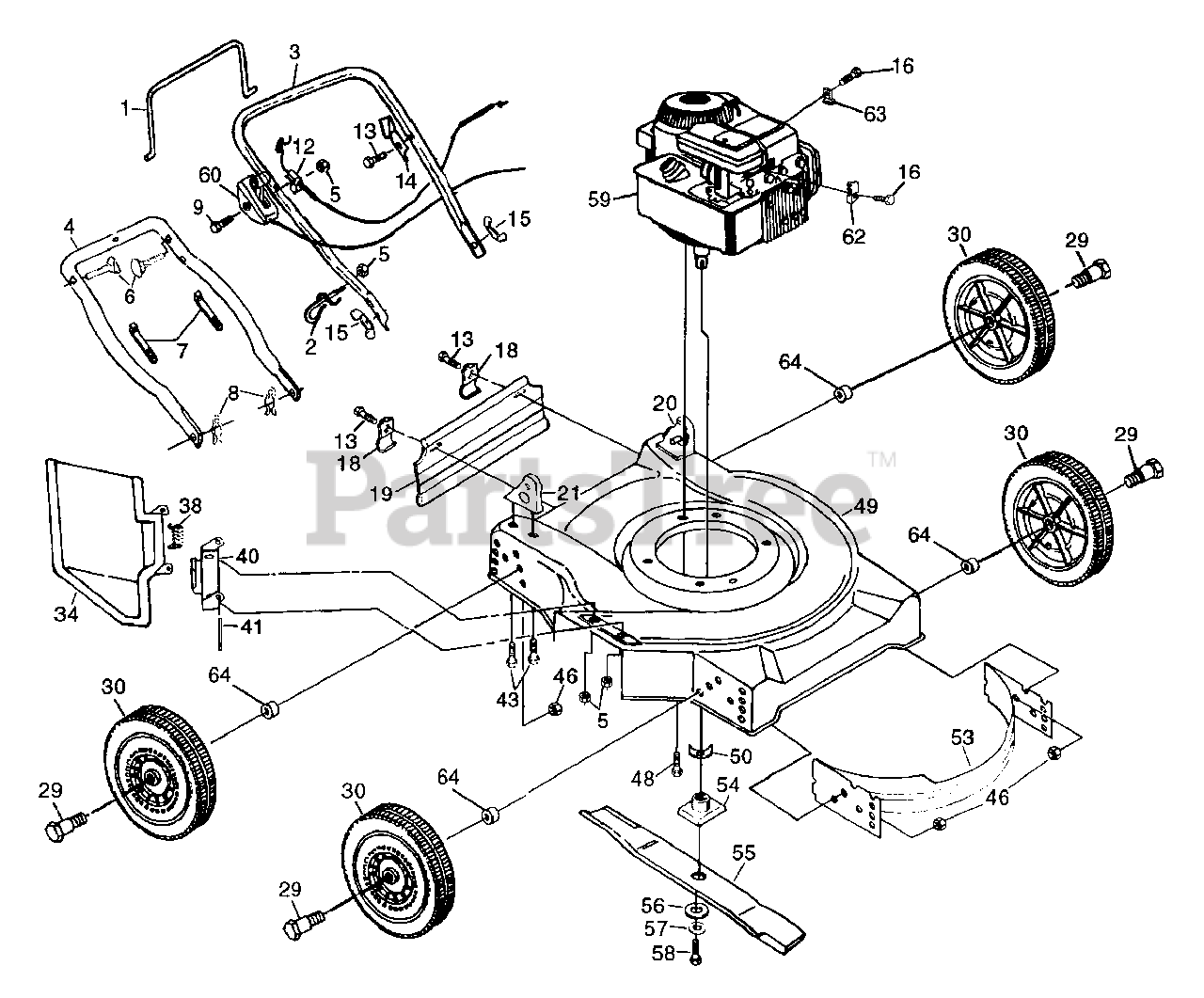

Rotary Lawn Mower Parts Diagram

  • Title

1

Husqvarna 532086902

CONTROL BAR

$

$

Not available

2

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

3

Husqvarna 532155978

UPPER HANDLE
(Superseded to 532850881)

$

$

Not available

4

Husqvarna 532157082

HANDLE, LOWER
(Superseded to 532157081)

$

$

Not available

5

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

9

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

12

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

13

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532128638

NUT WING PM

$4.99

$

In Stock, Qty 13

0

16

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

18

Husqvarna 532125207

BRACKET DEFL PM
(Superseded to 532192301)

$

$

Not available

19

Husqvarna 532140541

REAR SKIRT
(Superseded to 532189009)

$

$

Not available

20

Husqvarna 532153027

HDLE BRKT ASSY LH
(Superseded to 532192983)

$

$

Not available

21

Husqvarna 532153026

HDLE BRKT ASSY RH
(Superseded to 532192983)

$

$

Not available

29

Husqvarna 532067609

AXLE BOLT

$

$

Not available

30

Husqvarna 532750500

DNO WHEEL.7.5X1.5.PR.SP.GY
(Superseded to 532700263)

$

$

Not available

34

Husqvarna 532142191

DISCHARGE GUARD
(Superseded to 532142193)

$

$

Not available

38

Husqvarna 532851855

SPRING TENSION
(Superseded to 532411832)

$7.49

$

In Stock, only 3 left!

0

40

Husqvarna 532153806

HOUSING BRACKET
(Superseded to 532088602)

$

$

Not available

41

Husqvarna 532150215

HINGE ROD

$

$

Not available

43

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

46

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

48

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

49

Husqvarna 532142144

HOUSING ASSY

$

$

Not available

50

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

53

Husqvarna 532138348

BAFFLE
(Superseded to 532700839)

$

$

Not available

54

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$21.99

$

In Stock, Qty 16

0

55

Husqvarna 532145106

BLADE.20.MULCH.(50DK,6020MD)

$27.99

$

In Stock, Qty 12

0

56

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

59

Engine

Note: Briggs & Stratton, Model No. 98902; These Parts must be purchased through an authorized Briggs & Stratton Dealer.

$

$

Not available

60

Husqvarna 532851462

THROTTLE CONTROL
(Superseded to 532851463)

$

$

Not available

62

Husqvarna 532213146

WASHER
(Superseded to 532125078)

Note: These Parts must be purchased through an authorized Briggs & Stratton Dealer.

$

$

Not available

63

Husqvarna 532087930

GUIDE CLIP PM

$

$

Not available

64

Husqvarna 532136624

SPACER.WHEEL.390.X1.0X.380.RTA

$9.49

$

In Stock, only 1 left!

0

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532141520

REAR BAFFLE
(Superseded to 532133379)

Note: (Not Shown)

$

$

Not available

Husqvarna 532162424

Owner's Manual (English/French)

$

$

Not available

Husqvarna GCK3200

Grass Catcher

Note: Available accessories not included with mower.

$

$

Not available

Husqvarna MK500

Mulcher Kit

Note: Available accessories not included with mower.

$

$

Not available
