5000/61R (5900201) - Ferris 61" Rear-Discharge Mower Deck (SN: 1210 & Above) 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

61" Rear-Discharge Mower Deck

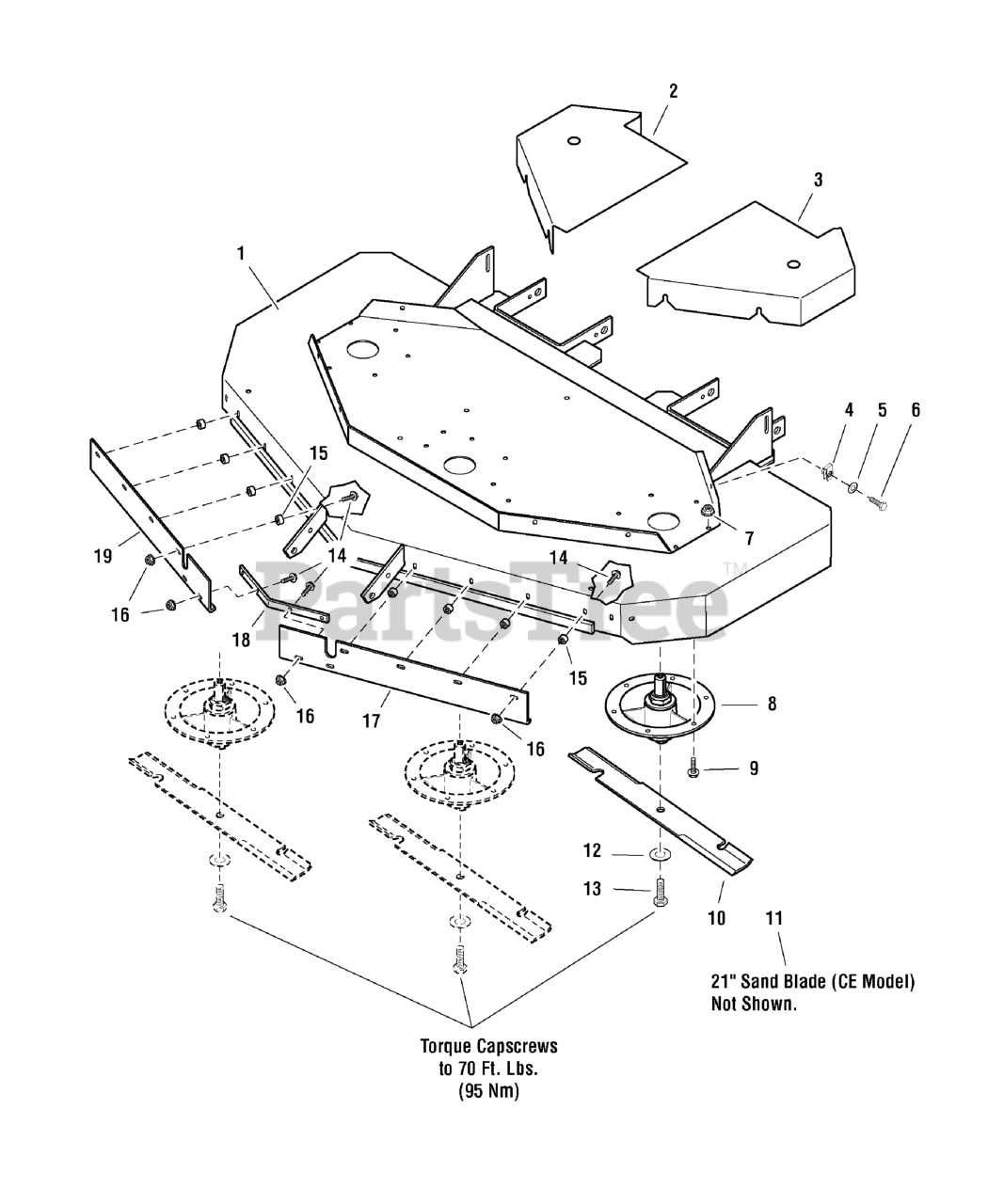

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5300066

DECK SHELL W/DECALS, 61" REAR DISCHARGE

Note: (Includes safety decals.)

$1937.99

$

Usually ships in 2-12 days

0

2

Ferris 5061157B

DECK SHIELD - RH

$48.99

$

Usually ships in 2-12 days

0

3

Ferris 5061156B

DECK SHIELD - LH

$48.99

$

Usually ships in 2-12 days

0

4

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

Usually ships in 2-12 days

0

8

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

Usually ships in 2-12 days

0

9

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 11

0

11

Ferris 5023272

MOWER BLADE, SAND, 21"

Note: (Applies to CE model only)

$

$

Currently unavailable

12

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

13

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

Note: (Applies to CE model only)

$3.99

$

In Stock, only 4 left!

0

15

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

Note: (Applies to CE model only)

$

$

Currently unavailable

16

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

Note: (Applies to CE model only)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5061412B

BLOWOUT BAFFLE - LH

Note: (Applies to CE model only)

$32.99

$

Usually ships in 2-12 days

0

18

Ferris 5061413A

BAFFLE, REINFORCEMENT - BLK

Note: (Applies to CE model only)

$27.99

$

Usually ships in 2-12 days

0

19

Ferris 5061411B

BLOWOUT BAFFLE - RH

Note: (Applies to CE model only)

$32.99

$

Usually ships in 2-12 days

0
