5000/72 (5900203) - Ferris 72" Mower Deck (SN: 1209 & Below) 72" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

72" Mower Deck

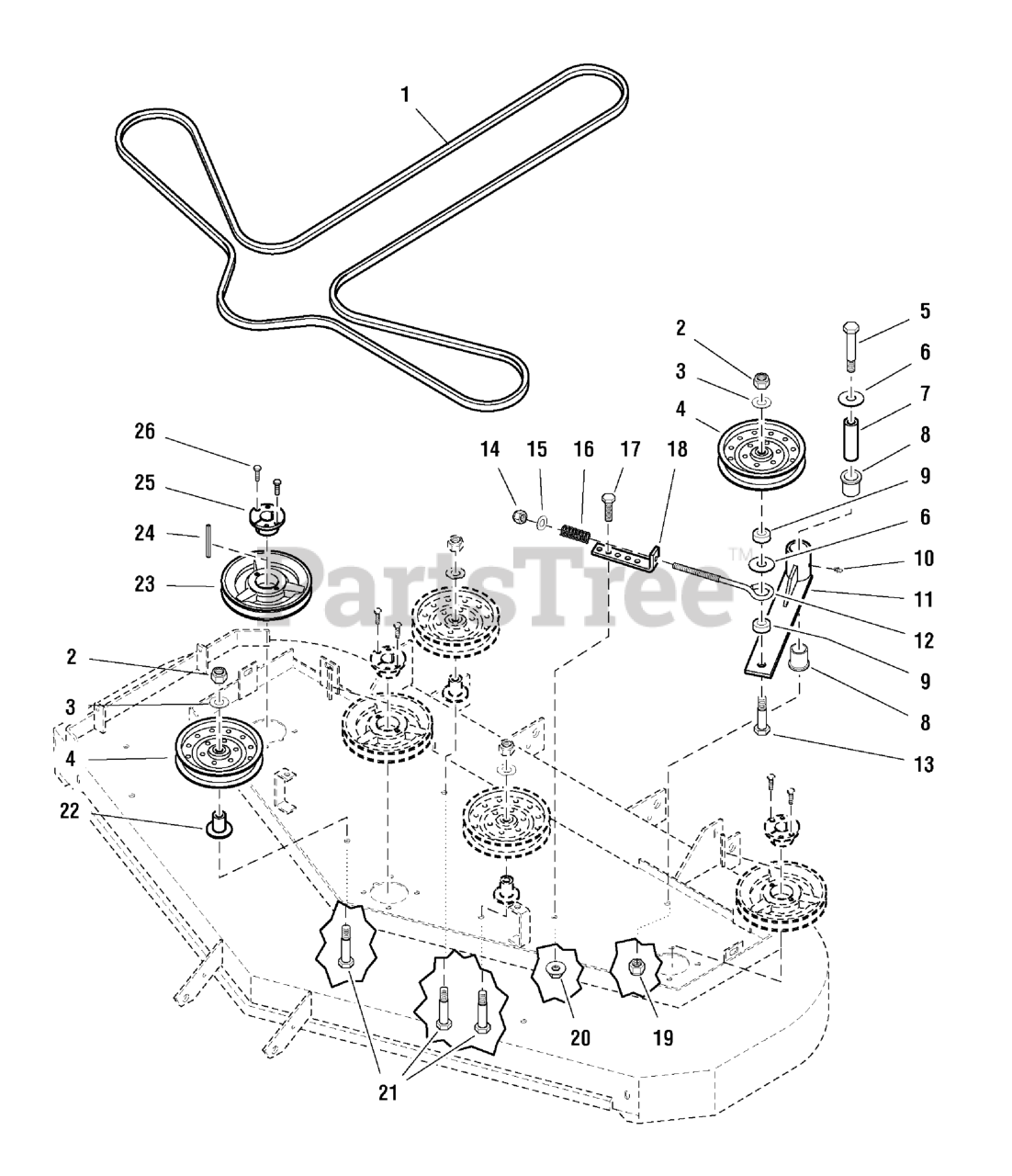

72" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5022439

BELT, DECK 72" 31 HP HORIZ.

$153.99

$

Usually ships in 2-12 days

0

2

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

4

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

5

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

6

Ferris 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 4 left!

0

7

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

8

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

9

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, Qty 10

0

10

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5045019B

WELD, IDLER ARM - RED
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

12

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

$8.49

$

Usually ships in 2-12 days

0

13

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5 YZ
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5022788

SPRING, COMPRESSION 2" MEDIUM
(Superseded to 5022788SM)

$36.99

$

In Stock, only 1 left!

0

17

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5046556B

SPRING ANCHOR
(Superseded to 5046556BFS)

$18.99

$

In Stock, only 2 left!

0

19

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

20

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025018X28

BOLT, 1/2-20 X 3-1/2" GD5 YZ
(Superseded to 5025018X28SM)

$4.49

$

In Stock, Qty 5

0

22

Ferris 5045024B

IDLER PULLEY MOUNT - RED
(Superseded to 5045024BFS)

$43.99

$

Usually ships in 2-12 days

0

23

Ferris 5022794

PULLEY, SPINDLE, BH 72
(Superseded to 5022794FS)

$97.99

$

Usually ships in 2-12 days

0

24

Ferris 5050407X9

Key, 1/4" Sq. x 2-1/2"
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

25

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

26

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 4 left!

0
