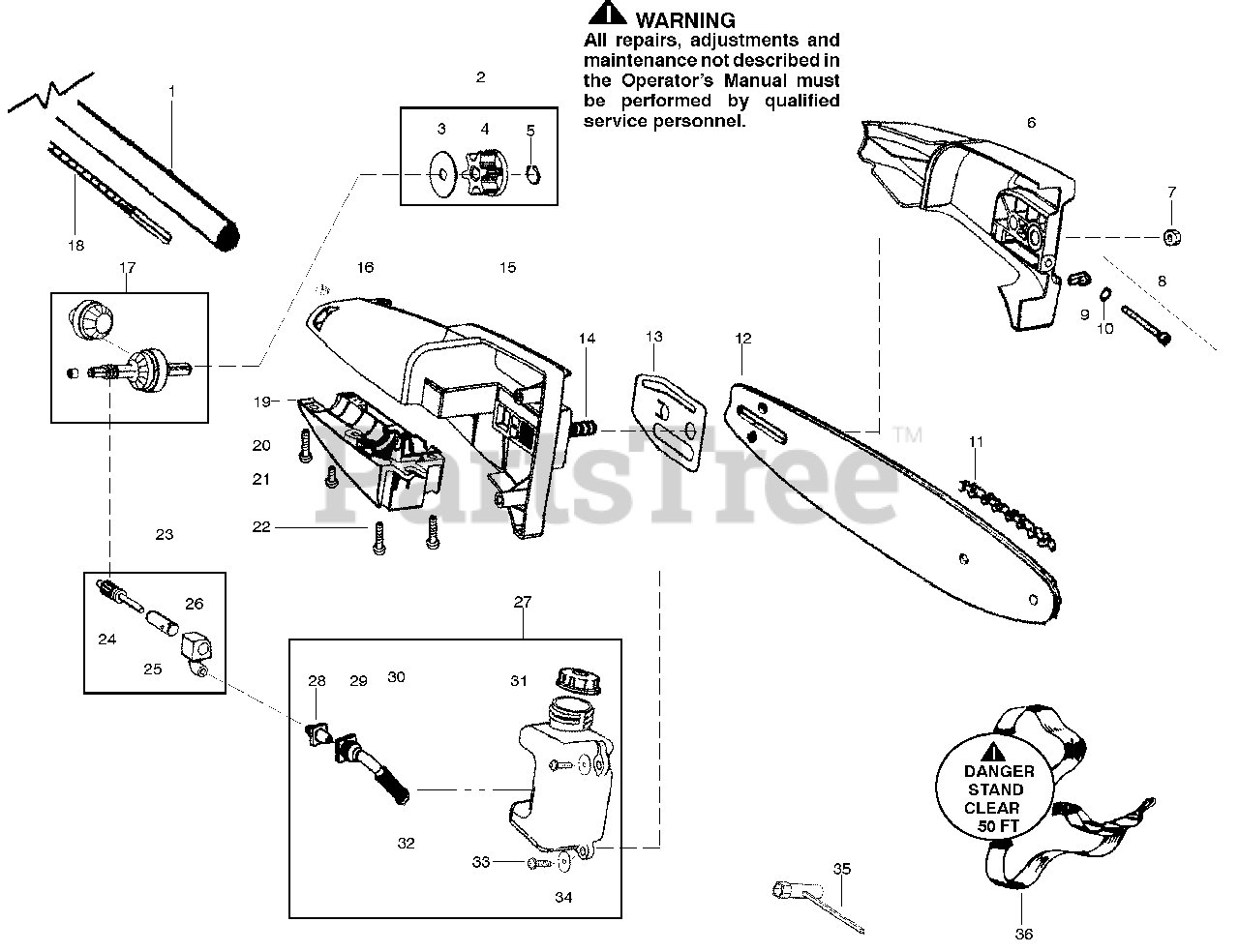

5000 P - Poulan Chainsaw (2009-01) Product Complete Parts Diagram

Chainsaw

Product Complete Parts Diagram

  • Title

1

Electrolux/AYP 545006093

Assy-Driveshaft

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530071647

Kit-Sprocket Assy.

Note: (incl. 3,4,5)

$17.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530056521

Washer

$4.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 530056520

Sprocket

$9.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530056563

Retainer-Sprocket

$6.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530057100

Assy-Bar Clamp

Note: (incl. #8)

$

$

Not available

7

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530069611

Kit-Bar Adjust

Note: (incl. 9,10)

$4.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530051524

Chain-8"
(Superseded to 585889919)

$

$

Not available

12

Electrolux/AYP 530044908

Bar-8"

$

$

Not available

13

Electrolux/AYP 530056523

Plate-Bar pad

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 530016133

Bolt-Bar

$6.49

$

In Stock, only 4 left!

0

15

Electrolux/AYP 530056513

Hsg.-Upper

Note: (incl. #14)

$

$

Not available

16

Electrolux/AYP 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 530071646

Kit-Gear Assy

$37.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530056570

Flex shaft - lower

$24.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530056514

Hsg.-Lower

$

$

Not available

20

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, Qty 6

0

21

Electrolux/AYP 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

22

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

23

Electrolux/AYP 530071645

Kit-Oil Assy

Note: (incl. 24,25,26)

$

$

Not available

24

Electrolux/AYP 530053764

Assy-Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530053765

Barrel

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530056522

Block-Oil

$

$

Not available

27

Electrolux/AYP 530056528

Assy-Oil Tank
(Superseded to 530150266)

Note: (incl. 28,29,30,31,32)

$26.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530056524

Fitting-Oil Line

$4.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530021160

Intake-Oil Line

$7.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 530037821

Filter-Oil
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530053072

Cap-Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

34

Electrolux/AYP 530015382

Washer

$

$

Not available

35

Electrolux/AYP 530031163

Wrench-Bar

$9.99

$

In Stock, Qty 17

0

36

Electrolux/AYP 530094417

Strap-Shoulder

$

$

Not available

36

Electrolux/AYP 545212829

Manual

Note: Not Shown

$

$

Not available

36

Electrolux/AYP 530095894

Att-Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 530055395

Clamp-Harness(lower)
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530055392

Clamp-Harness(upper)
(Superseded to 530071605)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530015770

Screw-Harness clamp
(Superseded to 530016406)

Note: Not Shown

$6.49

$

In Stock, only 1 left!

0

36

Electrolux/AYP 545003066

Decal-Warning

Note: Not Shown

$

$

Not available
