5000 - Troy-Bilt Pony Junior Rear-Tine Tiller (SN: M1001 - M1273) FORWARD/REVERSE SHIFT & ENGINE MOUNT Parts Diagram

Pony Junior Rear-Tine Tiller

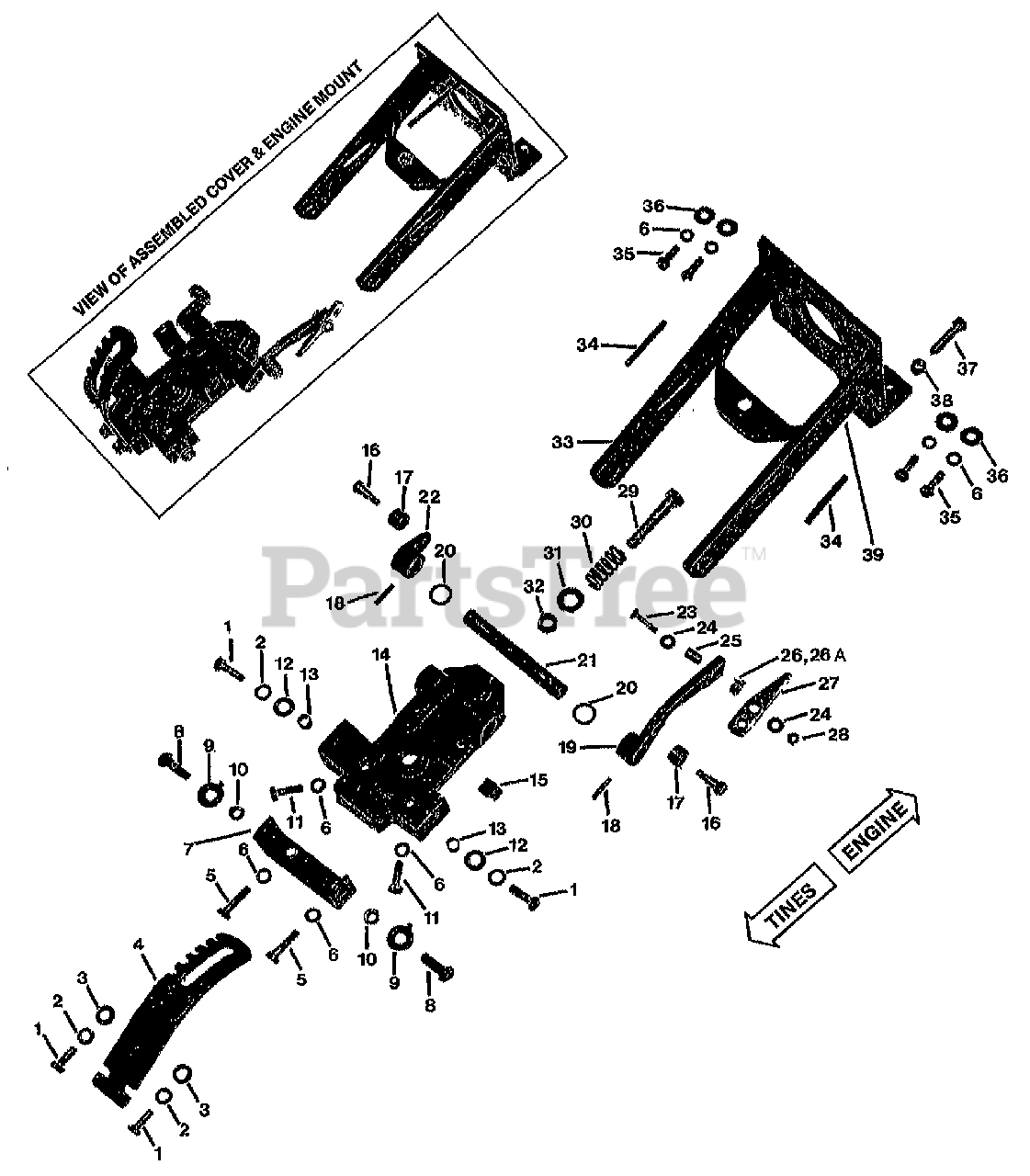

FORWARD/REVERSE SHIFT & ENGINE MOUNT Parts Diagram

  • Title

1

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL (See Illustration, used in two places.)

$

$

Currently unavailable

3

Troy-Bilt 9903

WASHER-1.0X.438X.104 ZP

$

$

Currently unavailable

4

Troy-Bilt 50060

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

5

Troy-Bilt 9705

SCR-HH 5/16-18X1.25 G5ZP (Handlebar attachment bracket to transmission cover.)

$

$

Currently unavailable

6

Troy-Bilt 9912

WASHER-LK .312 ZP (See Illustration, used in three places.)

$

$

Currently unavailable

7

Troy-Bilt 50051

BRKT-HANDLEBAR PIVOT

$

$

Currently unavailable

8

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP (Bracket to handle bars.)

$

$

Currently unavailable

9

Troy-Bilt 50061

WASHER-TAB #

$

$

Currently unavailable

10

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP (Front cover to tranmission case)

$

$

Currently unavailable

12

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 50025

BUSHING-.5X.375X.375 (Engine mount arms)

$

$

Currently unavailable

14

Troy-Bilt 50031

COVER-TRANS MACH

$

$

Currently unavailable

15

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT (Gear oil fill hole)
(Superseded to 737-04202)

$6.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9556

SCR-SH 5/16-18 X .5 ZP (Eccentric arms to engine mount arms)

$

$

Currently unavailable

17

Troy-Bilt 50014

ROLLER-ECC (Eccentric arms)

$

$

Currently unavailable

18

Troy-Bilt 9354

PIN-ROLL .188 X 1 (Eccentric arms to eccentric shaft)

$

$

Currently unavailable

19

Troy-Bilt 50123

ECC W/SPG & ROLL PIN-RT (Inc. #18 & 26)

$

$

Currently unavailable

20

Troy-Bilt 1440

WASHER # .875 X .65 X .06 (Eccentric shaft)
(Superseded to 736-04079)

$4.49

$

In Stock, Qty 7

0

21

Troy-Bilt 50012

SHAFT-ECC MACH (Eccentric)

$

$

Currently unavailable

22

Troy-Bilt 50125

ECC-LT MACH (Inc. #18)

$

$

Currently unavailable

23

Troy-Bilt 9734

SCR-HH 1/4-20X1.0 ((Eccentric arm to neutral control stop arm)

$

$

Currently unavailable

24

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

25

MTD 50018

BUSHING-.406X.255X.595 (Neutral Control Arm)

$

$

Not available

26

Troy-Bilt 50096

SPRING-.56 X .4 ZP(Neutral Control Arm FOR S/N 1274 & LATER, DO NOT USE 26A)

$

$

Currently unavailable

26A

Troy-Bilt 50019

SPRING-.56X.4 ZP(FOR S/N 1273 & EARLIER, DO NOT USE 26)

$

$

Currently unavailable

27

Troy-Bilt 50017

ARM-CONTROL ZP (Neutral stop)

$

$

Currently unavailable

28

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

29

Troy-Bilt 9798

BOLT-HH 1/2-13 X 2.5 ZP(Reverse adjustment)

$

$

Currently unavailable

30

Troy-Bilt 50020

SPRING-.685X1.75 (Reverse adjustment)

$

$

Currently unavailable

31

MTD 9905

WASHER-PLAIN 1/2 ZP

$

$

Not available

32

Troy-Bilt 9836

NUT-LOCK 1/2-13 NYLON INSERT ZP

$

$

Currently unavailable

33

Troy-Bilt 50124

BRKT-ENG MTG W/DECAL (Inc. 39 & two #34)

$

$

Currently unavailable

34

Troy-Bilt 9310

PIN-SPIROL .25 X 2.5

$

$

Currently unavailable

35

Troy-Bilt 9707

SCR 5/16-24 X 1 (Engine mount to engine)

$

$

Currently unavailable

36

MTD 9901

WASHER-.88X312X.08 ZP

$

$

Not available

37

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP (Belt adjustment)

$

$

Not available

38

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

39

Troy-Bilt 50112

DECAL-BELT WARNING (Not Illustrated)

$

$

Currently unavailable
