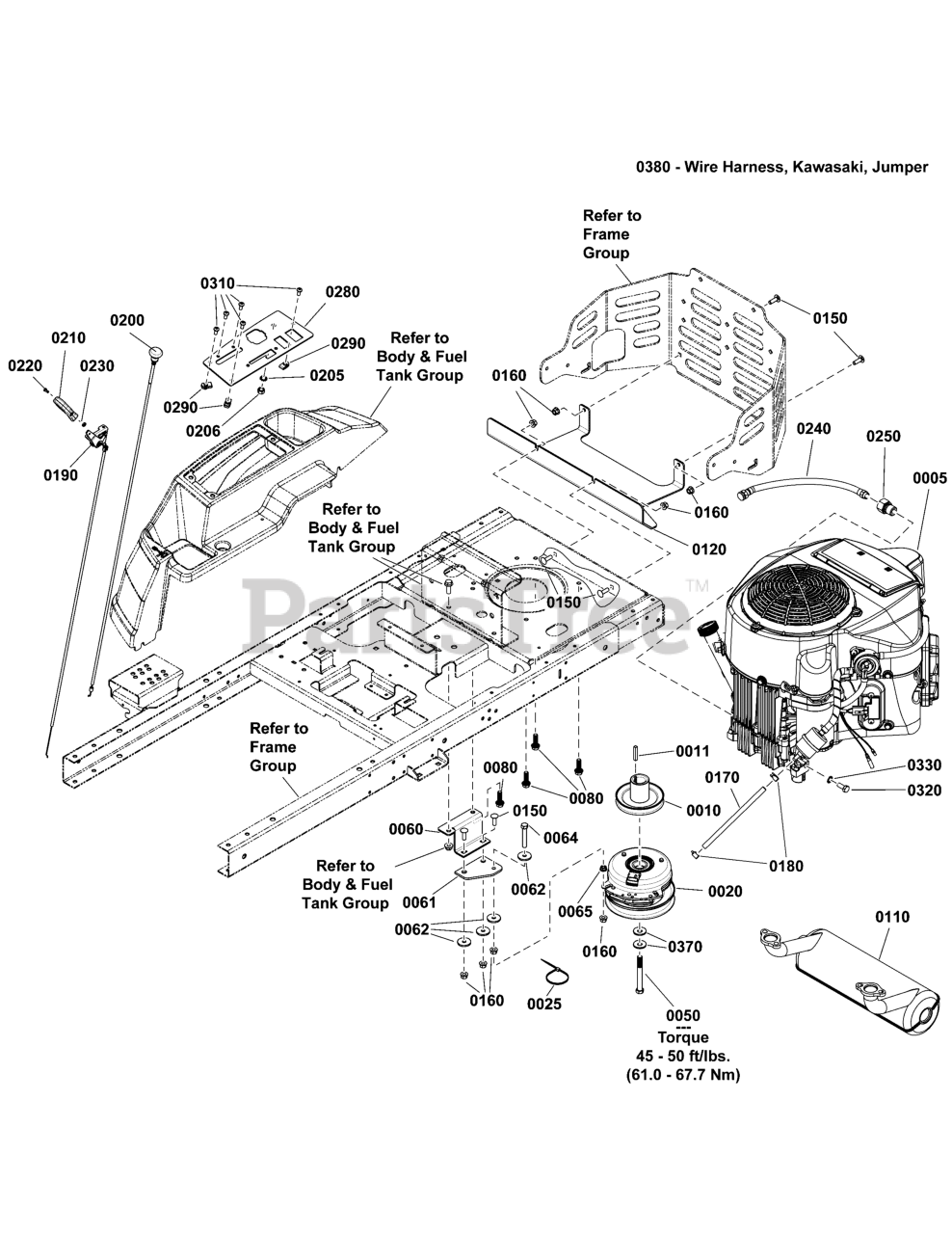

500S (5902056) - Ferris 500S Series 61" Zero-Turn Mower, 24hp Kawasaki Engine and PTO Group Parts Diagram

500S Series 61" Zero-Turn Mower, 24hp Kawasaki

Engine and PTO Group Parts Diagram

  • Title

0005

ENGINE, KAWASAKI, FR730V (FR730V-AS25-R)

Note: (Refer to Note: *)

$

$

Not available

0010

Ferris 80098036

PULLEY, CRANKSHAFT
(Superseded to 84007555)

$58.99

$

Usually ships in 2-12 days

0

0011

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

0020

Ferris 80093964

CLUTCH, WARNER, 125 FT-LB,1.13" X 6.324
(Superseded to 84006960)

$256.99

$

Usually ships in 2-12 days

0

0025

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0050

Ferris 5102868

BOLT, CRANKSHAFT, 7/16-20 X 3-3/4, GD8

$

$

Currently unavailable

0060

Ferris 80093428AA

BRKT, CLUTCH ANCHOR (BLACK)
(Superseded to 84007267)

$21.99

$

Usually ships in 2-12 days

0

0061

Ferris 80093429

PAD, CLUTCH ANCHOR
(Superseded to 84007268)

$6.49

$

Usually ships in 2-12 days

0

0062

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0064

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0065

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

0080

Ferris 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 1758352

MUFFLER, ZT (KAWI FR651/691/730)
(Superseded to 1758352YP)

$214.99

$

Usually ships in 2-12 days

0

0120

Ferris 80096582AA

SHIELD, HEAT (BLACK)
(Superseded to 84006923)

$139.99

$

Usually ships in 2-12 days

0

0150

Ferris 80004565

BOLT,5/16-18X1.000,SHORT NECK CRRG,ZC/CL
(Superseded to 703800)

$3.99

$

In Stock, Qty 10

0

0160

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5050831X35

1/4" Fuel Line, 35" Long
(Superseded to 5050831X35SM)

$18.99

$

Usually ships in 2-12 days

0

0180

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, only 4 left!

0

0190

Ferris 1759205

CONTROL, THROTTLE-THROTTLE ONLY (40.0LG)
(Superseded to 1759205YP)

$43.99

$

In Stock, only 1 left!

0

0200

Ferris 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

$40.99

$

Usually ships in 2-12 days

0

0205

Ferris 80005209

WSHR,3/8EXT TOOTH LOCK,TYPE A,ZINC/CLR
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0206

Ferris 80004865

NUT, 3/8-24, HEX, GR 5, ZINC/CLEAR
(Superseded to 703895)

$4.49

$

In Stock, Qty 6

0

0210

Ferris 1739312

KNOB, Throttle
(Superseded to 1739312YP)

$11.99

$

Usually ships in 2-12 days

0

0220

Ferris 36917

SCREW, Pan Head Machine - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

0230

Ferris 80004411

NUT #8-32 HEX ZINC/CLEAR
(Superseded to 703460)

$3.99

$

In Stock, Qty 11

0

0240

Ferris 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

0250

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0280

Ferris 80095386AA

PANEL, CONTROL (BLACK)
(Superseded to 84006920)

$24.99

$

Usually ships in 2-12 days

0

0290

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0310

Ferris 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

0320

Ferris 80005611

SCREW, Hex Head, M8 X 20

$

$

Currently unavailable

0330

Ferris 80003618

WSHR 5/16EXT TOOTH LOCK TYPE A ZINC/CLR
(Superseded to 703138)

$3.99

$

In Stock, Qty 10

0

0370

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0380

Ferris 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

$18.99

$

Usually ships in 2-12 days

0
