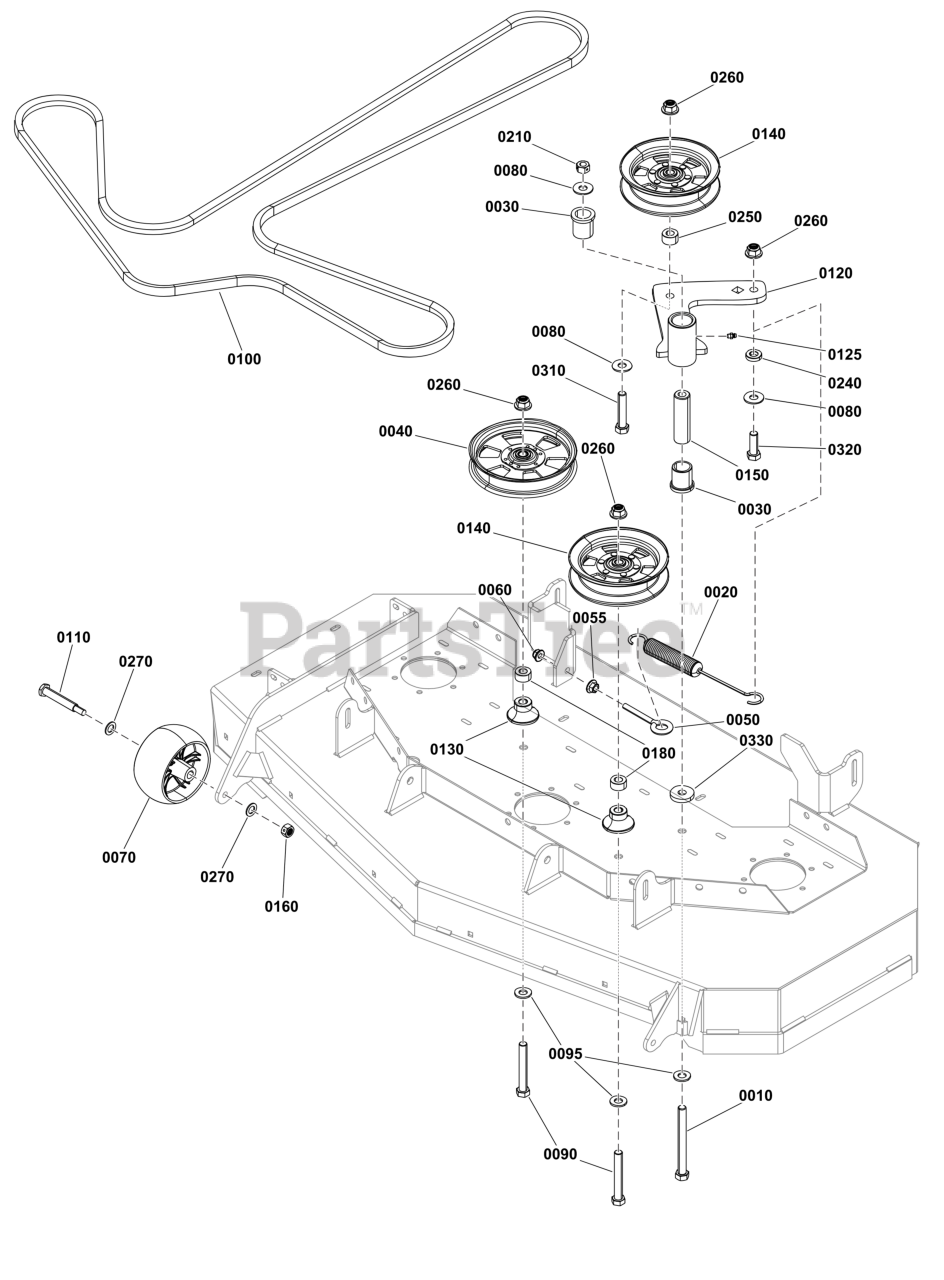

500S (5902171) - Ferris 500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton 122 cm Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

122 cm Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

  • Title

0010

Ferris 5025017X40SM

BOLT, 1/2-13 X 5" GD5

$6.49

$

In Stock, Qty 20+

0

0020

Ferris 5023340SM

SPRING, EXTENSION, SW

$36.99

$

Usually ships in 2-12 days

0

0030

Ferris 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 15

0

0040

Ferris 5104717YP

PULLEY

$58.99

$

Usually ships in 2-12 days

0

0050

Ferris 5023497SM

EYE BOLT, 3/8-16 X 5"

$9.49

$

In Stock, only 1 left!

0

0055

Ferris 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, Qty 20+

0

0060

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

0080

Ferris 703451

WASHER, FLAT

$

$

Currently unavailable

0090

Ferris 5025017X28SM

BOLT, 1/2-13 X 3-1/2"

$5.99

$

In Stock, Qty 5

0

0095

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 20+

0

0100

Ferris 84007231

BELT

$123.99

$

Usually ships in 2-12 days

0

0110

Ferris 2108765SM

BOLT-WHEEL 3/8-16X2.7

$6.49

$

In Stock, Qty 20+

0

0120

Ferris 84007069

WELDMENT

$173.99

$

Usually ships in 2-12 days

0

0125

Ferris 5020095SM

GREASE FITTING, 1/4-2

$3.99

$

In Stock, only 1 left!

0

0130

Ferris 5103430YP

IDLER MNT

$10.99

$

Usually ships in 2-12 days

0

0140

Ferris 5104716YP

PULLEY, IDLER

$59.99

$

Usually ships in 2-12 days

0

0150

Ferris 5045022SM

SPACER, .52 X 1.00 X

$24.99

$

In Stock, only 4 left!

0

0160

Ferris 5025100SM

NUT, 3/8-16 HEX SIDE

$3.49

$

In Stock, Qty 5

0

0180

Ferris 84007079

SPACER

$5.49

$

Usually ships in 2-12 days

0

0210

Ferris 5025332SM

NUT - SIDE LOCK

$3.49

$

In Stock, Qty 5

0

0240

Ferris 5101376FS

SPACER

$4.49

$

Usually ships in 2-12 days

0

0250

Ferris 5045178SM

SPACER, .52 X 1.00 X

$7.49

$

In Stock, only 2 left!

0

0260

Ferris 770225

NUT

$3.49

$

In Stock, only 4 left!

0

0270

Ferris 703128

WASHER

$3.49

$

In Stock, Qty 20+

0

0310

Ferris 5025017X22SM

BOLT, 1/2-13 X 2-3/4"

$5.99

$

In Stock, Qty 5

0

0320

Ferris 703571

CAPSCREW, 1/2-13X1.5

$

$

Currently unavailable

0330

Ferris 5044913SM

WASHER, .53 X 1.50 X

$6.99

$

In Stock, Qty 10

0
