500S (5902171) - Ferris 500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Body and Fuel Tank Group Parts Diagram

500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

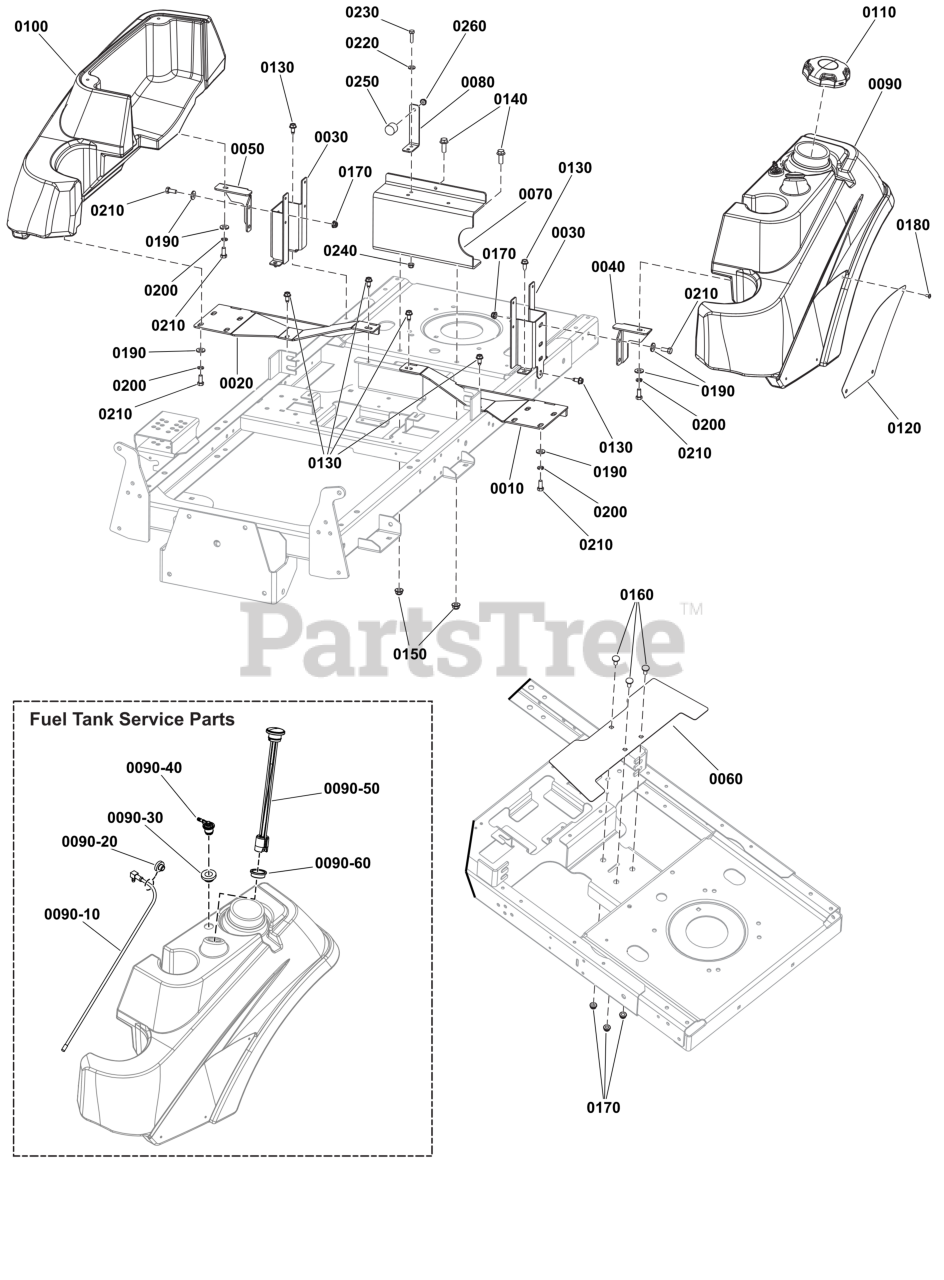

Body and Fuel Tank Group Parts Diagram

  • Title

0010

Ferris 84012331

PLATE, Mount, Left

$

$

Currently unavailable

0020

Ferris 84012330

PLATE, Mount, Right

$

$

Currently unavailable

0030

Ferris 5416652AAFS

MOUNT, TANK

$32.99

$

Usually ships in 2-12 days

0

0040

Ferris 84010858

PLATE

$

$

Currently unavailable

0050

Ferris 5421531AAFS

PLATE

$10.99

$

Usually ships in 2-12 days

0

0060

Ferris 84012335

PLATE, Guard

$

$

Currently unavailable

0070

Ferris 5416725AAFS

SEAT PLATE ASSEMBLY

$

$

Currently unavailable

0080

Ferris 84012340

PLATE, Retainer

$

$

Currently unavailable

0090

Ferris 5105496FS

TANK, Fuel

$379.99

$

Usually ships in 2-12 days

0

0090-10

Ferris 5101149SM

HOSE ASSEMBLY

$

$

Currently unavailable

0090-20

Ferris 1726400FS

BUSHING

$11.99

$

In Stock, Qty 15

0

0090-30

Ferris 799624

GROMMET

$9.49

$

In Stock, only 3 left!

0

0090-40

Ferris 770046

REMOTE VENT ASSEMBLY

$17.99

$

In Stock, only 2 left!

0

0090-50

Ferris 5022917SM

GAUGE, FUEL, 12

$

$

Currently unavailable

0090-60

Ferris 5022917X1SM

GROMMET, FUEL GAUGE

$7.49

$

In Stock, Qty 20+

0

0100

Ferris 5105497FS

FENDER, RIGHT

$168.99

$

Usually ships in 2-12 days

0

0110

Ferris 84005958

CAP, FUEL TANK

$41.99

$

In Stock, only 2 left!

0

0120

Ferris 5400250BFS

PLATE

$7.49

$

Usually ships in 2-12 days

0

0130

Ferris 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0140

Ferris 704038

SCREW

$6.49

$

In Stock, Qty 11

0

0150

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0160

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0170

Ferris 703115

NUT

$3.49

$

In Stock, Qty 19

0

0180

Ferris 5025386SM

SCREW, #10-24 X 3/8"

$3.99

$

In Stock, only 2 left!

0

0190

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$4.49

$

In Stock, Qty 11

0

0200

Ferris 5025170SM

WASHER, 5/16" LOCK

$4.49

$

In Stock, only 1 left!

0

0210

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 2 left!

0

0220

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0230

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 16

0

0240

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 7

0

0250

Ferris 5022673SM

BUMPER, RUBBER 1/4-20

$20.99

$

In Stock, only 1 left!

0

0260

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0
