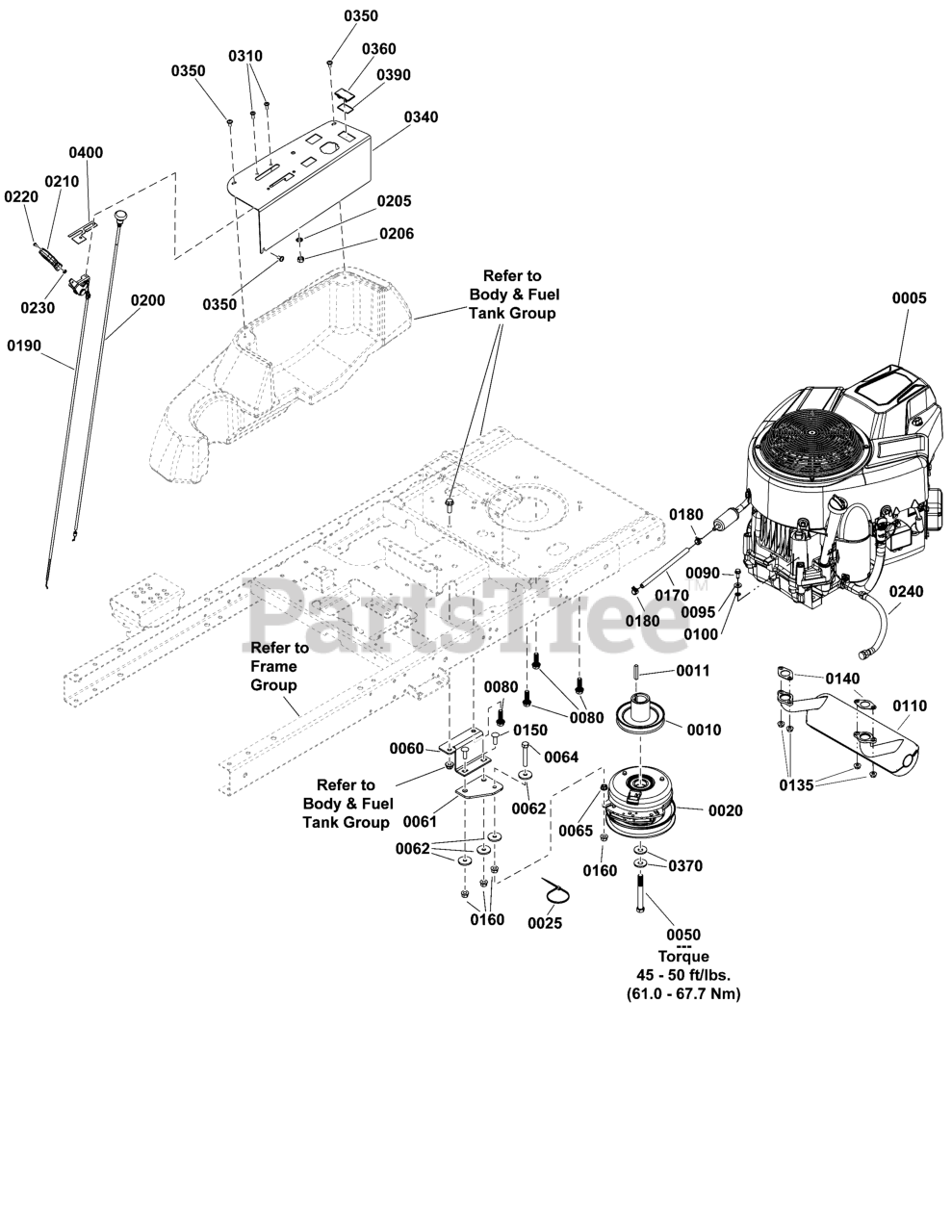

500S (5902171) - Ferris 500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Engine and PTO Group Parts Diagram

500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

Engine and PTO Group Parts Diagram

  • Title

0005

Engine, Briggs & Stratton CXi

Note: (Engine Model: 44T977-0054-G1)(Refer to Note: *)

$

$

Not available

0010

Ferris 84007555

PULLEY, CRANKSHAFT

$61.99

$

Usually ships in 2-12 days

0

0011

Ferris 5022726YP

KEY 1/4 SQ X 1 1/2

$5.49

$

In Stock, Qty 8

0

0020

Ferris 84006960

CLUTCH

$271.99

$

Usually ships in 2-12 days

0

0025

Ferris 5021030SM

TIE WRAP, 5-1/2" LONG

$2.99

$

In Stock, only 2 left!

0

0050

Ferris 84007266

BOLT

$

$

Currently unavailable

0060

Ferris 84007267

BRACKET

$22.99

$

Usually ships in 2-12 days

0

0061

Ferris 84007268

PAD

$6.99

$

Usually ships in 2-12 days

0

0062

Ferris 5044617SM

WASHER, .34 X 1.25 X

$8.49

$

Usually ships in 2-12 days

0

0064

Ferris 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$4.49

$

Usually ships in 2-12 days

0

0065

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, only 3 left!

0

0080

Ferris 75246GS

TAPTITE

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 14

0

0095

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 1921880FS

WASHER
(Superseded to 1921880SM)

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 84008807

MUFFLER ASSEMBLY

$

$

Currently unavailable

0135

Ferris 690941

NUT

$5.49

$

In Stock, Qty 7

0

0140

Ferris 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Ferris 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 20+

0

0160

Ferris 703115

NUT

$3.49

$

In Stock, Qty 19

0

0170

Ferris 5050831X25SM

HOSE 1/4 FUEL - 25

$21.99

$

Usually ships in 2-12 days

0

0180

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 1759205YP

CONTROL-THROTTLE

$45.99

$

In Stock, only 2 left!

0

0200

Ferris 5100184SM

CABLE, CHOKE CONTROL,

$43.99

$

In Stock, only 2 left!

0

0205

Ferris 703864

WASHER, EXT, 3/8

$4.49

$

Usually ships in 2-12 days

0

0206

Ferris 703895

NUT, HEX, 3/8-24

$4.49

$

In Stock, Qty 20+

0

0210

Ferris 1739312YP

KNOB, THROTTLE

$11.99

$

Usually ships in 2-12 days

0

0220

Ferris 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Ferris 703460

NUT, Hex #8-32

$3.99

$

In Stock, Qty 7

0

0240

Ferris 1726498SM

HOSE-OIL DRAIN .375ID

$28.99

$

Usually ships in 2-12 days

0

0310

Ferris 7090999FS

SCREW

$4.49

$

Usually ships in 2-12 days

0

0340

Ferris 84012328

PLATE, Control Panel

$

$

Currently unavailable

0350

Ferris 84002228

SCREW, FLANGE

$2.99

$

In Stock, only 2 left!

0

0360

Ferris 1722611SM

PLUG-HOLE BLACK

$6.99

$

Usually ships in 2-12 days

0

0370

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, Qty 6

0

0390

Ferris 5022269SM

O-RING, 7/8" ID X 1/1

$3.49

$

Usually ships in 2-12 days

0

0400

Ferris 5412643FS

PLATE, Throttle Stop

$2.49

$

Usually ships in 2-12 days

0
