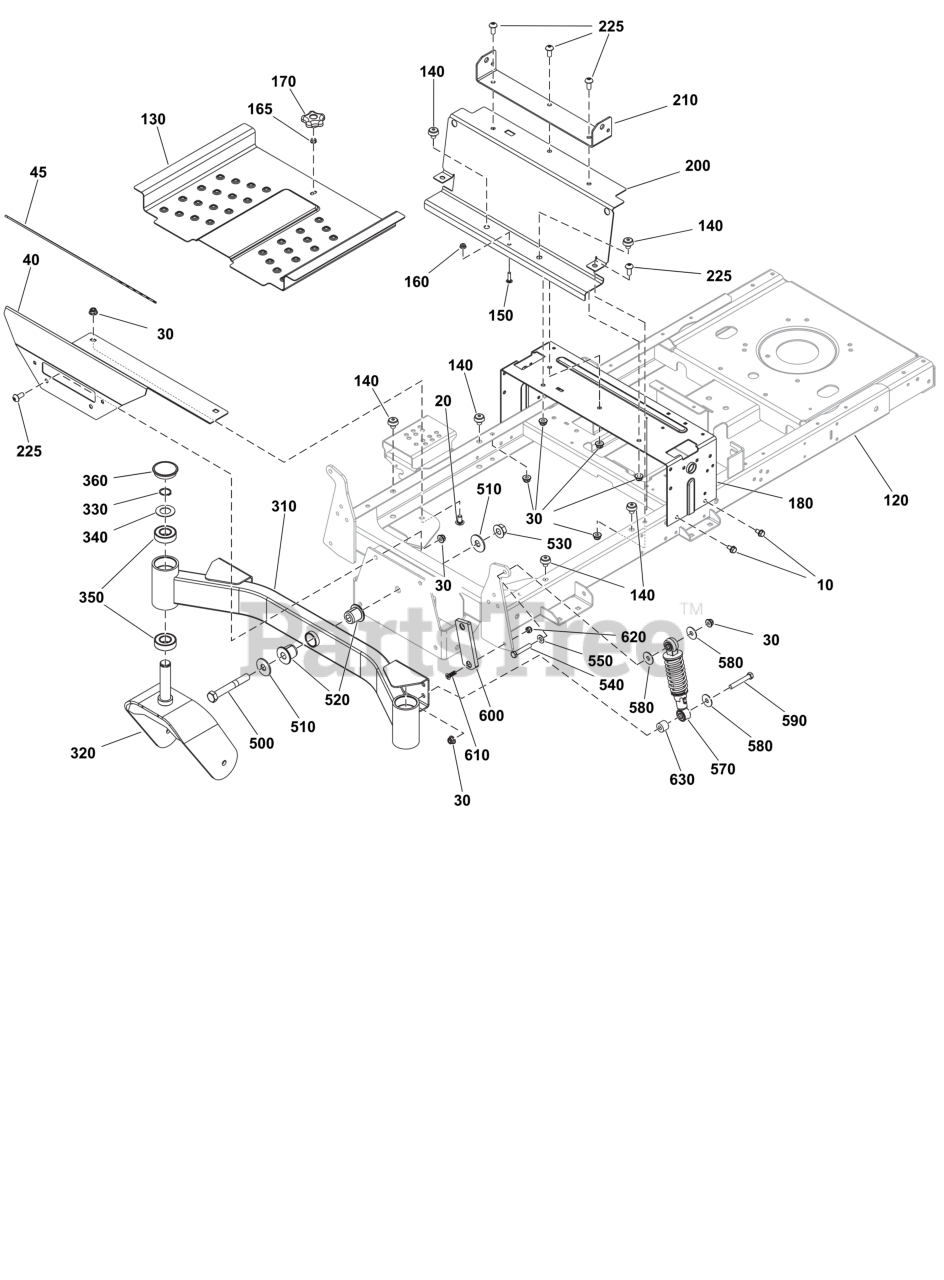

500S (5902171) - Ferris 500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton Frame, Pivoting Front Axle, and Floor Pan Group Parts Diagram

500S Series 48" Zero-Turn Mower, 25hp Briggs & Stratton

Frame, Pivoting Front Axle, and Floor Pan Group Parts Diagram

  • Title

10

Ferris 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 16

0

20

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

30

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

40

Ferris 80096035BFS

FOOTREST, FRONT

$116.99

$

Usually ships in 2-12 days

0

45

Ferris 5101011SM

SAFETY WALK, 8.00 X 1

$21.99

$

Usually ships in 2-12 days

0

120

WELDMENT, ZT XT FRAME-FULL SUSP(FER R)

Note: ( Not a serviceable part )

$

$

Not available

130

Ferris 1757813BYP

PAN, Foot

$100.99

$

Usually ships in 2-12 days

0

130

Ferris 5601199

FOOT PAN W/DECAL, EXPORT 2019 (1757813B)

$

$

Currently unavailable

140

Ferris 197546GS

MOUNT-VIBRATION

$8.49

$

In Stock, Qty 5

0

150

Ferris 7090496YP

RHSSNB, 1/4C X1 GR5 Z

$3.49

$

Usually ships in 2-12 days

0

160

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

165

Ferris 15X143MA

NUT,25-20 HEX FLG CTR

$5.49

$

In Stock, Qty 13

0

170

Ferris 707785

KNOB

$6.49

$

In Stock, Qty 9

0

180

Ferris 80096436BFS

BRACKET, CONTROL

$109.99

$

Usually ships in 2-12 days

0

200

Ferris 1757796BYP

PLATE-DECAL

$114.99

$

Usually ships in 2-12 days

0

210

Ferris 5416789BFS

PIVOT

$27.99

$

Usually ships in 2-12 days

0

225

Ferris 84004627

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

310

Ferris 80096786BFS

PIVOT

$360.99

$

Usually ships in 2-12 days

0

320

Ferris 84007952

YOKE, Caster

$202.99

$

Usually ships in 2-12 days

0

330

Ferris 703993

RETAINER, EXT RING, 1

$3.49

$

In Stock, Qty 20+

0

340

Ferris 703199

WASHER, 1

$4.99

$

In Stock, Qty 8

0

350

Ferris 1758354YP

BEARING

$10.99

$

In Stock, Qty 5

0

360

Ferris 5109884FS

CAP

$8.49

$

In Stock, only 2 left!

0

500

Ferris 707789

BOLT

$5.99

$

Usually ships in 2-12 days

0

510

Ferris 1960035SM

WASHER-0.625(0.64IDX1

$4.49

$

In Stock, Qty 11

0

520

Ferris 1759234YP

BUSHING

$9.49

$

Usually ships in 2-12 days

0

530

Ferris 84003031

NUT

$3.49

$

Usually ships in 2-12 days

0

540

Ferris 703589

CAPSCREW, 3/8-16X2

$4.49

$

In Stock, Qty 20+

0

550

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

570

Ferris 84011452

ABSORBER, Shock

$

$

Currently unavailable

580

Ferris 5025165SM

WASHER, 3/8" FENDER

$4.49

$

In Stock, Qty 16

0

590

Ferris 84007037

BOLT

$2.99

$

In Stock, only 3 left!

0

600

Ferris 1759391YP

PAD-FRICTION

$14.99

$

In Stock, only 1 left!

0

610

Ferris 5025594YP

SCREW, 5/16-18 X 1

$4.49

$

Usually ships in 2-12 days

0

620

Ferris 5025057FS

NUT

$3.99

$

Usually ships in 2-12 days

0

630

Ferris 1667812SM

SPACER

$5.99

$

In Stock, Qty 20+

0
