500Z (B 2648) (5900731) - Snapper 48" Zero-Turn Mower, 26hp Deck Lift Group (S/N: 2015070191 & Below) Parts Diagram

48" Zero-Turn Mower, 26hp

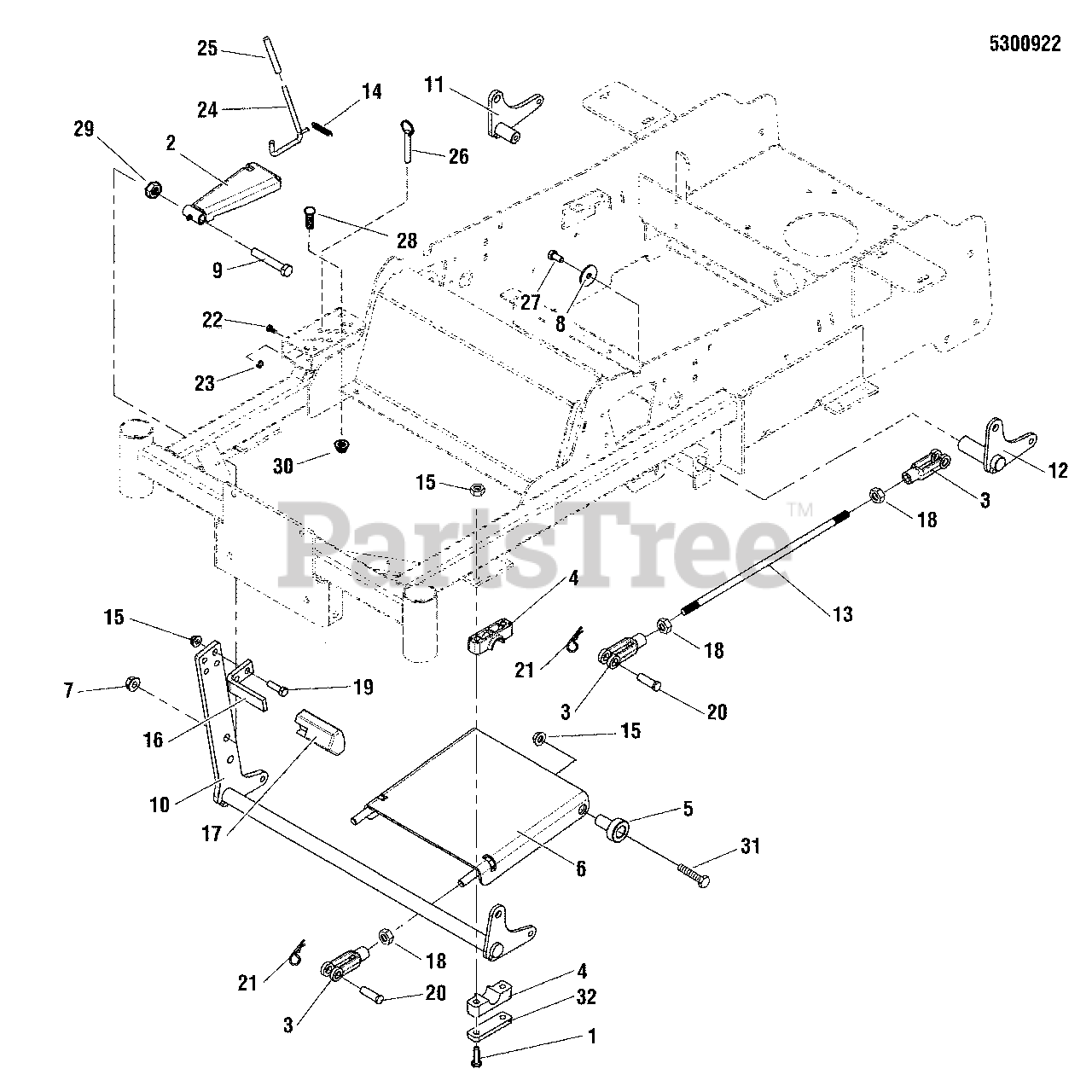

Deck Lift Group (S/N: 2015070191 & Below) Parts Diagram

  • Title

1

Snapper 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 5403016D

WELD, DECK HEIGHT ADJUSTMENT - RED
(Superseded to 5403016DYP)

$82.99

$

Usually ships in 2-12 days

0

3

Snapper 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 5023257

BUSHING, .38 X .88 X .73
(Superseded to 5023257YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 5402970D

WELD, PULLER BAR - RED
(Superseded to 5402970DYP)

$128.99

$

Usually ships in 2-12 days

0

7

Snapper 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

8

Snapper 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

10

Snapper 5402900D

WELD, FRONT DECK PIVOT - RED
(Superseded to 5402900DYP)

$145.99

$

Usually ships in 2-12 days

0

11

Snapper 5402956D

WELD, PIVOT DECK LIFT, RH - RED
(Superseded to 5402956A)

$50.99

$

Usually ships in 2-12 days

0

12

Snapper 5402957D

WELD, PIVOT, DECK LIFT, LH - RED
(Superseded to 5402957A)

$51.99

$

Usually ships in 2-12 days

0

13

Snapper 5101117

ROD, DECK LIFT, SNAPPER PRO
(Superseded to 5101117YP)

$14.99

$

Usually ships in 2-12 days

0

14

Snapper 5022967

SPRING, RETURN
(Superseded to 5022967SM)

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

16

Snapper 5061569D

PEDAL, FOOT - RED
(Superseded to 5061569A)

$40.99

$

Usually ships in 2-12 days

0

17

Snapper 1715834

RUBBER, FOOT PEDAL
(Superseded to 5104262)

$10.99

$

Usually ships in 2-12 days

0

18

Snapper 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

20

Snapper 5025479

PIN, CLEVIS, 1/2 X 1.36" SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, Qty 12

0

21

Snapper 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

22

Snapper 5025010X5

BOLT, 1/4-20 X 5/8", GD5 YZ
(Superseded to 5025010X5SM)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5403815D

WELD, DECK TRANSPORT LEVER - RED
(Superseded to 5403815DYP)

$16.99

$

Usually ships in 2-12 days

0

25

Snapper 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 5101279

HITCH PIN, 3/8 X 2-1/2
(Superseded to 5101407)

$16.99

$

Usually ships in 2-12 days

0

27

Snapper 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 5025146X14

BOLT, 3/8-16 X 1-3/4", CARRIAGE
(Superseded to 5025146X14YP)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

31

Snapper 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 5403925D

PLATE, PIVOT BLOCK SUPPORT - RED
(Superseded to 5403925AYP)

$8.49

$

Usually ships in 2-12 days

0
