501 (590-501-100) - Cub Cadet Grass Catcher Support Tubes And Blades Parts Diagram

Grass Catcher

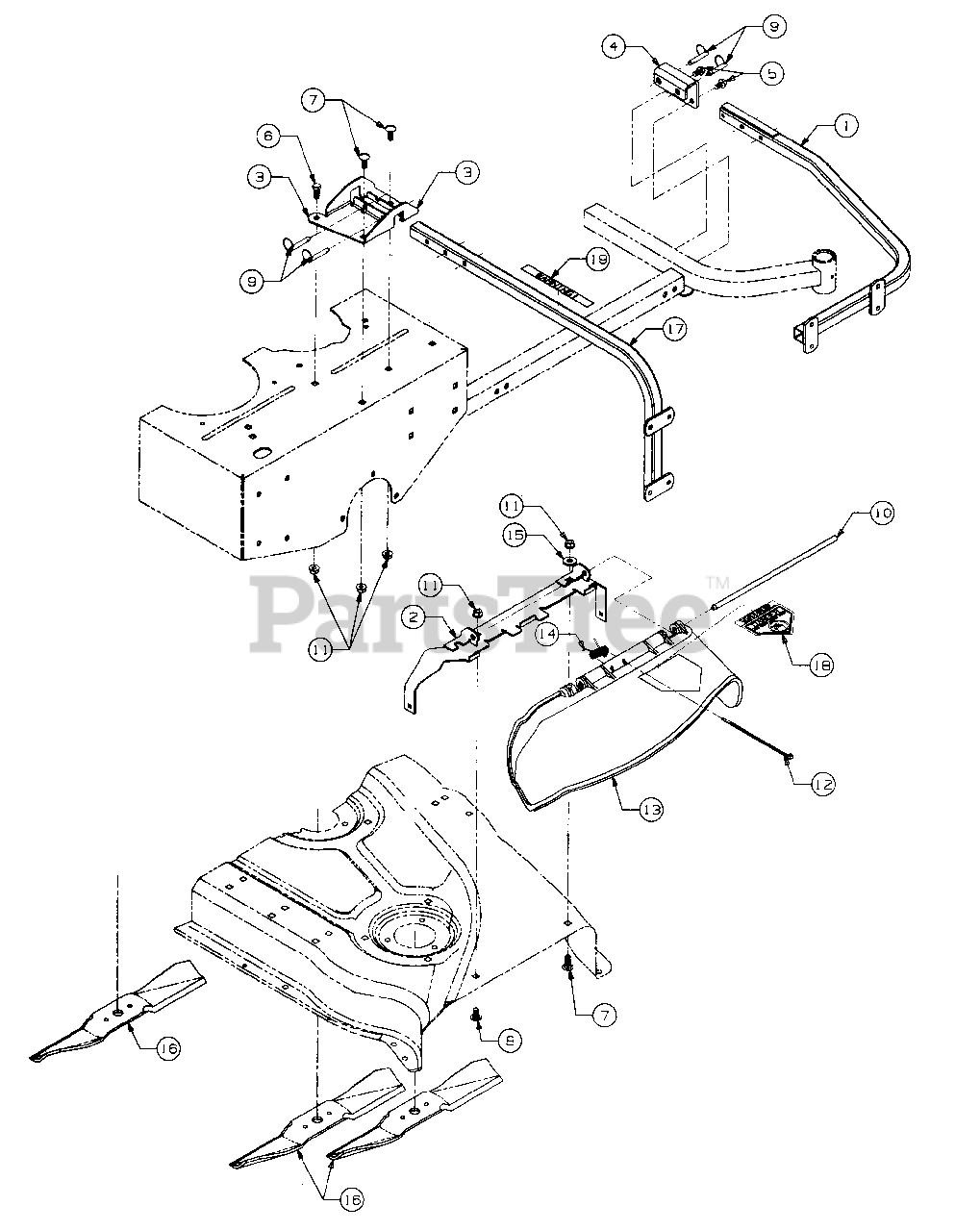

Support Tubes And Blades Parts Diagram

  • Title

1

Cub Cadet 603-0177

Tube, Front Support

$

$

Currently unavailable

2

Cub Cadet 603-0261

Bracket, Chute Mounting

Variations

Cub Cadet 603-0261-0498

CHUTE BRACKET MTG.(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 603-0295

Bracket, Rear Support Mtg

Variations

Cub Cadet 603-0295-0498

REAR BRACKET MTG (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 703-2458

Bracket, Front Support Mtg

$

$

Not available

5

Cub Cadet 710-0604

Screw, Hex Wash TT-Tapp, 5/16-18 X .62 Lg
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .875 Lg GR5

$6.99

$

In Stock, Qty 13

0

7

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 711-3266

Pin, Clevis w/Detent Ball

$13.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-3318

Pin, Hinge, .375 Dia X 12.55 Lg

$

$

Not available

11

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.49

$

In Stock, only 4 left!

0

13

Cub Cadet 731-3131

Deflector, Chute
(Superseded to 931-3131A)

$100.99

$

In Stock, Qty 11

0

14

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$10.99

$

In Stock, Qty 5

0

15

Cub Cadet 736-0206

Washer, Special, .378 X 1.00 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 742-3025

Blade, Mower, 16.5 Lg (48" Deck)
(Superseded to 759-3826)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 742-3013

Blade, Mower, 18.5 Lg (54" Deck)
(Superseded to 759-3820)

Variations

Cub Cadet 742-3013-0637

Mower Blade, 18.50" Lg Hi-Lift - POWDER BLACK (0637)

$35.99

$

In Stock, Qty 20+

0

$35.99

$

In Stock, Qty 20+

0

17

Cub Cadet 759-3762

Tube, Rear Support w/Graphic

$

$

Currently unavailable

18

Cub Cadet 777-1584

Label, Danger
(Superseded to 977S30145)

$9.49

$

In Stock, only 1 left!

0

19

Cub Cadet 777-2535

Graphic, Catcher Warning

$

$

Not available
