5010 (1690007) - Simplicity Broadmoor Lawn Tractor, 10hp Electrical Group Parts Diagram

Broadmoor Lawn Tractor, 10hp

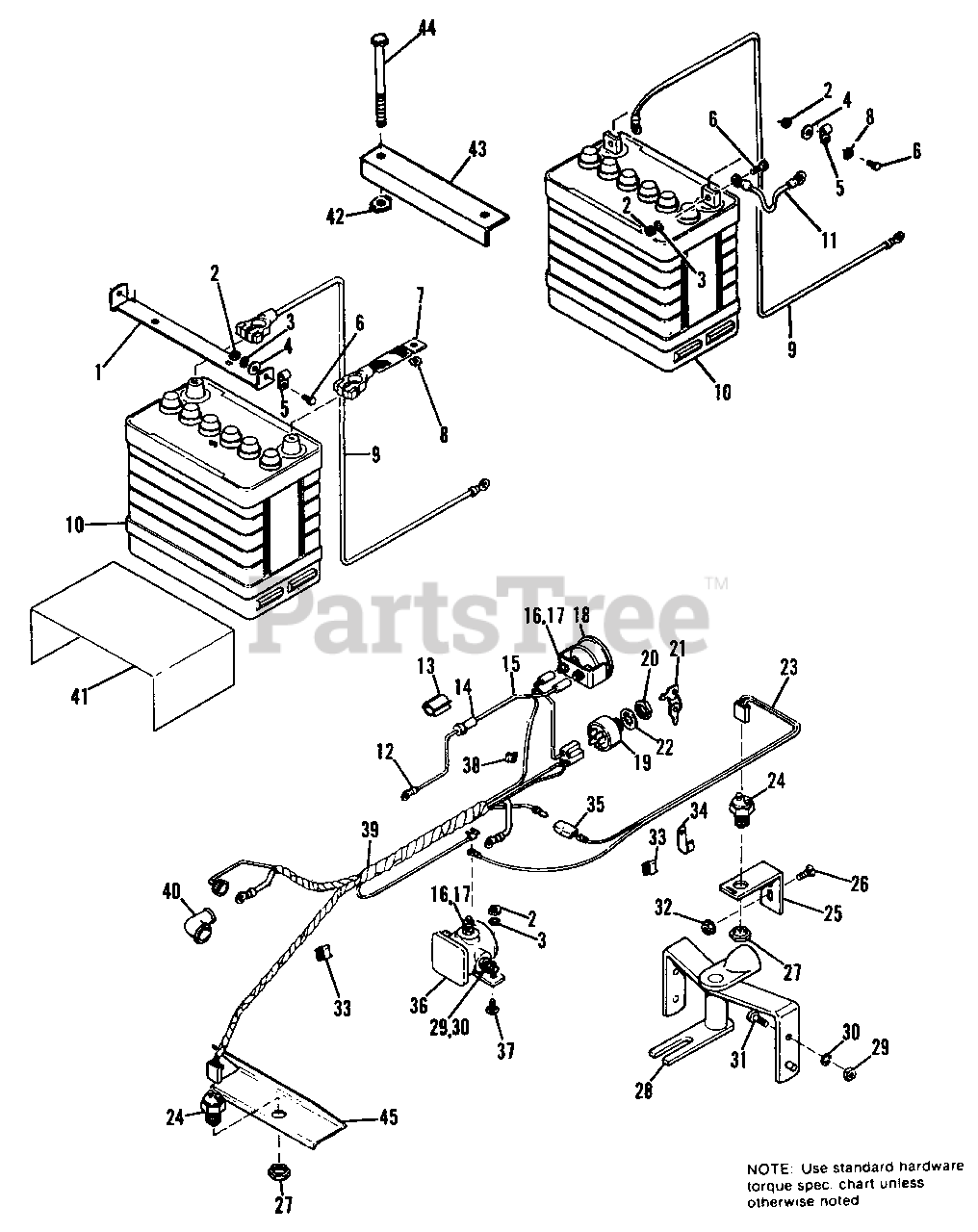

Electrical Group Parts Diagram

  • Title

1

Simplicity 1651122

HOLD DOWN Battery (1690020 & 1690106 Only)

$

$

Not available

2

Simplicity 2816622SM

NUT, Hex, 1/4 (Qty. 4 on 1690020, 1690106)
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

3

Simplicity 2816964SM

LOCKWASHER 1/4 (Qty. 4 on 1690020, 1690106)
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 2816964SM

LOCKWASHER 1/4 (Qty. 4 on 1690020, 1690106)
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 2817377

WASHER, Plain 1/4 (Qty. 1 on 1690019 Only)

$

$

Not available

5

Simplicity 158476

CLAMP

$

$

Not available

7

Simplicity 122130

CABLE, Battery to Ground (1690020 & 1690106)

$

$

Not available

8

Simplicity 909367

LOCKWASHER, Int., 1/4

$

$

Not available

9

Simplicity 1603197SM

CABLE, Battery to Solenoid (1690020 & 1690106)

$24.99

$

Usually ships in 2-12 days

0

9

Simplicity 1707056SM

CABLE, Battery to Solenoid

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1685058SM

BATTERY KIT (1690020 & 1690106 Only)

$

$

Not available

10

Simplicity 1685215SM

BATTERY KIT

$

$

Not available

11

Simplicity 2122213

CABLE (1690019 Only)

$

$

Not available

12

Simplicity 122207

WIRE, Solenoid to Negative

$1.99

$

Usually ships in 2-12 days

0

13

Simplicity 122183

CLIP, Fuse

$

$

Not available

14

Simplicity 172410

FUSE, 7-1/2 amp

$

$

Not available

15

Simplicity 1651826

WIRE, Negative Ammeter to Solenoid

$

$

Not available

16

Simplicity 2822711

LOCKWASHER, #10

$

$

Not available

17

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

18

Simplicity 1603189SM

AMMETER

$33.99

$

Usually ships in 2-12 days

0

19

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0

20

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 14

0

22

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

23

Simplicity 122217

WIRE, Safety Swtich

$

$

Not available

24

Simplicity 2177522SM

SWITCH, Safety

$49.99

$

In Stock, Qty 10

0

25

Simplicity 178428

BRACKET

$

$

Not available

26

Simplicity 2830517

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

27

Simplicity 1930647

NUT, Pal, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 170172

PIVOT ASSY.

$

$

Not available

29

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

32

Simplicity 2830641

LOCKNUT, Flange, 1/4-20

$

$

Not available

33

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

34

Simplicity 1606820

J-CUP, Open

$

$

Not available

35

Simplicity 172100

CONNECTOR, Insulator

$

$

Not available

36

Simplicity 2122216SM

SOLENOID

$

$

Not available

37

Simplicity 2823333

BOLT, Carriage, 1/4-20 x 5/8

$

$

Not available

38

Simplicity 2172434SM

CLIP, Cable

$4.99

$

In Stock, only 2 left!

0

39

Simplicity 1651085

HARNESS ASSY.

$

$

Not available

40

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

41

Simplicity 122143

INSULATION, Battery

$

$

Not available

42

Simplicity 2826022

NUT Retainer 1/4-20 (1690019 Only)

$

$

Not available

43

Simplicity 170123

HOLD DOWN, Battery (1690019 Only)

$

$

Not available

44

Simplicity 2828634

CAPSCREW, Hex Hd., 1/4-20 x 7 (1690019 Only)

$

$

Not available

45

Simplicity 1651367

SHIELD, Heat (1690020 & 1690106 Only)

$

$

Not available
