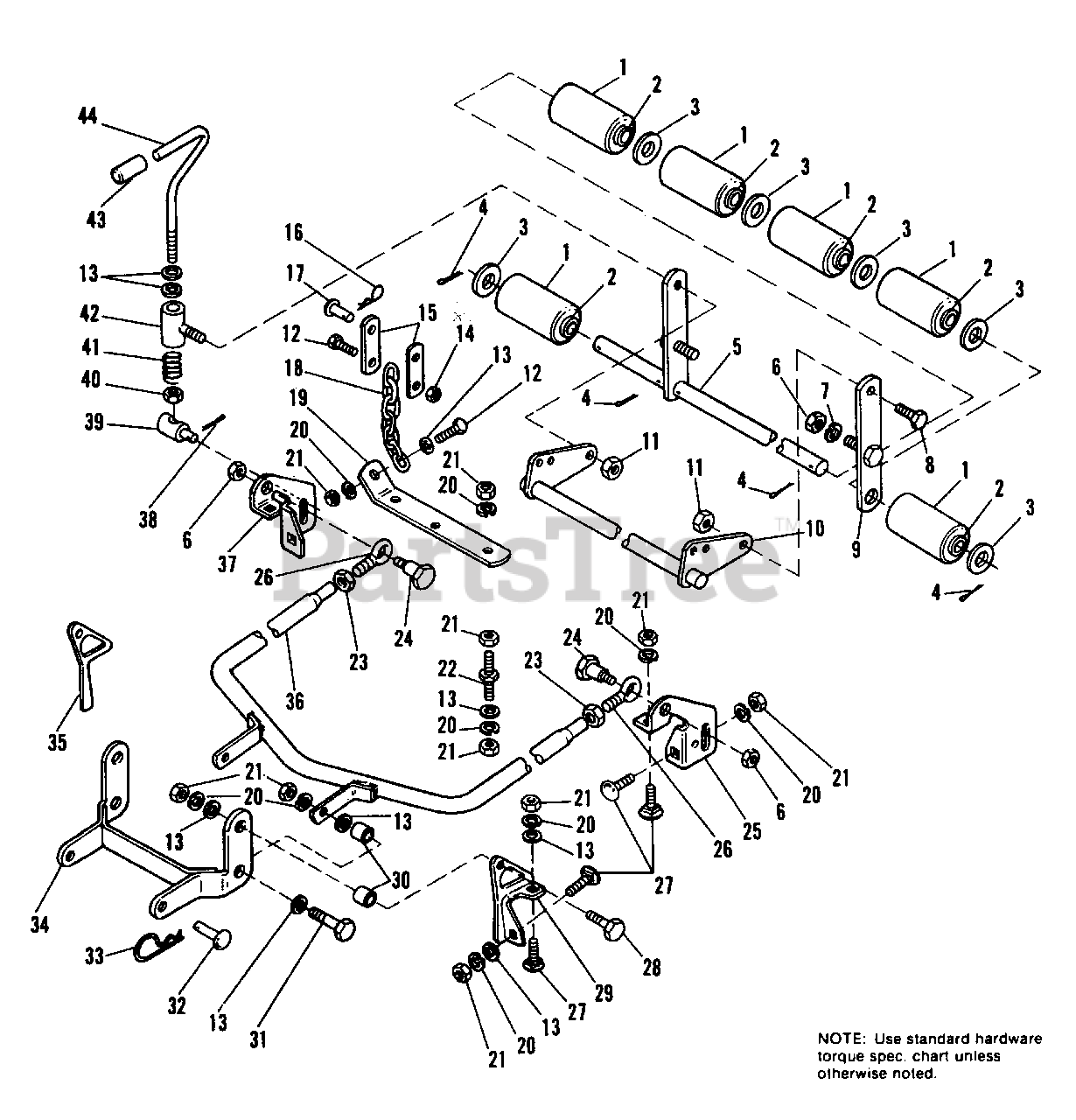

5010 (1690020) - Simplicity Broadmoor 36" Lawn Tractor, 10hp Roller & Hitch Group Parts Diagram

Broadmoor 36" Lawn Tractor, 10hp

Roller & Hitch Group Parts Diagram

  • Title

1

Simplicity 1668513SM

ROLLER ASSY., W/Bushing

$11.99

$

In Stock, Qty 20+

0

2

Simplicity 2108419

BUSHING

$

$

Not available

3

Simplicity 2116001

WASHER

$

$

Not available

4

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

5

Simplicity 2170282SM

ROLLER BAR & SHAFT ASSY.
(Superseded to 2170282ASM)

$193.99

$

Usually ships in 2-12 days

0

6

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

8

Simplicity 2825204

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

9

Simplicity 2108256

BAR ASSY., Roller

$

$

Not available

10

Simplicity 1651314

LEVER ASSY., Rear

$

$

Not available

11

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

12

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

13

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

15

Simplicity 108199

LINK, Mower Lift

$

$

Not available

16

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 7

0

17

Simplicity 1708298SM

PIN

$

$

Not available

18

Simplicity 2107031SM

CHAIN
(Superseded to 2107031ASM)

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 108375

BAR, Lift

$

$

Not available

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

21

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 2108372SM

STUD

$64.99

$

Usually ships in 2-12 days

0

23

Simplicity 2819262

LOCKNUT, Hex, Jam, 1/2-20

$

$

Not available

24

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

25

Simplicity 108488

BRACKET, Rear, L.H.

$

$

Not available

26

Simplicity 2157215SM

EYEBOLT

$

$

Not available

27

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

28

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

29

Simplicity 108483

BRACKET, Front, L.H.

$

$

Not available

30

Simplicity 2153073

SPACER

$

$

Not available

31

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 7

0

32

Simplicity 2156306SM

PIN

$7.99

$

In Stock, only 2 left!

0

33

Simplicity 2176012SM

CLIP, Safety Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 12

0

34

Simplicity 108796

ARM ASSY., Rocker

$

$

Not available

35

Simplicity 108484

BRACKET, Front, R.H.

$

$

Not available

36

Simplicity 1651977

BAIL ASSY.

$

$

Not available

37

Simplicity 108489

BRACKET, Rear, R.H.

$

$

Not available

38

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

39

Simplicity 108172

PIVOT

$

$

Not available

40

Simplicity 2817421

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

41

Simplicity 2108360SM

SPRING

$5.99

$

In Stock, Qty 10

0

42

Simplicity 2108166SM

SOCKET ASSY., Crank

$30.99

$

Usually ships in 2-12 days

0

43

Simplicity 1651820SM

GRIP, Handle
(Superseded to 5023198SM)

$4.99

$

In Stock, Qty 10

0

44

Simplicity 1650394SM

SCREW ASSY., Adjusting

$75.99

$

Usually ships in 2-12 days

0
