5010 LTD (1690118) - Simplicity Broadmoor 36" Lawn Tractor ELECTRICAL SYSTEM Parts Diagram

Broadmoor 36" Lawn Tractor

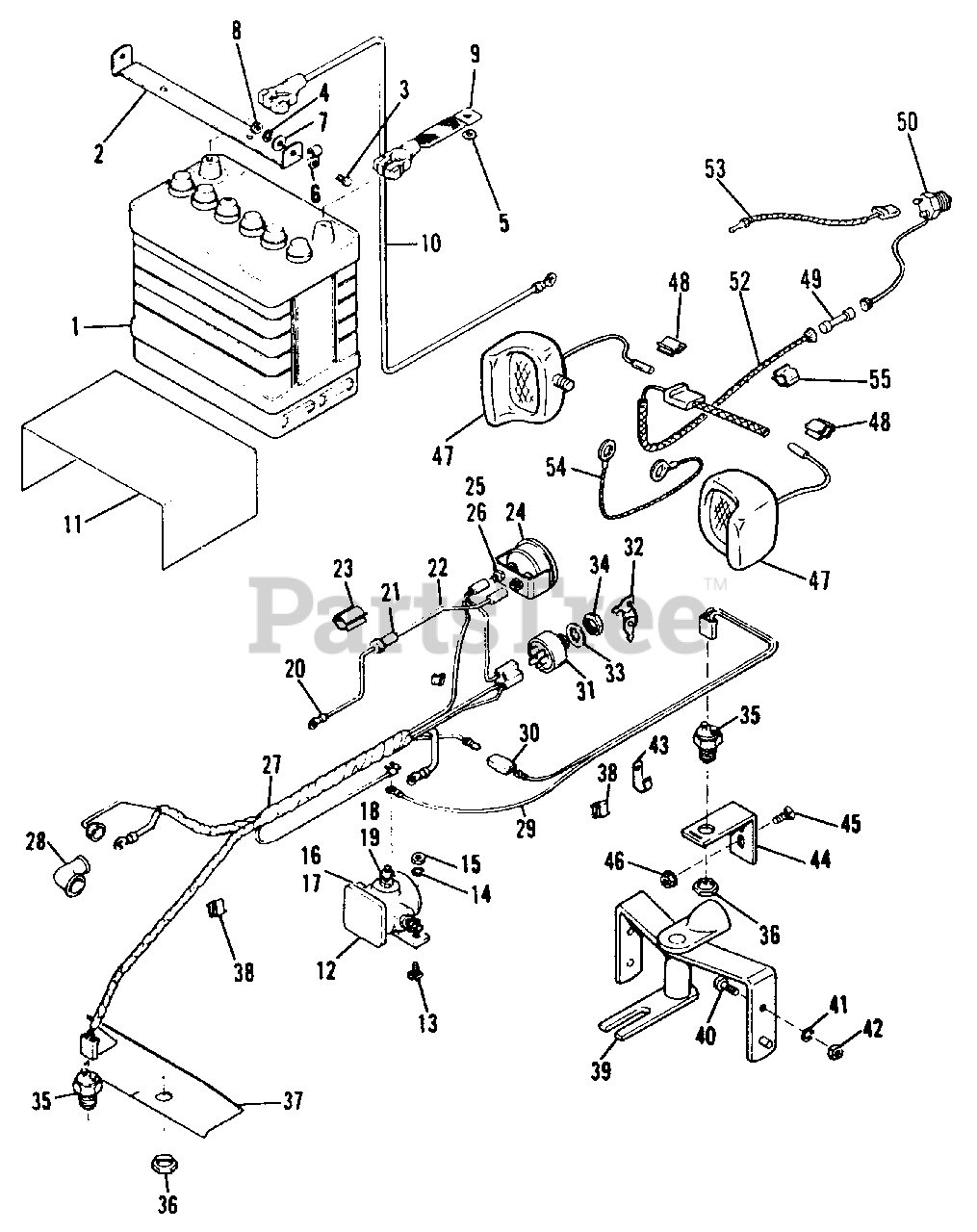

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Simplicity 1685058SM

Battery

$

$

Not available

2

Simplicity 1651122

Hold Down, Battery

$

$

Not available

3

Simplicity 2816019

Capscrew, Hex, 1/4"-20 x 3/4" lg.

$

$

Not available

4

Simplicity 2816964SM

Lockwasher, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 909367

Lockwasher, 1/4"

$

$

Not available

6

Simplicity 158476

Clamp

$

$

Not available

7

Simplicity 2817377

Washer, Plain, 1/4"

$

$

Not available

8

Simplicity 2816622SM

Nut, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

9

Simplicity 1601242

Cable, Battery to Ground

$

$

Not available

10

Simplicity 2171805

Cable, Battery to Solenoid

$

$

Not available

11

Simplicity 122143

Battery Insulation

$

$

Not available

12

Simplicity 2122216SM

Solenoid

$

$

Not available

13

Simplicity 2823333

Bolt, Carriage, 1/4"-20 x 5/8" lg.

$

$

Not available

14

Simplicity 2816964SM

Lockwasher, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 2816622SM

Nut, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

16

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2822711

Lockwasher, Shakeproof #10

$

$

Not available

19

Simplicity 2817415

Nut, Hex, Full, #10-32

$

$

Not available

20

Simplicity 122207

Wire, Solenoid to Neg.

$1.99

$

Usually ships in 2-12 days

0

21

Simplicity 172410

Fuse, 7-1/2 AMP

$

$

Not available

22

Simplicity 1651826

Wire, Neg. Ammeter to Solenoid

$

$

Not available

23

Simplicity 122183

Clip, Fuse

$

$

Not available

24

Simplicity 1603189SM

Ammeter

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 2822711

Lockwasher, Shakeproof, #10

$

$

Not available

26

Simplicity 2817415

Nut, Hex, Full, #10-32

$

$

Not available

27

Simplicity 1651085

Harness Assembly

$

$

Not available

28

Simplicity 2122023SM

Cover, Terminal

$5.99

$

In Stock, only 3 left!

0

29

Simplicity 122217

Wire, Safety Switch

$

$

Not available

30

Simplicity 172100

Insulated Connector

$

$

Not available

31

Simplicity 2178280SM

Switch, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0

32

Simplicity 1717163SM

Key & Ring Assembly

$8.99

$

In Stock, Qty 15

0

33

Simplicity 2818906

Lockwasher, Int. 5/8"

$

$

Not available

34

Simplicity 2122234SM

Nut, Hex, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 2177522SM

Switch, Safety

$49.99

$

In Stock, Qty 10

0

36

Simplicity 1930647

Nut, Pal, 9/16"-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1653240

Shield, Heat

$

$

Not available

38

Simplicity 2165073SM

Clip, Speed

$2.99

$

Usually ships in 2-12 days

0

39

Simplicity 1652319

Pivot Assembly

$

$

Not available

40

Simplicity 2817397

Capscrew, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

41

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

43

Simplicity 1606820

"J" Clip, Open

$

$

Not available

44

Simplicity 178428

Bracket

$

$

Not available

45

Simplicity 2830517

Bolt, Carriage, 1/4"-20 x 3/4" lg.

$

$

Not available

46

Simplicity 2830641

Nut, Flange, 1/4"-20

$

$

Not available

47

Simplicity 1653934

Drive Light Assembly

$

$

Not available

48

Simplicity 165074

Clip, Speed

$

$

Not available

49

Simplicity 122172

Fuse, 20 AMP

$

$

Not available

50

Simplicity 122211

Switch, Toggle

$

$

Not available

51

Simplicity 154247

Clamp

$

$

Not available

52

Simplicity 1651549

Wire

$

$

Not available

53

Simplicity 1651550

Wire, Lead

$

$

Not available

54

Simplicity 1651551

Wire

$

$

Not available

55

Simplicity 1651556

Clip, Wire

$

$

Not available
